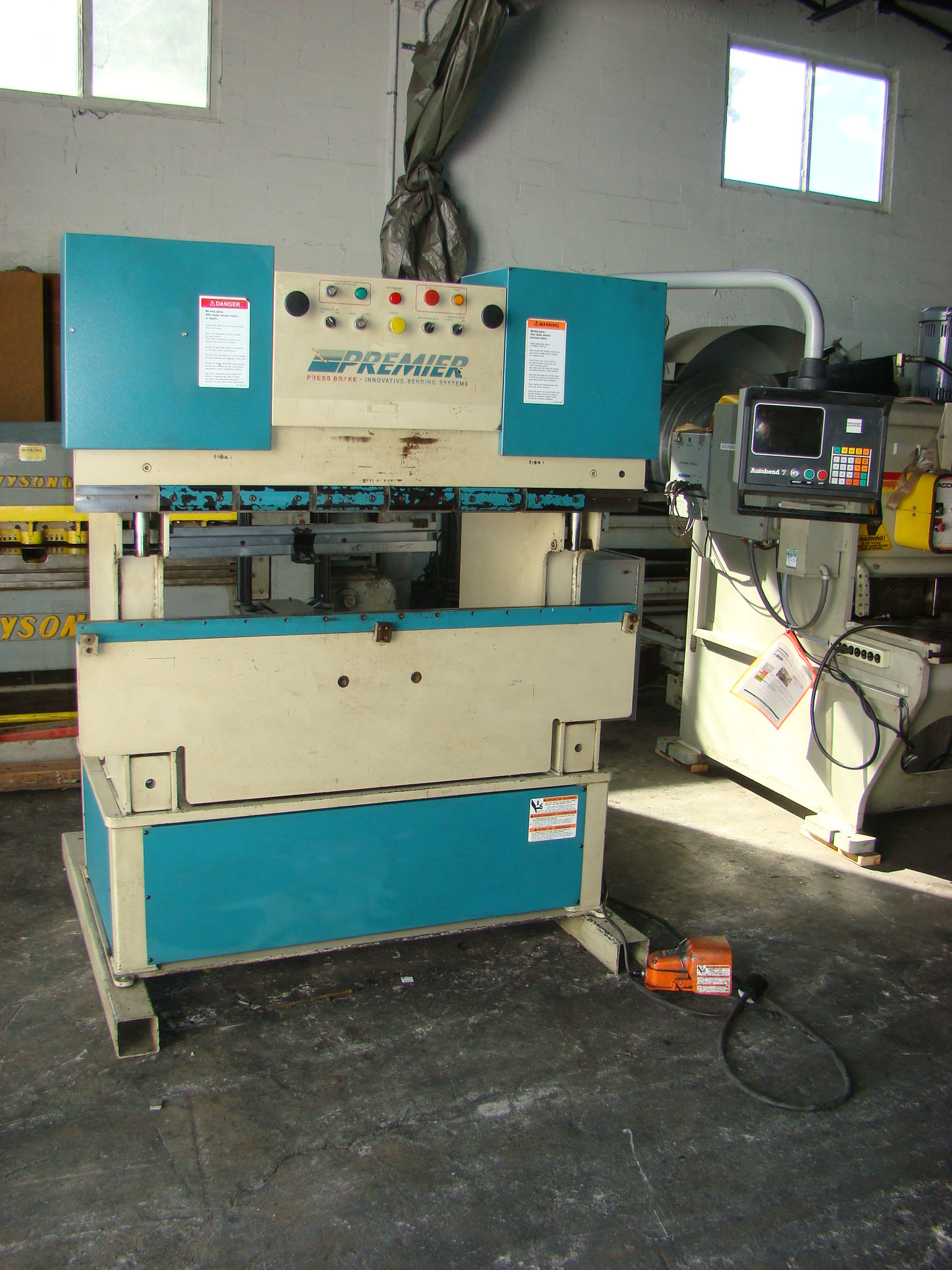

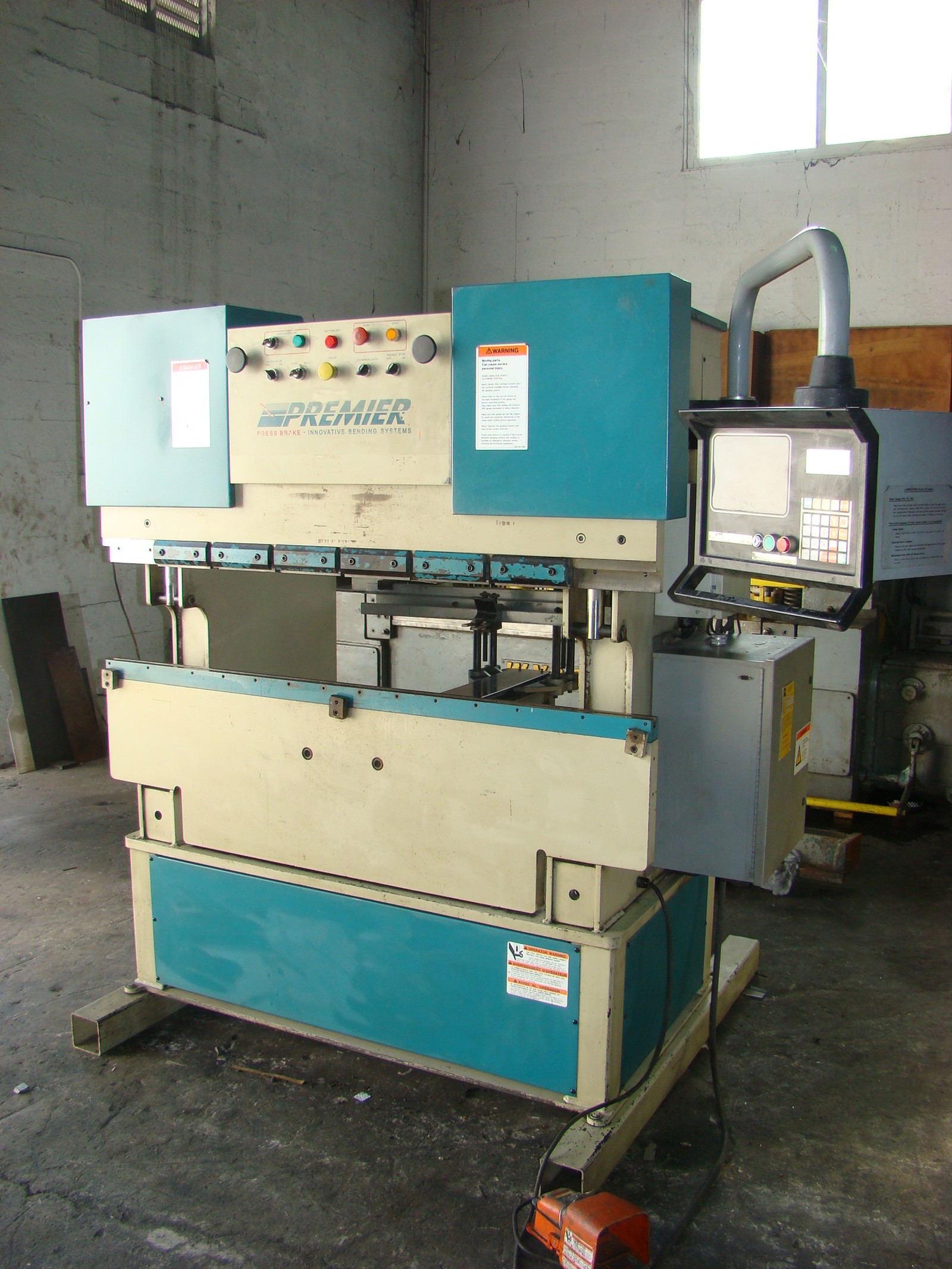

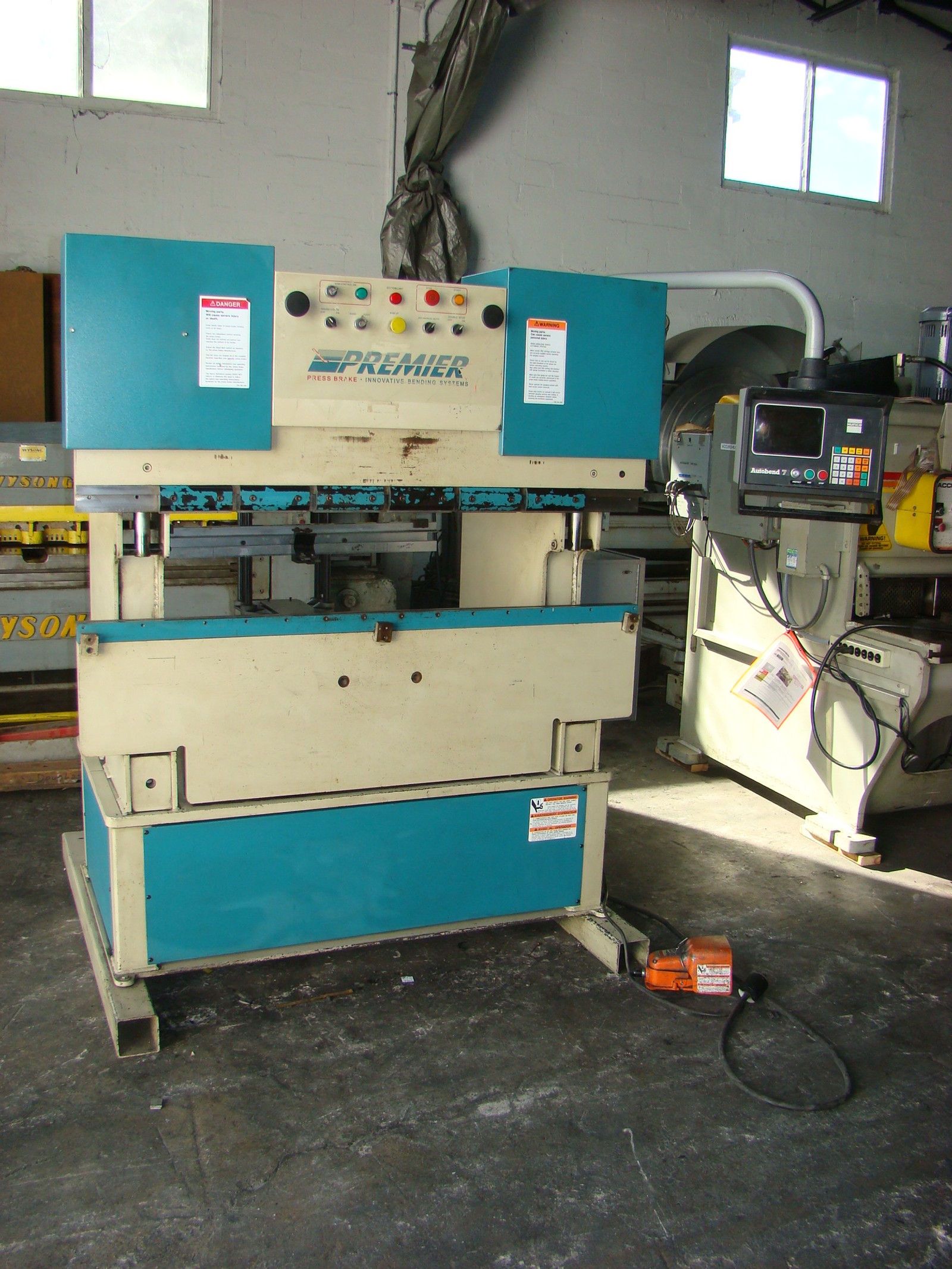

35 Ton Premier #535-2, 5' OA, 42" BH, 5" Str, Hurco 2-Axis BG, 1997 (6931)

Manufacturer

PREMIER

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

6931

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

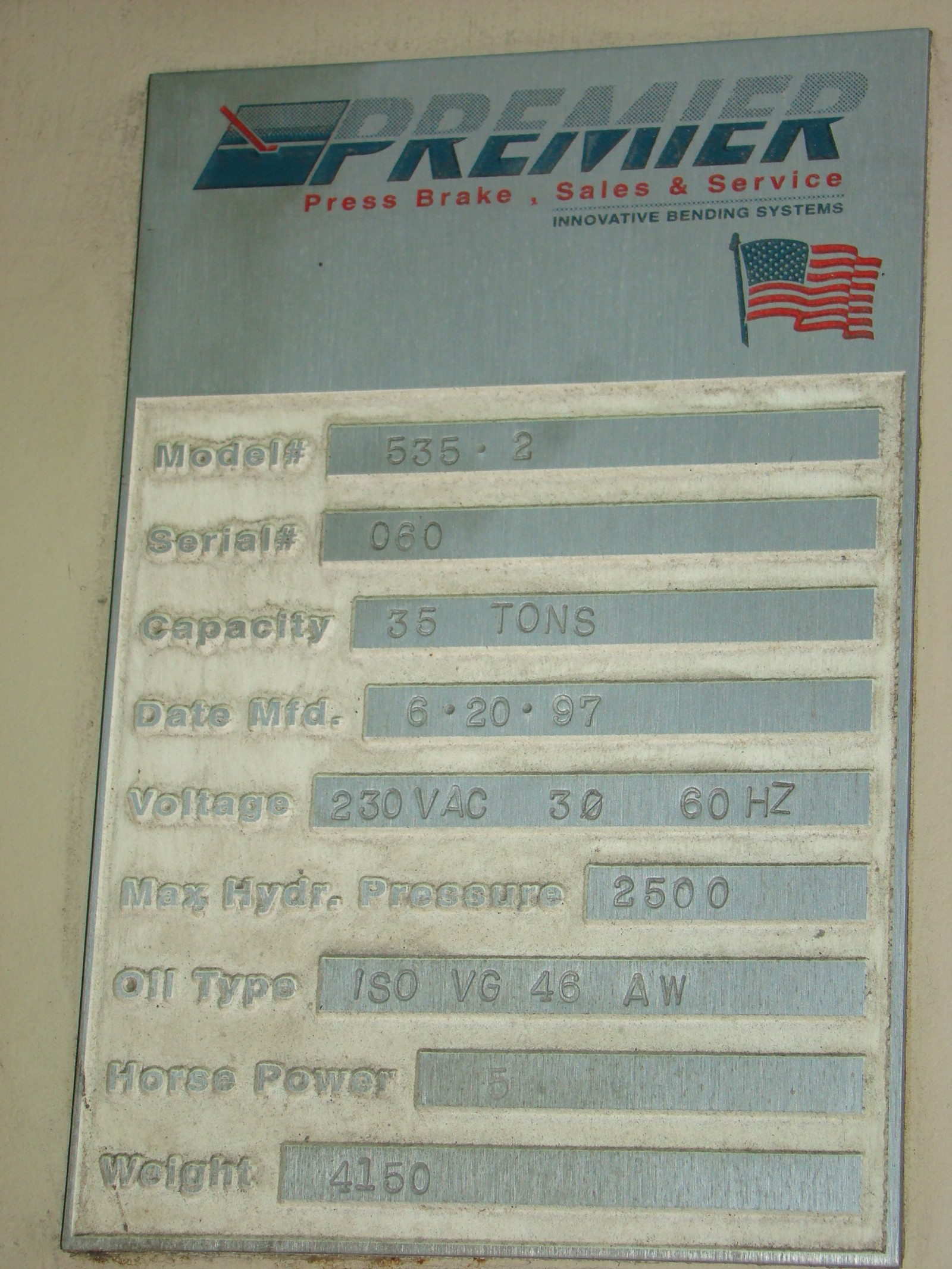

Model number 535-2
Year of manufacture 1997

SPECIFICATIONS:
Capacity 35 tons
Length of bed and ram, overall 60"
Distance between housing, actual 42"
Bending capacity 5' x 11 ga.
Ram stroke 5"

Ram open height 11-1/2"
Depth of throat 5"
Ram approach speed 206 IPM
Ram slow speed 24 IMP
Ram return speed 262 IPM
Motor 5 HP
Maximum pressure 2,850 psi
Electrics 230/3/60
Weight, approx. 4,150 lbs.
Dimensions (L x W x H) 68" x 54" x 78"

EQUIPPED WITH:

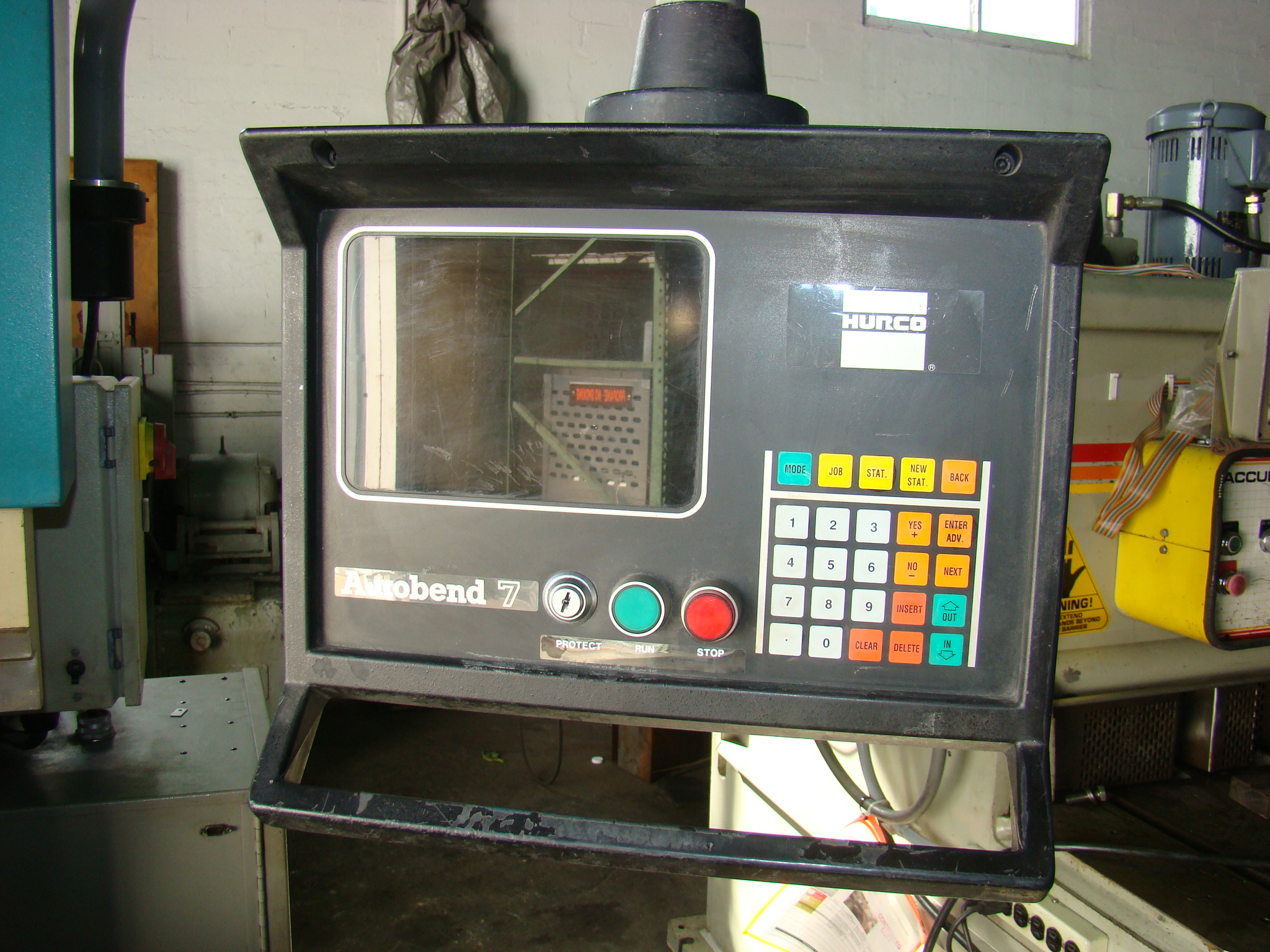

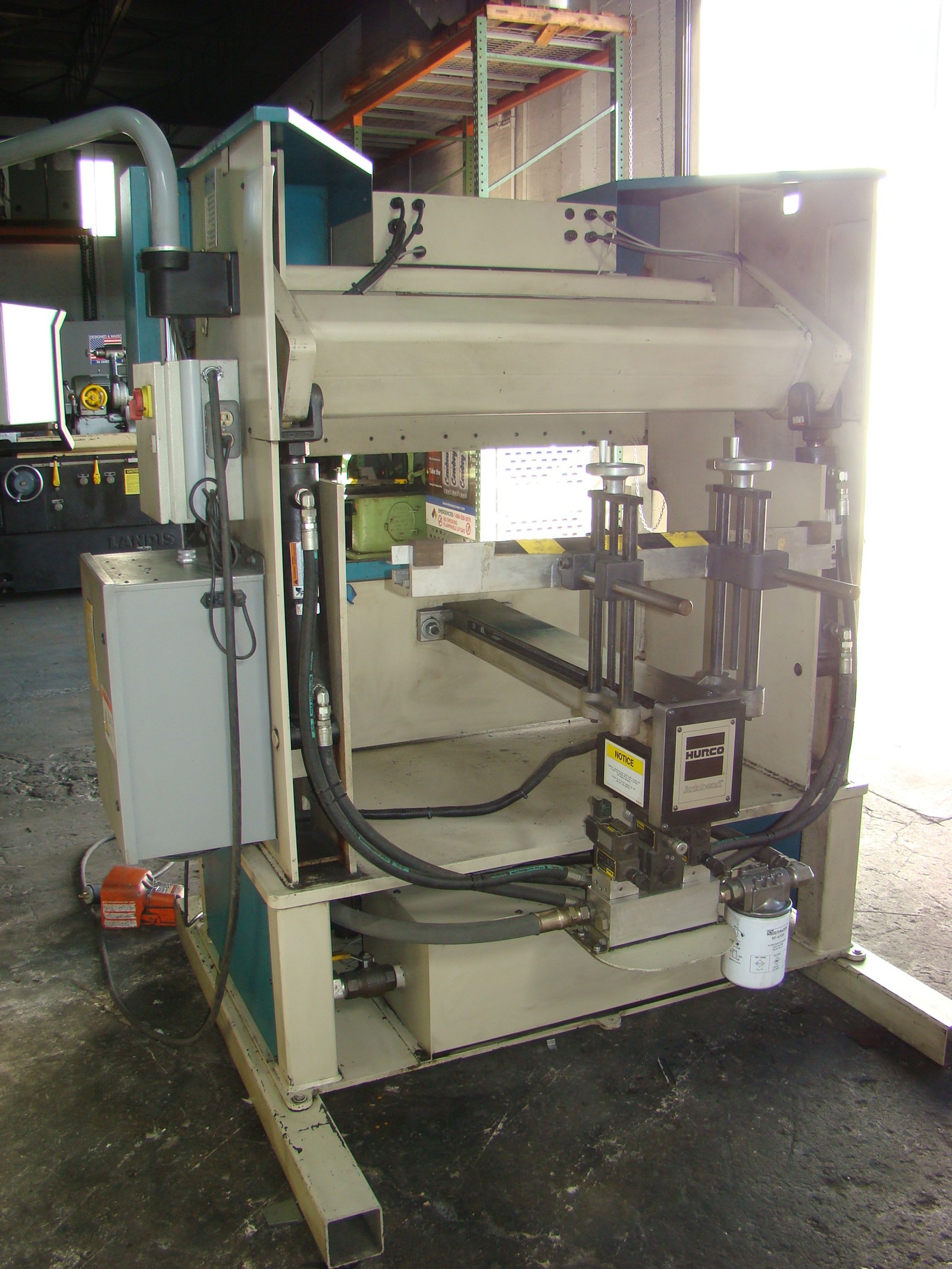

HURCO Autobend 7 2 axis CNC backgauge, Lower die holder

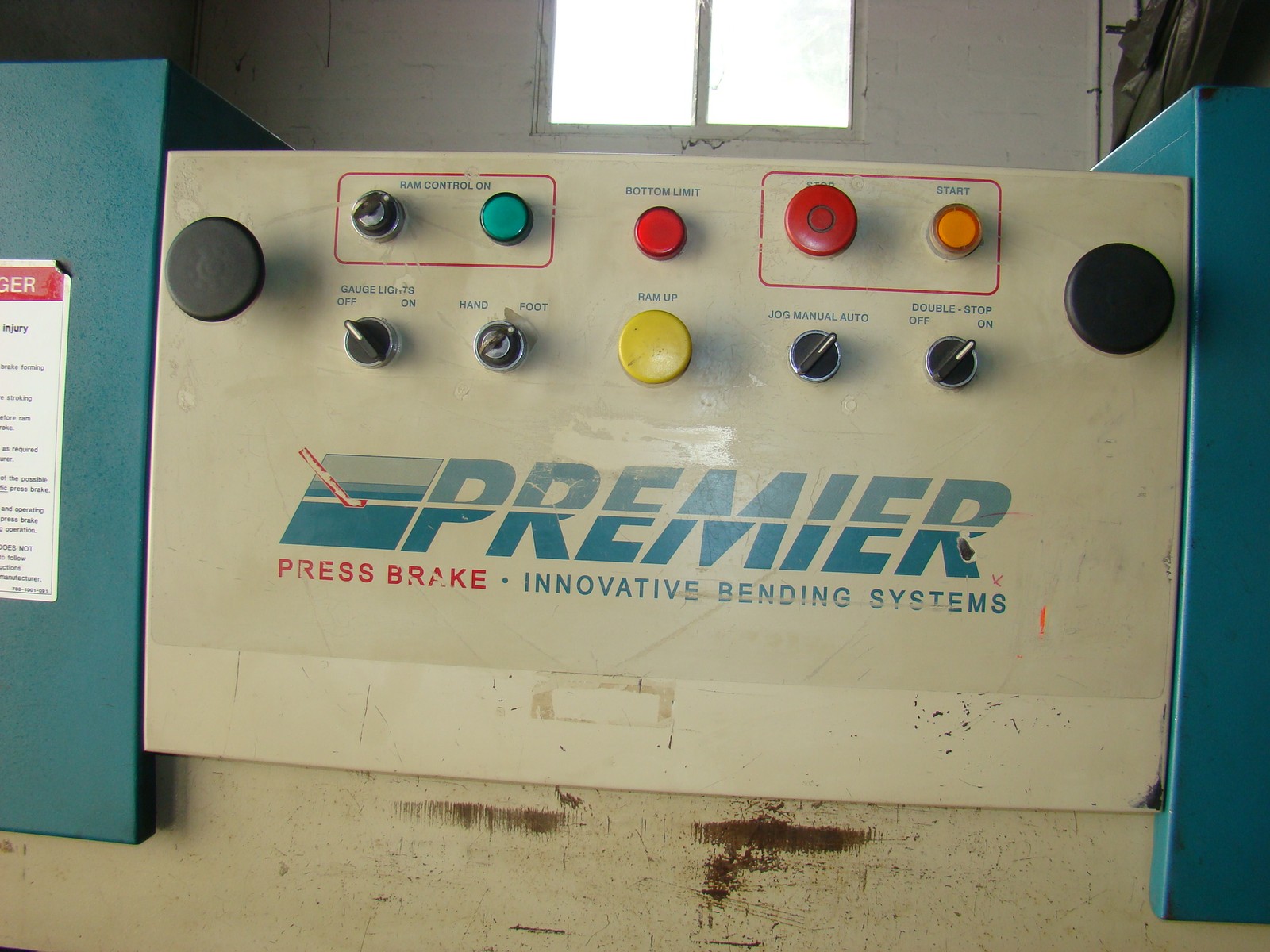

Foot control and dual palm buttons, Ram return button
Mode selector for Jog, Manual or Auto operations, Double stop circuit

HURCO AB-7 CONTROL SPECS:
Programs 600
Number of bends 2400
Angle resolution 0.1 degrees
Gage travel 24"
Vertical travel 6"
Horizontal adjustment 6"
Gauge speed 800 IPM
Gauge repeatability +/- 0.002"
Power 115 volts
