5.3" Hyundai-Wia KBN-135CL, X157", Y98", 71"X78"B-Ax RT, 2500 RPM, 44K Lb., '11 #29218

Manufacturer

HYUNDAI-WIA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

29218

Model

KBN-135CL

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #29218

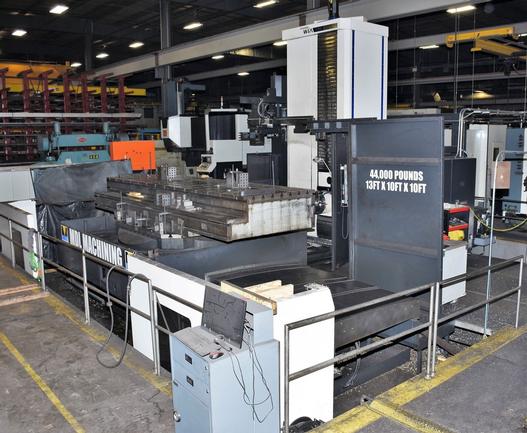

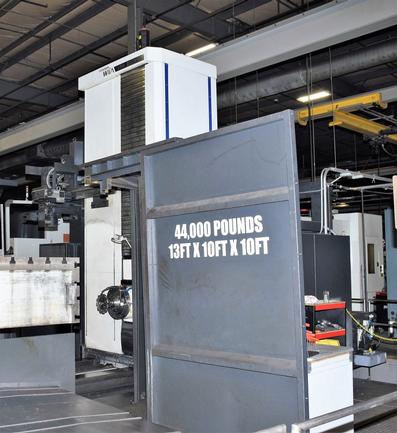

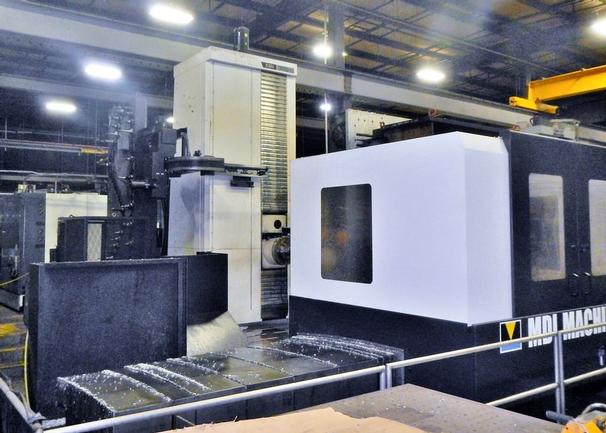

Hyundai Wia KBN-135CL 5.3" CNC Table Type Horizontal Boring Mill
Model: KBN-135CL
Age: 2011

FEATURES:
Fanuc 31i-A CNC Control
60-Position Automatic Tool Changer

CAPACITY:

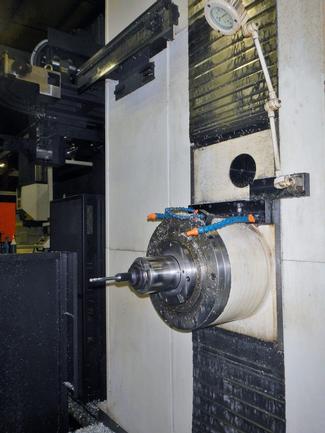

Spindle Diameter ...................... 5.31"
Vertical Head Travel, Y-Axis .......... 98.42"
Table Cross Travel, X-Axis ............ 157.48"
Column Infeed, W-Axis ................. 78.74"
Spindle Travel, Z-Axis ................ 27.56"
Table Size, Built in Rotary ........... 78.74" x 70.86"
Table Load Capacity ................... 44,092 Lbs.
Table Indexing, B-Axis ................ 0.001 Degree
Spindle Speeds: Inf. Variable ......... 3-2500 RPM
Spindle Taper ......................... CAT #50
Spindle Torque (Max) .................. 2,296 Ft-Lbs.
Rapid Traverse (X-Axis) ............... 275.6 IPM
Rapid Traverse (Y/Z/W Axes) ........... 393.7 IPM
Cutting Feed Rate ..................... 0.0393"-196.85" IPM
Approximate Floor Space (L x W) ....... 313.4" x 295.7"
Approximate Height .................... 202"
Approximate Machine Weight ............ 121,254 Lbs.

EQUIPPED WITH:
Fanuc 31i-A 4-Axis CNC Control
60-Position Automatic Tool Changer
78.74" x 70.86" B-Axis Rotary Table
Upgraded Memory to 2MB
AICC II 200 Block Look Ahead Package
AICC II 1000 Block Look Ahead Package
Rigid Tapping
Hardened Ways
Sliding Steel Telescoping Way Covers
Chip Conveyor

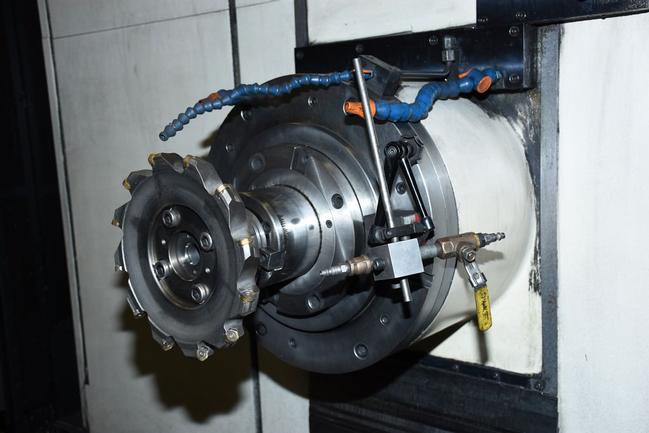

Coolant Thru Spindle (15 Bar PSI)
35 HP/ 30 HP Spindle Drive Motor
