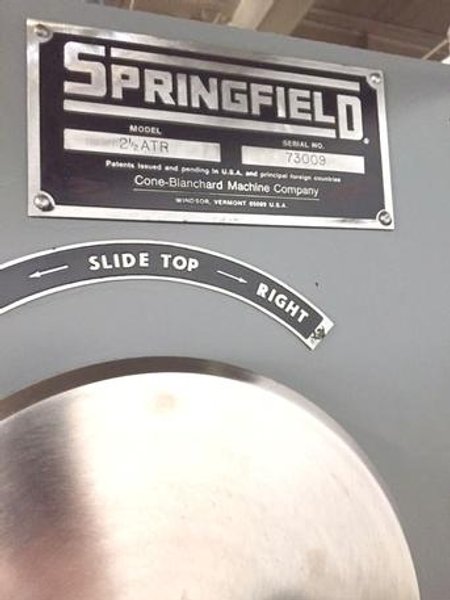

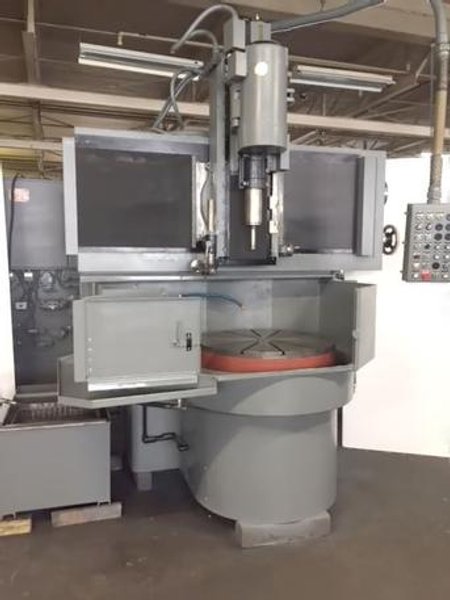

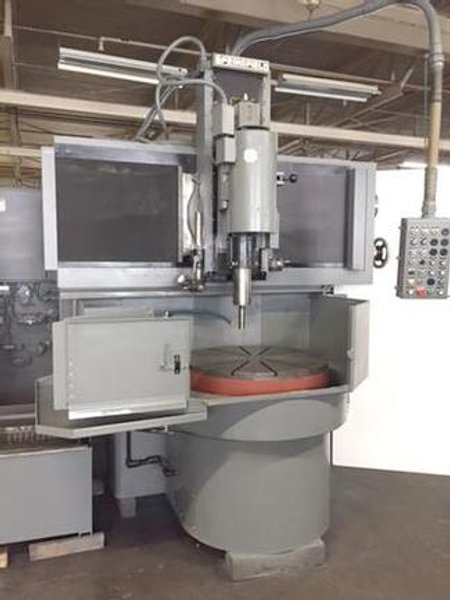

Springfield 2 1/2 ATR Vertical Universal Grinder, Exc, 1973

Stock

4619

Model

None listed

Dealer Location

Michigan

Spec Sheet

36" Combination T-Slotted Face Plate and Magnetic Chuck

42" Maximum Swing

21" Maximum Stroke Of Grinding Head

0 - 120 IPM Grinding Head Speed

0 - 150 RPM Table Speeed

20" Maximum Clearance Over Face Plate (Under Spindle Housing)

0 - 45 Degrees Angle Setting of Grinding Head

22,000 LBS Approx. Weight



EQUIPPED WITH:

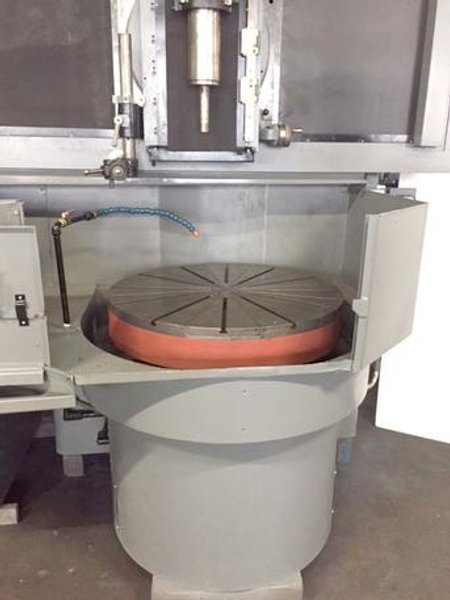

36" Diameter Combination T-Slotted Face Plate and Magnetic Chuck

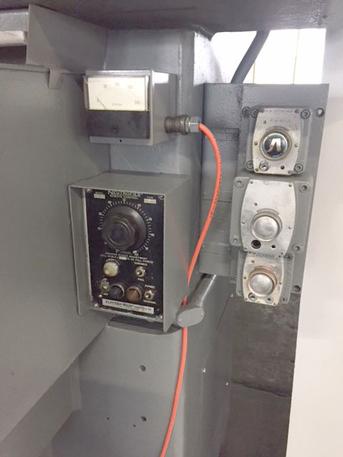

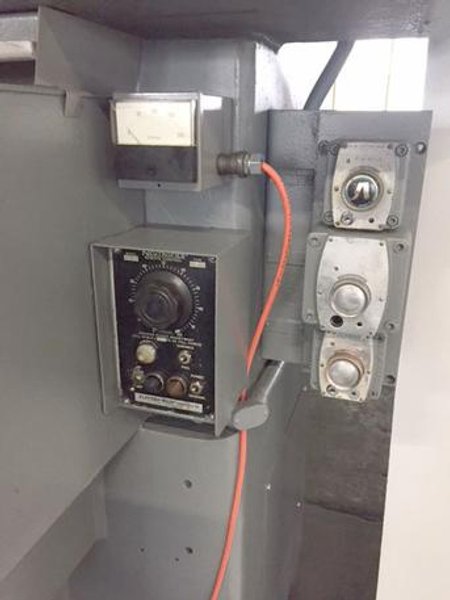

Electro-Matic Variable Magnetic Neutrofier

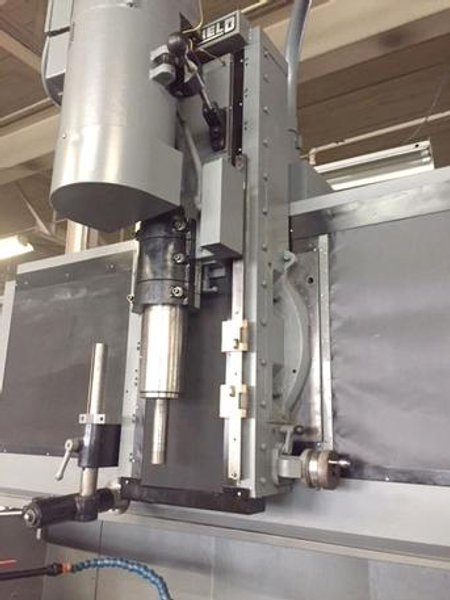

(1) Stroking Type Grinding Spindle

10 HP Spindle Drive Motor

Universal Manual Type Dresser

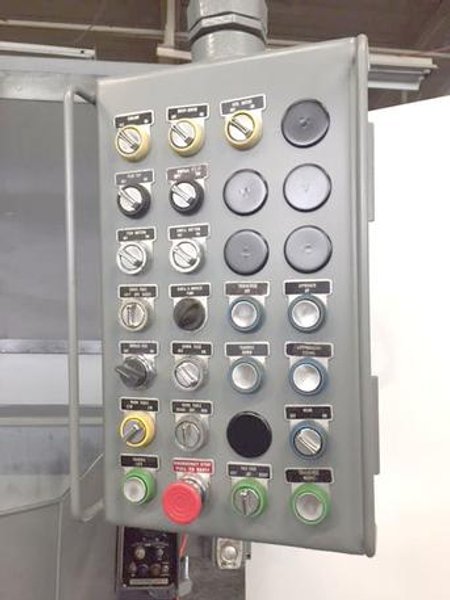

Pendant Control

Ball Screw For Grinding Spindle Depth

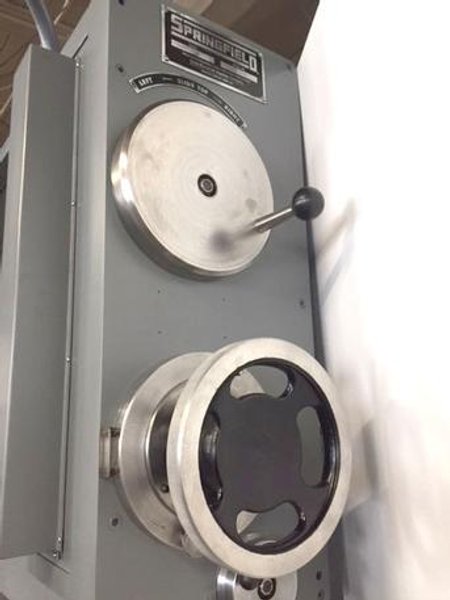

Angle Setting Device

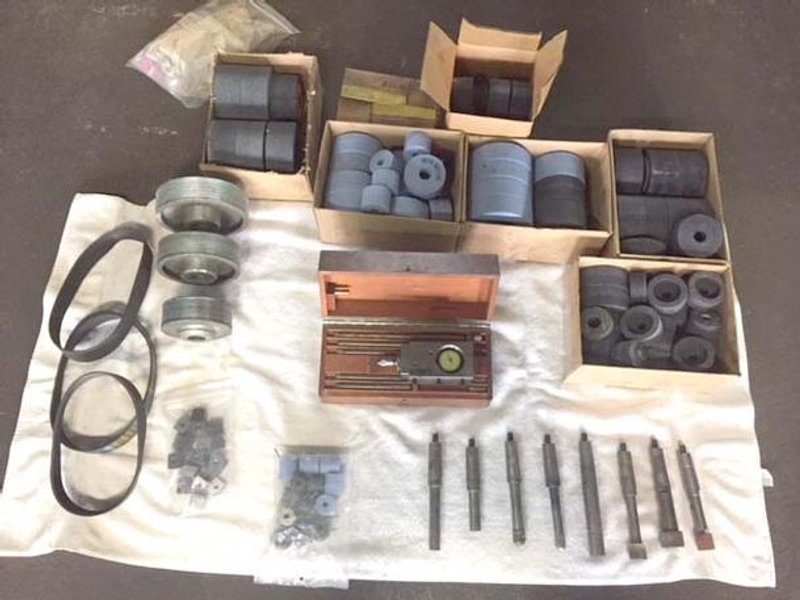

Misc. Quills for Grinding Spindle

(3) Extra Pulleys and Belts for Different Spindle RPMs

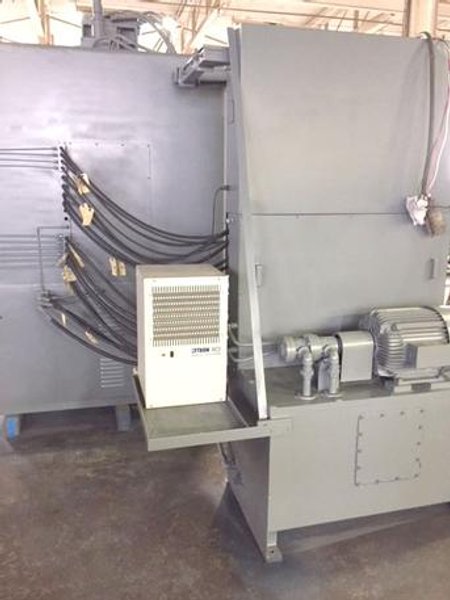

Coolant System

Machine can be inspected under power
