4.33" Kuraki KBT-1101P, X84", Y72" 12-1200 RPM, 49"X78"Tbl, Sony DRO, #50 Tpr, #28512

Manufacturer

KURAKI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

28512

Model

KBT-1101P

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #28512

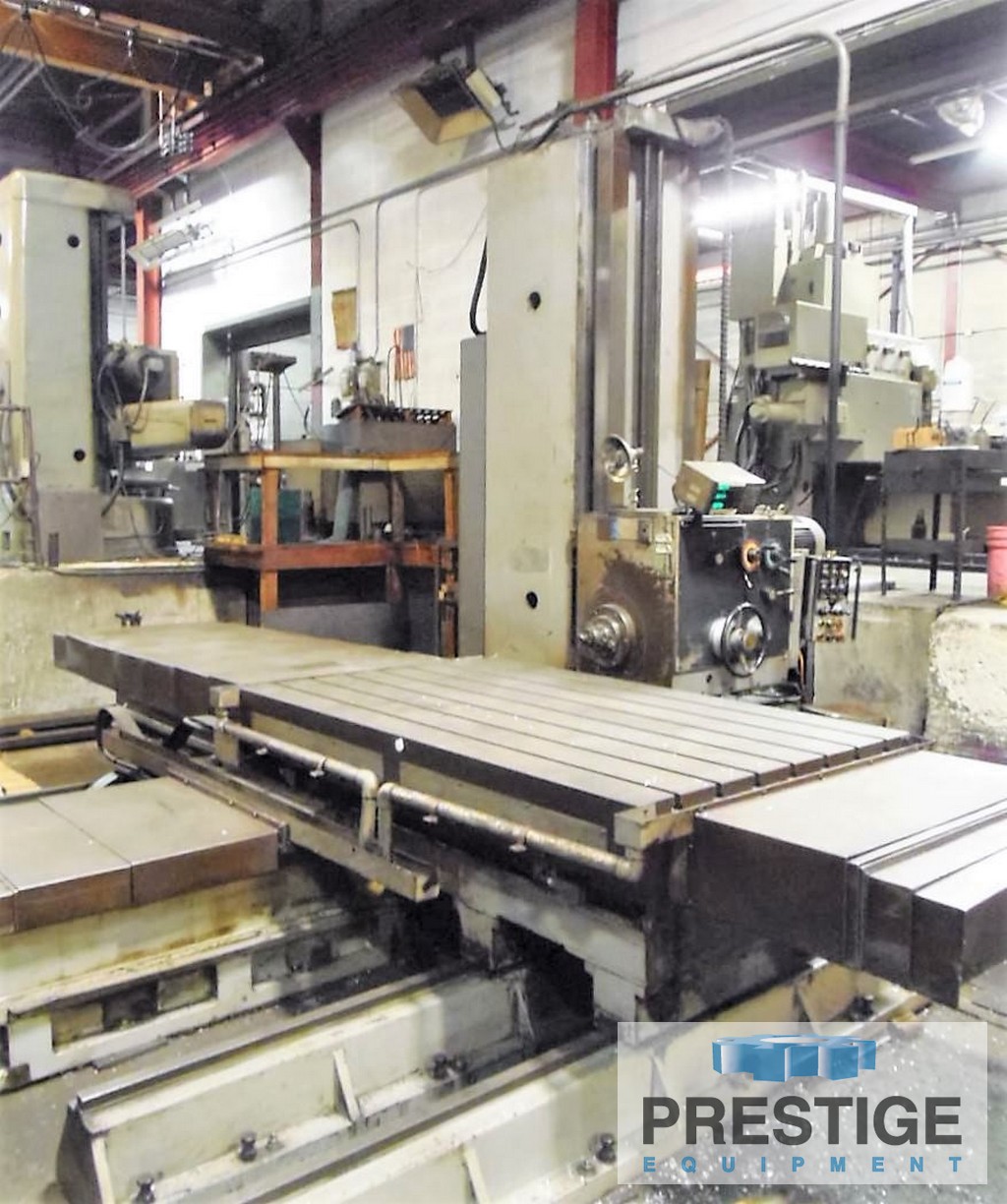

Kuraki KBT-1101P 4.3" Table Type Horizontal Boring Mill

SPECIFICATIONS:
Spindle Diameter ...................... 4.33"
Taper In Spindle ...................... CAT 50
Vertical Travel Of Headstock Y-Axis ... 72.05"
Table Cross Travel, X-Axis ............ 84.25"
Saddle Travel, W-Axis ................. 59.06"
Spindle Travel, Z-Axis ................ 31.5"
Spindle Speeds (16) ................... 12 - 1200 RPM

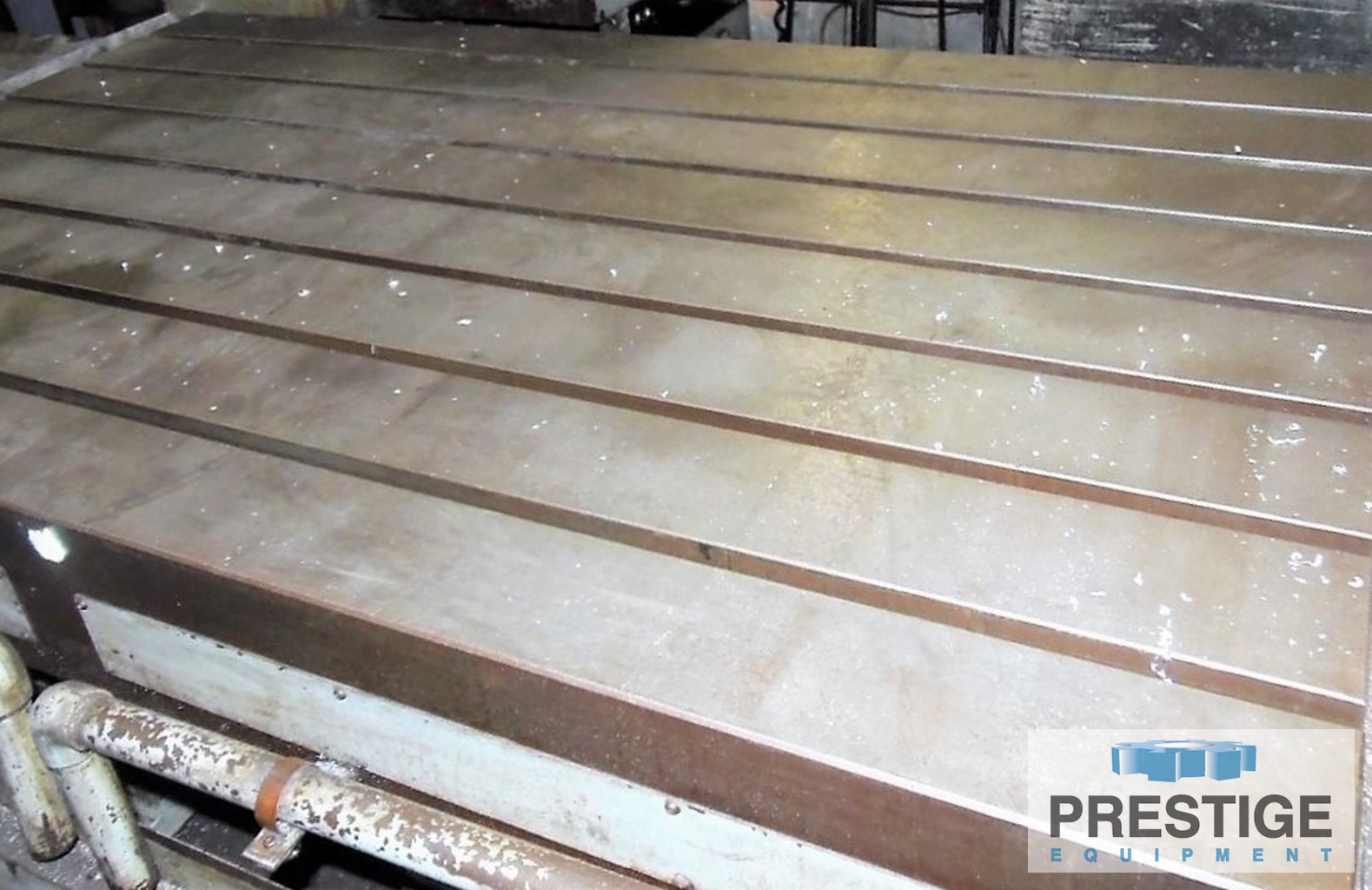

Table Size ............................ 49.21" x 78.74"
Distance to the Top of Table .......... 38.6"
Feeds (Per Revolution) ................ .001-0.2 IPR
Feeds (Per Minute) .................... .25-48 IPM
Table Weight Capacity ................. 13,200 LBS.
Rapid Traverse ........................ 100 IPM
Main Motor ............................ 20 HP
Floor Space ........................... 229.1" x 207.5"
Approximate Weight .................... 51,920 Lbs

EQUIPPED WITH:

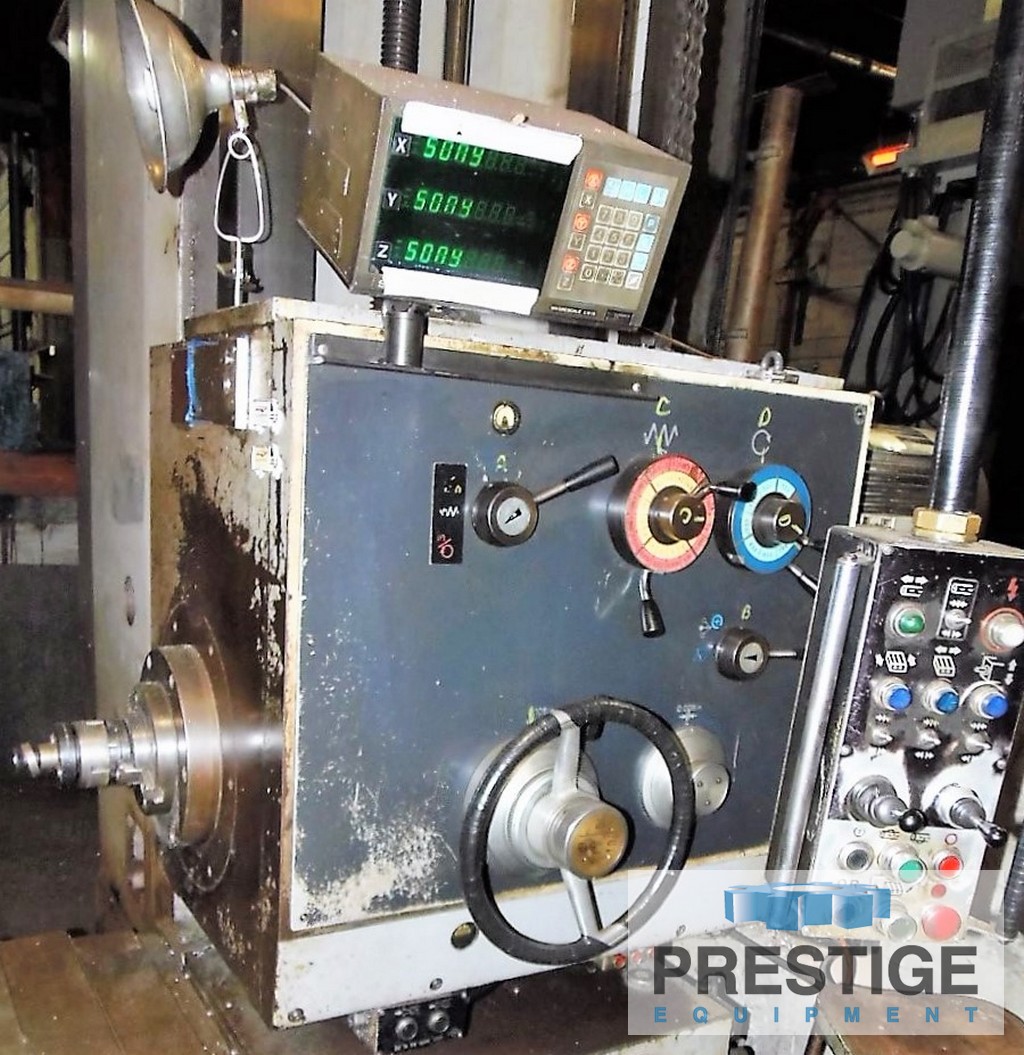

Sony 3-Axis Digital Readout

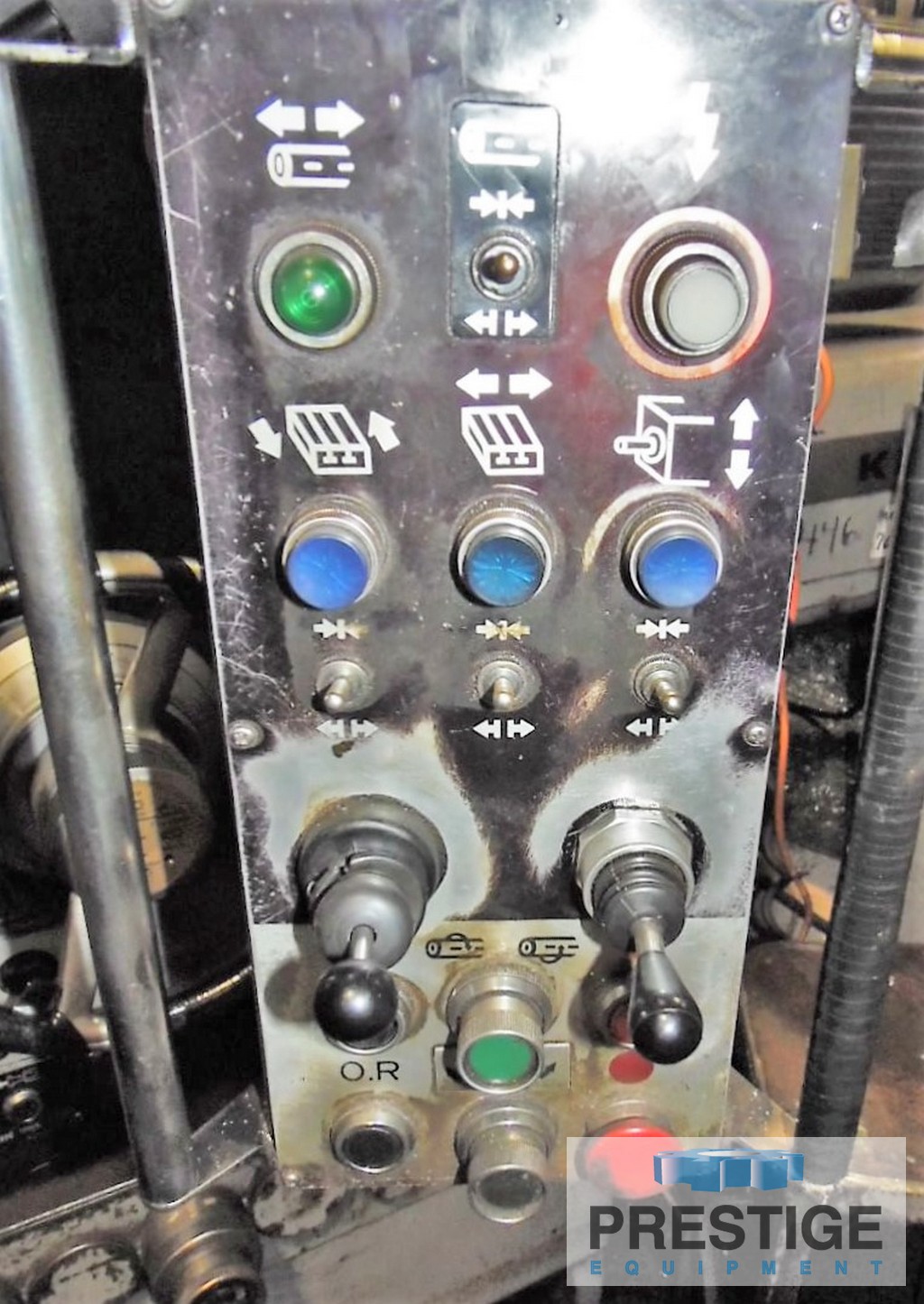

Pendant Controls
Power Draw Bar
20 HP Spindle Motor
