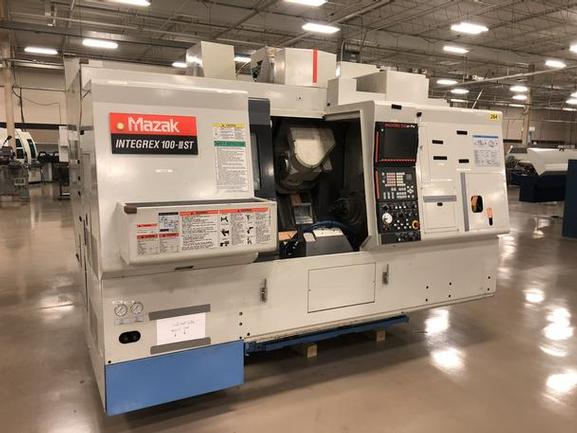

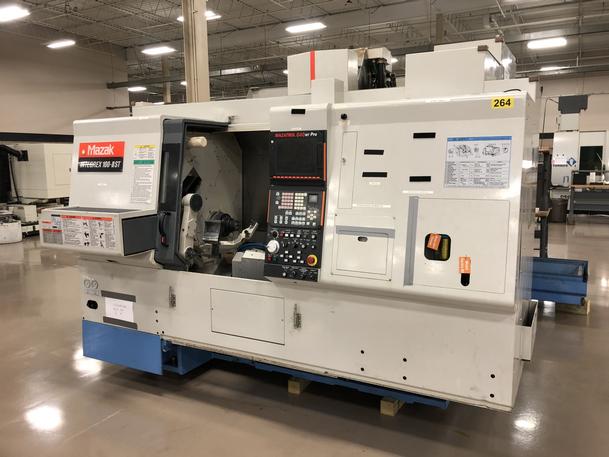

Mazak Integrex 100-III ST Horizontal CNC Lathe, 2004

Manufacturer

MAZAK

Category

Lathes

Type

TURNING CENTERS, CNC

Stock

4645

Model

INTEGREX

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Control: Mazatrol 640  MT Pro

Number Of Axes: 9

Swing: 18.5"

Turning Diameter: 18.5"

Center Distance: 28.9"

Chuck Size: Collet

Bar Capacity: 2"

Travel (X): 14.17"

Travel (X) Lower Turret: 8.66"

Travel (Y): - 2.36"

Travel (Z): 30.87"

Travel (Z) Lower Turret: 30.71"

B-Axis Head Tilt: 225 Degrees

Travel (W): 31.3"

C-Axis Index: 0.001"

Rapid Traverse (X): 1,181 IPM

Rapid Traverse (Y): 1,024 IPM

Rapid Traverse (Z): 1,299 IPM

Spindle Nose: A2-5

Spindle Speed: 6,000 RPM

Spindle Motor: 10 HP

Y Axis: Yes

Sub Spindle: Yes

Live Tooling: Yes

Live Tooling Motor: 7.5 HP

Live Tooling Speed: 10,000 RPM

ATC: 40

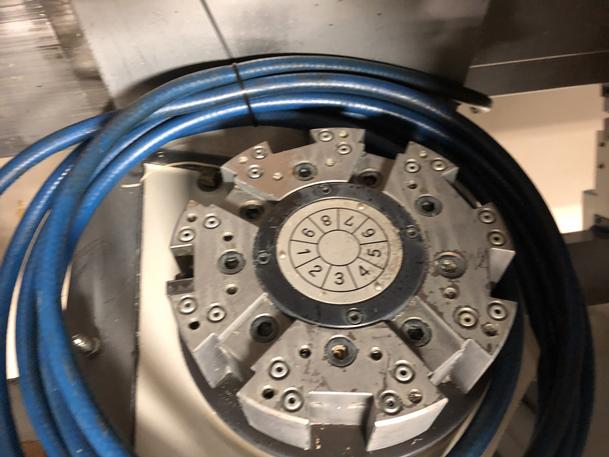

Turret Stations: 8

Machine Dimensions: 121" x 84" x 97"

Machine Weight: 16,500 Lbs. Appproximate



EQUIPPED WITH:

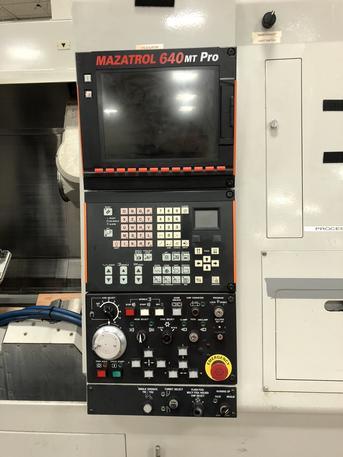

Mazatrol 640 MT Pro Control

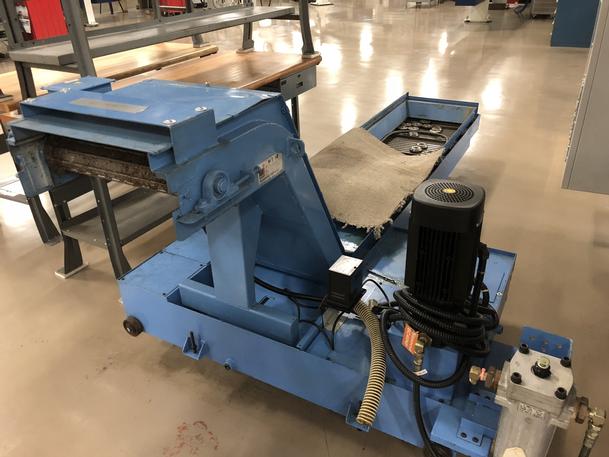

Chip Conveyor

Coolant Tank

Collet Chuck

Tool Presetter

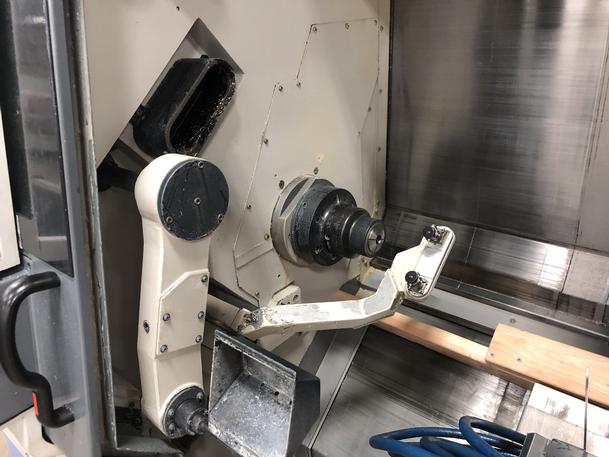

Parts Catcher

Machine is from a medical parts manufacturer
