Tajmac ZPS H40 Trend CNC Horizontal Machining Center

Manufacturer

TAJMAC

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

18272

Model

ZPS H40 TREND

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

PALLET SIZE: 400 X 400 MM (15.7" X 15.7")

NUMBER OF PALLETS: 2

PALLET LOAD CAPACITY: 300 KG (660 LBS.)

PALLET ROTATION: 360 DEGREES

PALLET ROTATION INCREMENT: 0.001 DEGREES

X AXIS TRAVEL: 560 MM (22")

Y AXIS TRAVEL: 510 MM (20")

Z AXIS TRAVEL: 560 MM (22")

SPINDLE SPEED: 10,000 RPM

SPINDLE MOTOR: 12/17 KW (16/23 HP)

MAXIMUM SPINDLE TORQUE: 90/127 NM (66/94 LB-FT)

SPINDLE TAPER: ISO 40

MAXIMUM WORKING FEED: 15 M/MIN (590 IPM)

RAPID TRAVERSE: 50 M/MIN (1970 IPM)

SPINDLE FACE TO ROTARY TABLE AXIS: 130 - 690 MM (5.1" - 27.1")

SPINDLE AXIS TO PALLET CLAMPING SURFACE: 80 - 590 MM (3.1" - 23.2")

PALLET SURFACE TO FLOOR: 950 MM (37.4")

OAD: 4991 X 2540 X 2616 MM (196" X 100" X 103")

WEIGHT (APPROXIMATE): 9000 KG (19,800 LBS.)

EQUIPPED WITH:

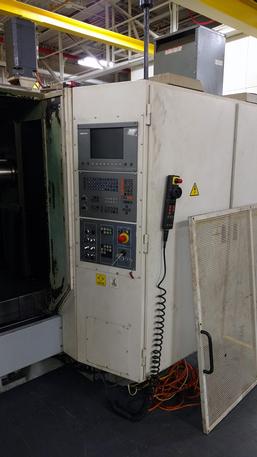

HEIDENHAIN iTNC 530 CNC CONTROL

45 POSITION ATC
