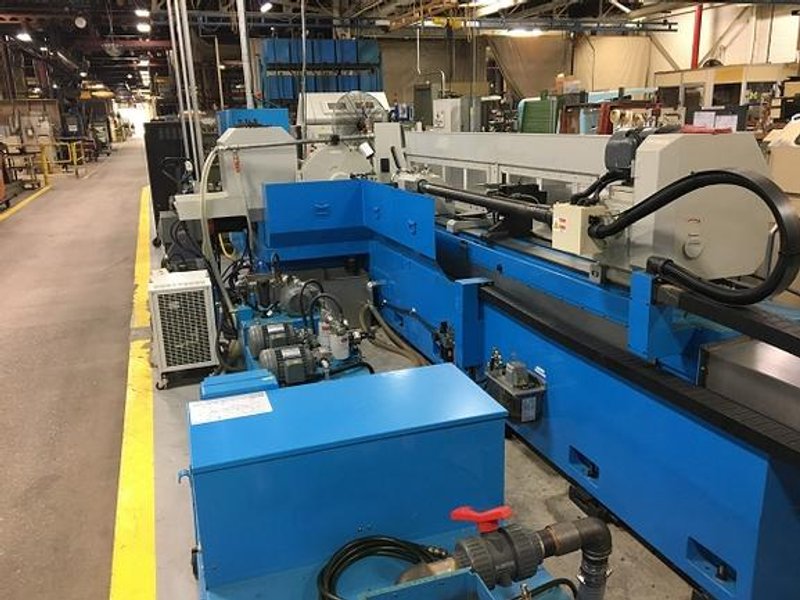

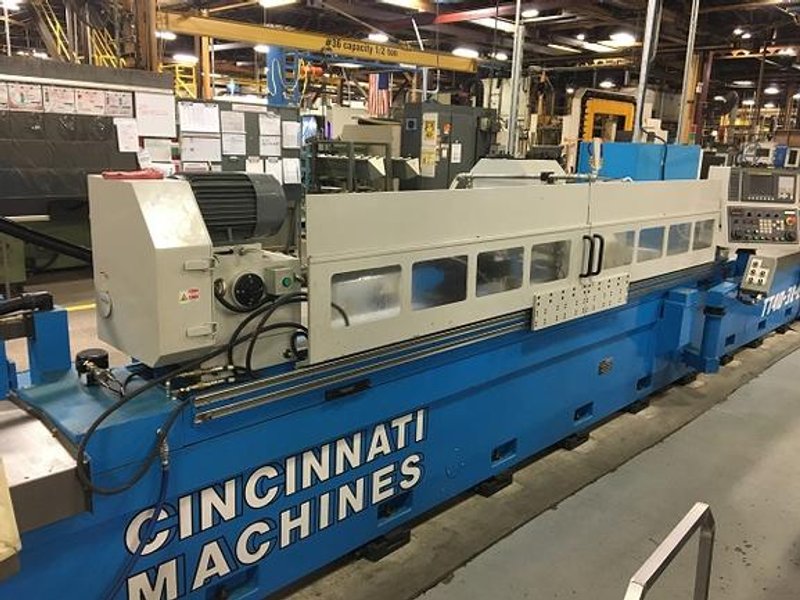

15-3/4" X 122" Cincinnati Machines TT40/30L-C2, Fanuc CNC, New 2017, 30 Run Hours

Manufacturer

CINCINNATI

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, CNC

Stock

None

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CINCINNATI MACHINES TT40/30L-C2 CNC CYLINDRICAL GRINDER, INSTALLED AND NOT USED

Working capacity
Max. swing over bed or table mm Ø400
Max. distance between c.c. M 3.1M
Max. weight of rolling centers KG 800
Max. weight of rolling neck rests KG 1200
Max. O.D. ground with full wheel mm Ø400
Grinding dia. mm Ø5 ? 400
Grinder & Feed
(X axis)
Wheel size(O. D. × Width × Bore) mm Ø500 × Ø152 × 50
Type of lubricating system - Hydrostatic & dynamic system
Wheel Speed R.P.M 0 ? 1800
Cross travel of wheehead (X axis) mm 200
Max? cross feed rate mm/min 1000 mm/min
Cross feed per pulse mm/p 0.001
Table (Z axis)
Travel of table or head (Z axis) mm Maximum Center Distance + 8”
Table Speed mm/min 25 ? 3000 mm/min
Type of lubricating system - Hydrostatic & dynamic system
Neck rests Rest Diameter mm Ø30 ?Ø120

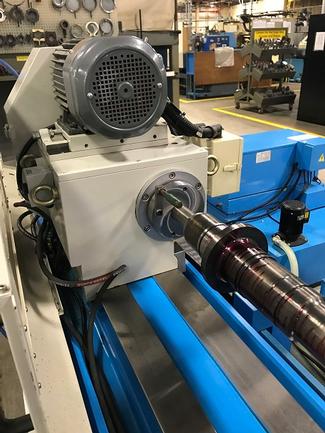

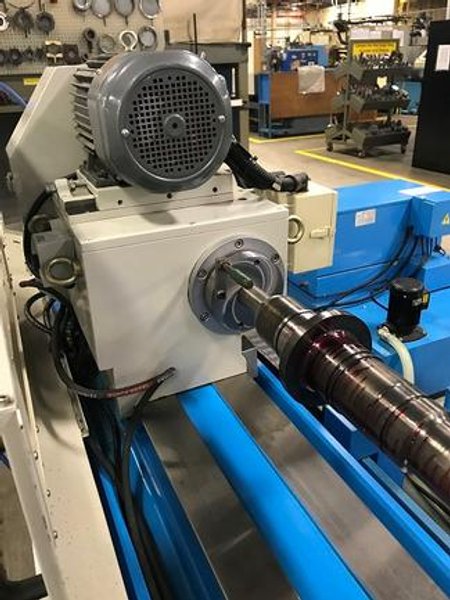

Workhead & Tailstock
Work Head Speed R.P.M 10 ? 100
Size of center - MT#5
Moving speed of tailstock mm/min Manually
Quill Stroke mm 70
Power rating
Grind wheel motor HP 15 HP × 4 P(10 HP × 6P)
Work Head motor HP 3 HP × 6 P
Table traverse motor (Z axis) NM 12NM
Tailstock motor HP N/A
Cross feed motor (X axis) NM 8NM

EQUIPPED WITH:

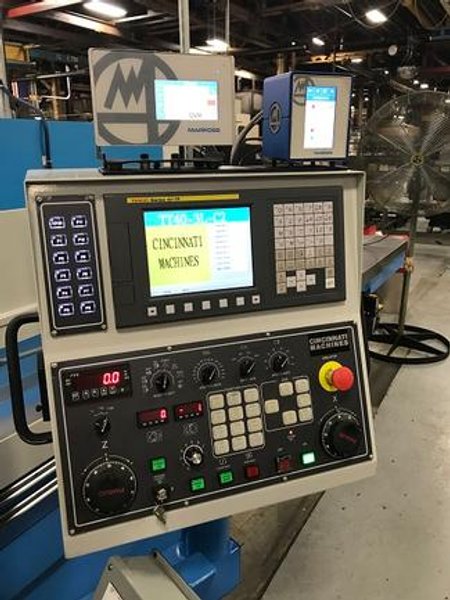

Fanuc Oi-TF CNC Control
Automatic Grinding Wheel Balancer ($19,560.00)

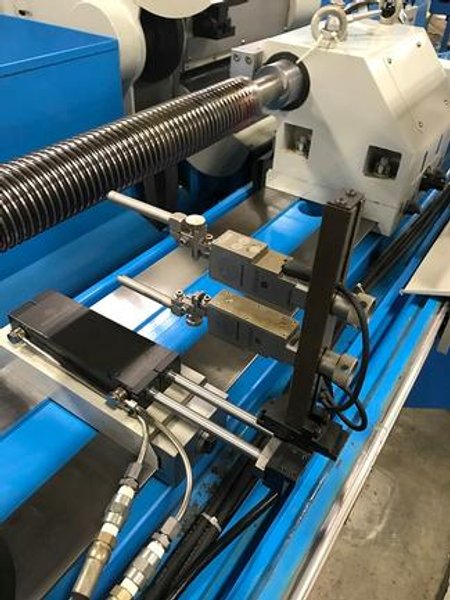

Marposs In-Process Measuring System($29,880.00)
Touch Probes X and Z Axes programmable ($24,780.00)
Coolant System
