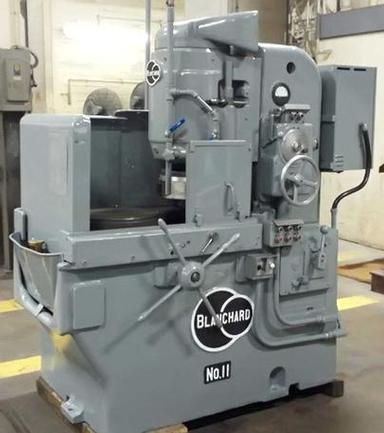

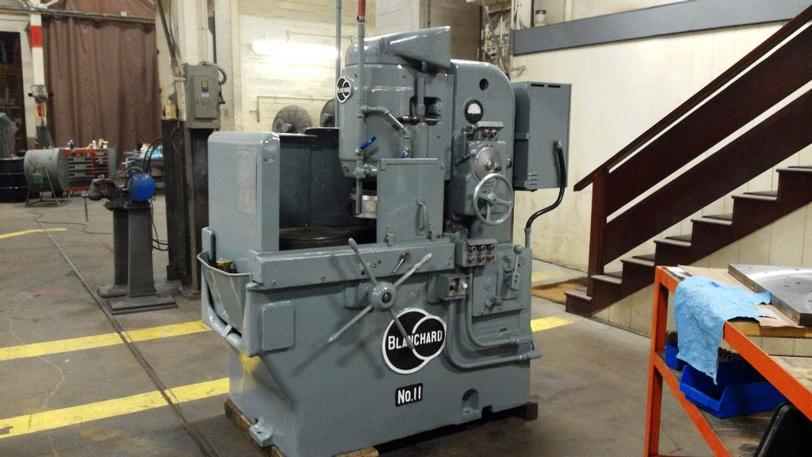

16" Blanchard #11-16, 16" Magnet, 9" Vertical, 15 HP, #4282

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

4282

Model

11-16

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Spindle Motor: 15 HP, 240/480 volt,

Range: 20" Diameter x 9" Vertical

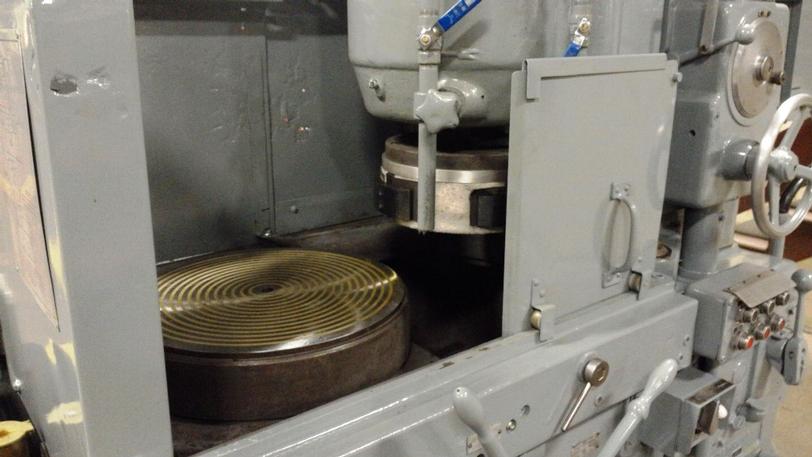

Chuck: 16" Diameter

Chuck Speeds: 15, 24, 41, 64 RPM

Grinding Wheel:TBD

Grinding Wheel Speed: 1200 RPM

Feeds: .003 - .070 IPM

Floor Space: 5'3"L x 3'6"W x 6' 8-3/4"Max./5' 9-1/2"Min.H

Approx. Weight: 7,500 lbs

Equipped with:

Magnetic Chuck Controls

Coolant Pump and Piping

Note:

Main Spindle has been rewound, Machine has been Cleaned, Cycled and Painted. Head tram, table precision ground and test parts run to .0002" flat
