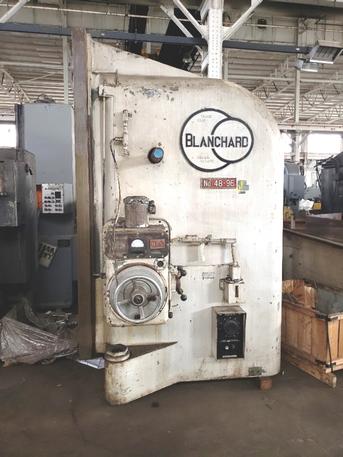

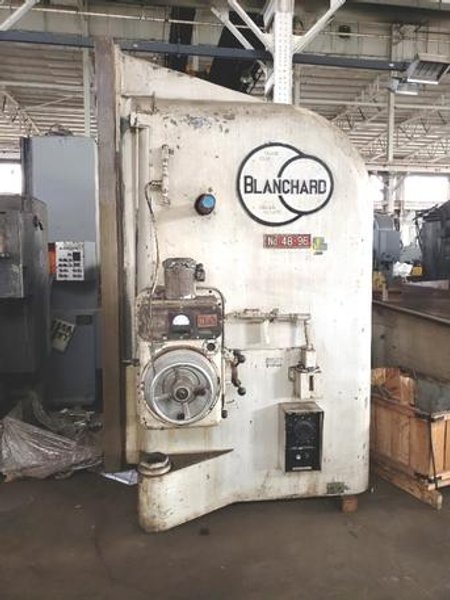

96" Blanchard #48D-96 Vertical Spindle Rotary Surface Grinder, '70, Warranty

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

4629

Model

48D-96

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

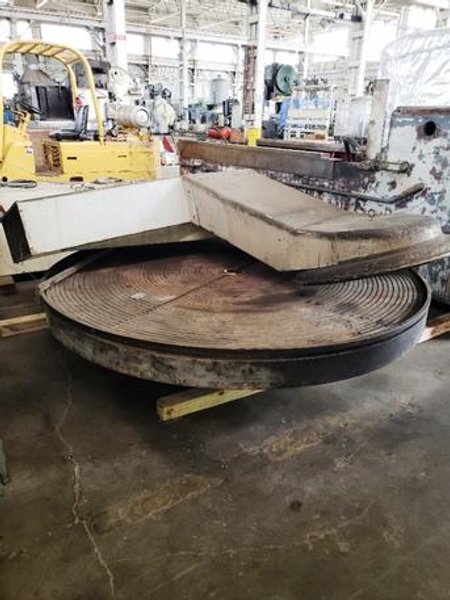

96" Magnetic Chuck (1/2" Chuck Life)

108" Swing Inside Water Guards

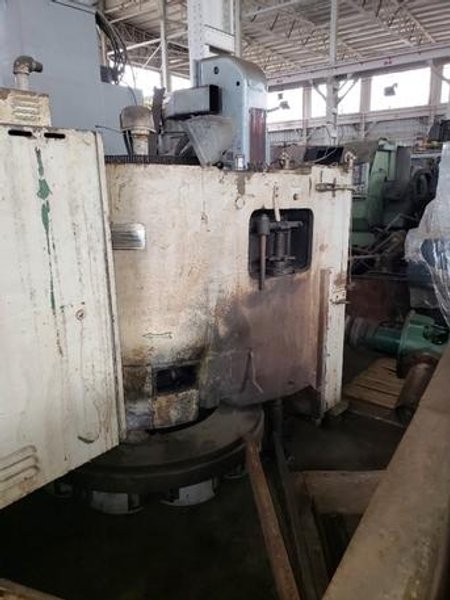

48" Grinding Wheel Head Stock

150 HP Main Spindle Drive, 350 RPM Wheel Speed

33" Vertical Travel

(4) Table Speeds of 2.6, 4.1, 6.6, 10.2 RPM

(21) Incremental Down Feeds of  .008-.096 IPM



Equipped with:



Hardened Bed Base Ways

Automatic Lube System

Electronic Magnetic Chuck Controls

Wheel Dresser

Rapid Traverse Head Up/Down

Weight: 87,000 LBS. Approximate

Floor Space: 246" L x 130" W x 215" H



Price to include the following minimum repairs:

1. Disassemble Machine components (Water Guards, Spindle , Column, Bed Ways, Saddle

2. Disassemble Spindle unit, check bores, send winding out to clean, triple coat and re-bake, replace bearings with Timken Class III Bearings

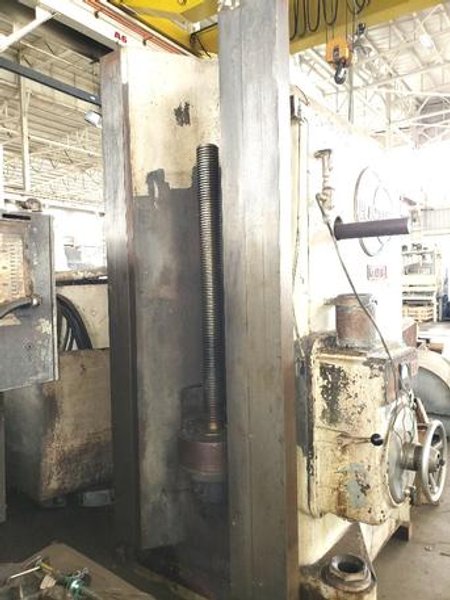

3. Remove elevating screw and nut and send out for inspection, repair or replace as necessary

4. Flake head and column way surfaces

5. Remove and repair as necessary, 48" Cortland segment holder (replace clamps with new)

6. Replace lube lines, replace lube pumps (as needed)

7. Repair wheel dresser as needed

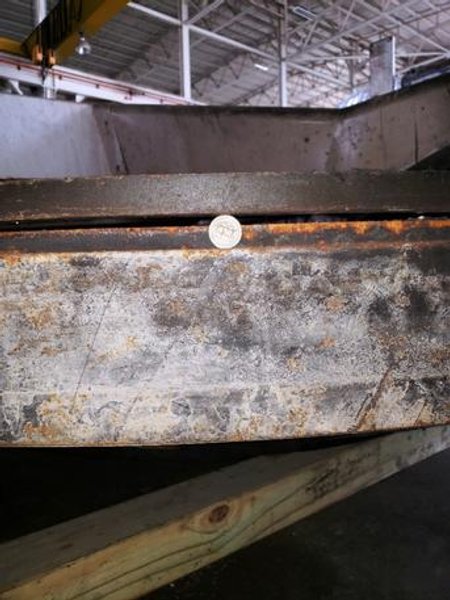

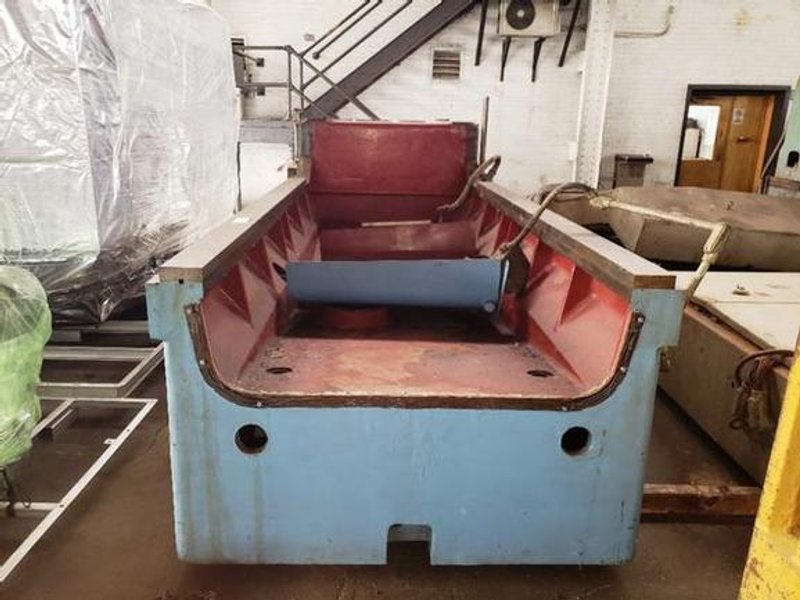

8. Remove hardened bed ways, re-grind , re-install

9. Flake saddle and cup way surfaces

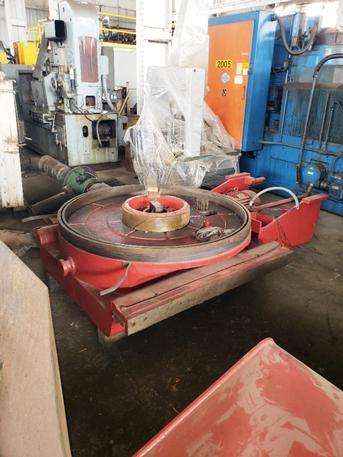

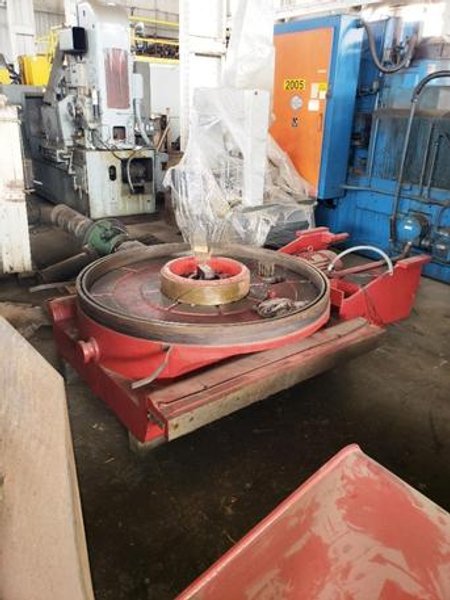

10. Disassemble table rotation gear box in saddle and repair as necessary

11. Disassemble saddle traverse gear box and repair as necessary

12. Replace Rack and Pinion (if needed)

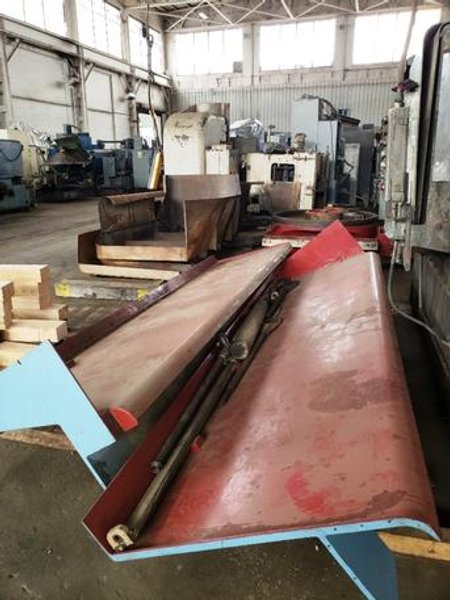

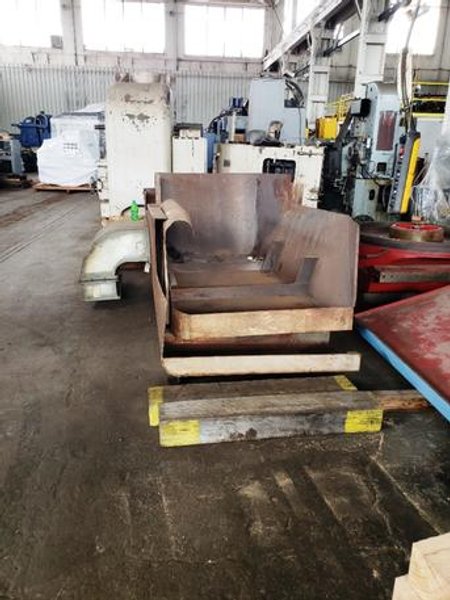

13. Repair or replace all water guards as necessary

14. Re-Assemble machine

15. All new coolant lines and electronic water valve

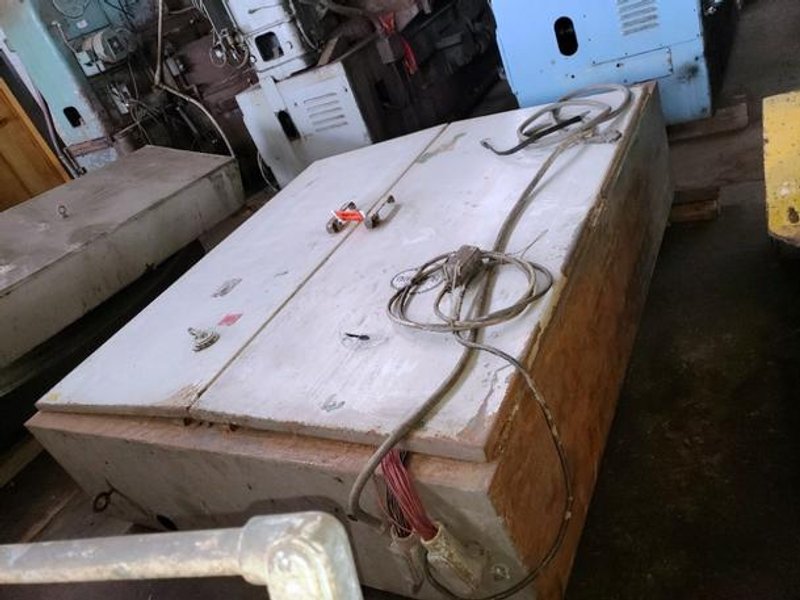

16. Repair electrical panel as necessary

17. Set up, tram column and spindle, grind in magnetic chuck and run test parts

18. Clean and paint

90 Day Warranty on all work performed
