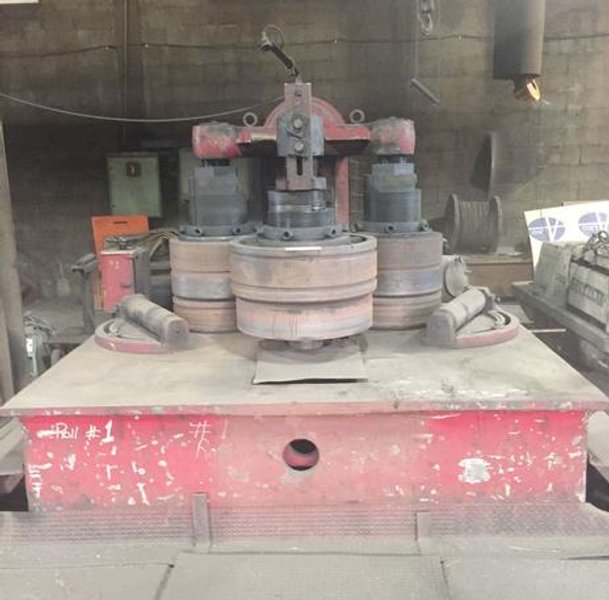

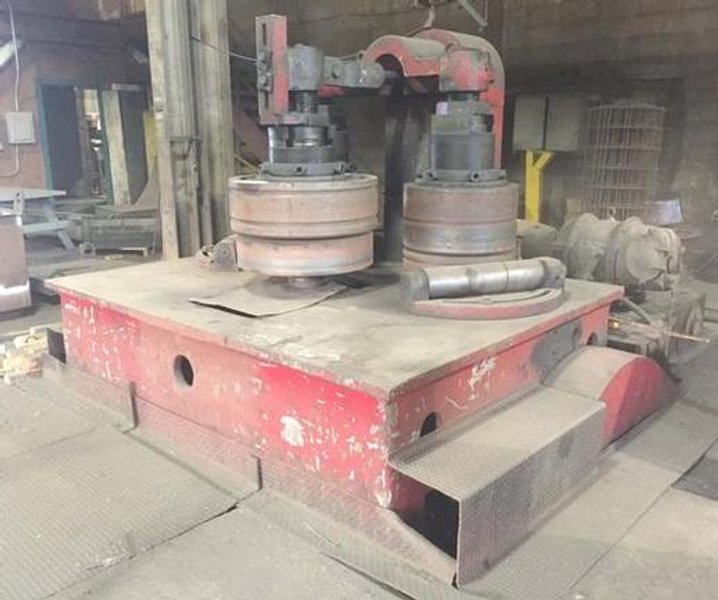

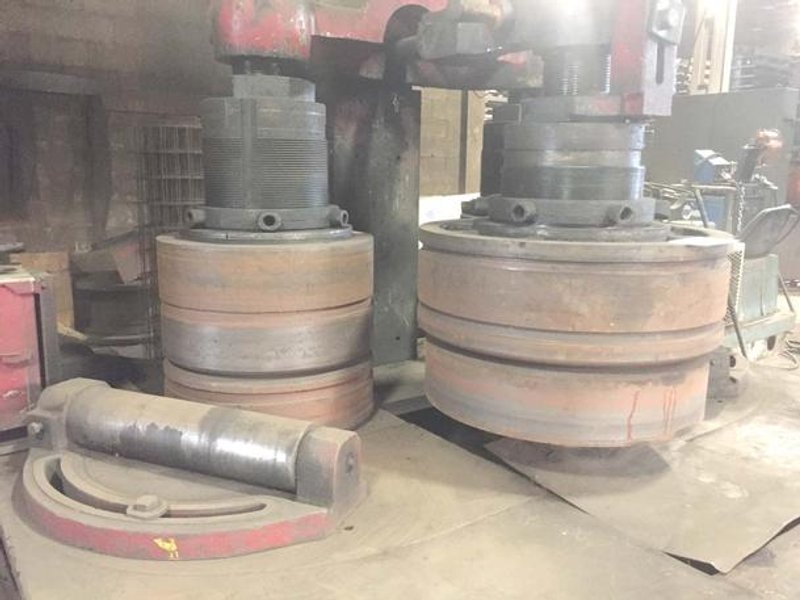

8" X 8" X 1" Herkules Angle Roll, Model B0234I, 1965

Manufacturer

HERKULES

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

4563

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

ANGLES LEG OUT ............ 8" X 8" X 1" @ 120"

ANGLES LEG IN ............. 4" X 4" X 5/8" @ 40"

PLATES ON FLAT ............ 12" X 2-3/4" @ 48"

SQUARES ................... 4-5/16" X 4-5/16" @ 48"

PIPE DIAMETER ............. 6-1/4" X 5/8" @ 80"

I BEAMS ................... 18" X 6-1/4" @ 80"

CHANNELS LEG & OUT ........ 17" X 4" @ 80"

CHANNELS LEG IN ........... 17" X 4" @ 80"

TEES LEG OUT .............. 8" X 7"

TEES LEG IN ............... 8 X 7"

GUIDE ROLLS ................ YES

ROLLS DRIVEN .............. 2

ROLLING SPEED ............. 13.1 OR 26.2 IPM

MOTOR ..................... 40 HORSEPOWER
