6.3" Wotan Cutmax, X-138", Y-118", 80 ATC, 2-Pallets, 2K RPM, 87 HP, Rebuilt '04 #28704

Manufacturer

WOTAN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

28704

Model

Cutmax

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #28704

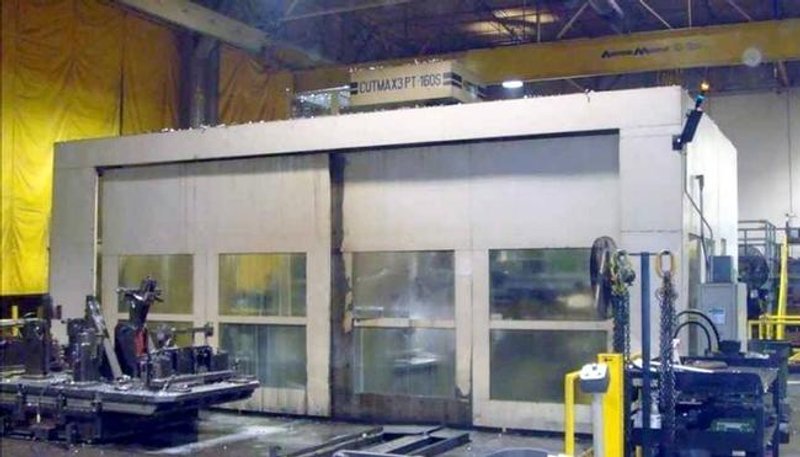

6.3" Wotan Cutmax CNC Table Type Horizontal Boring Mill
Age 1987 Rebuilt & Retrofit 2004
Model: Cutmax 3PT-160S

FEATURES:
Siemens 840D CNC New 2004
80-Station Automatic Tool Changer

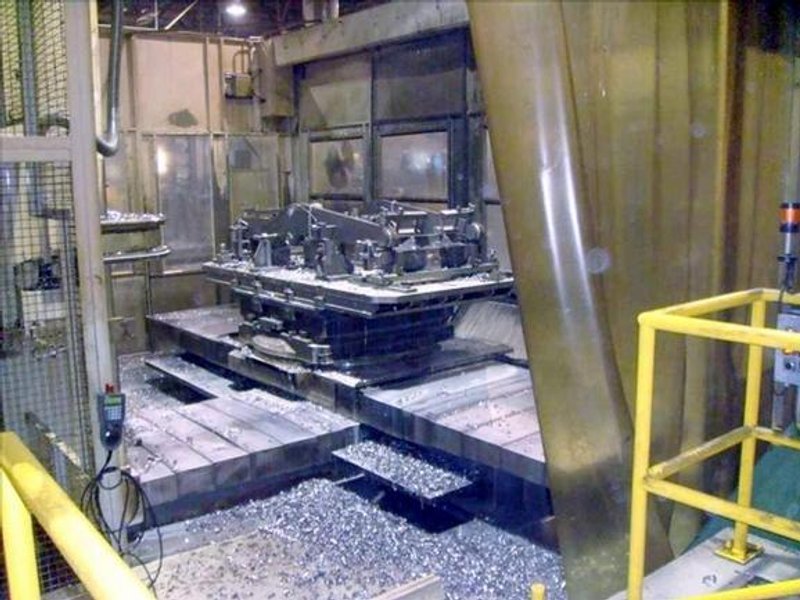

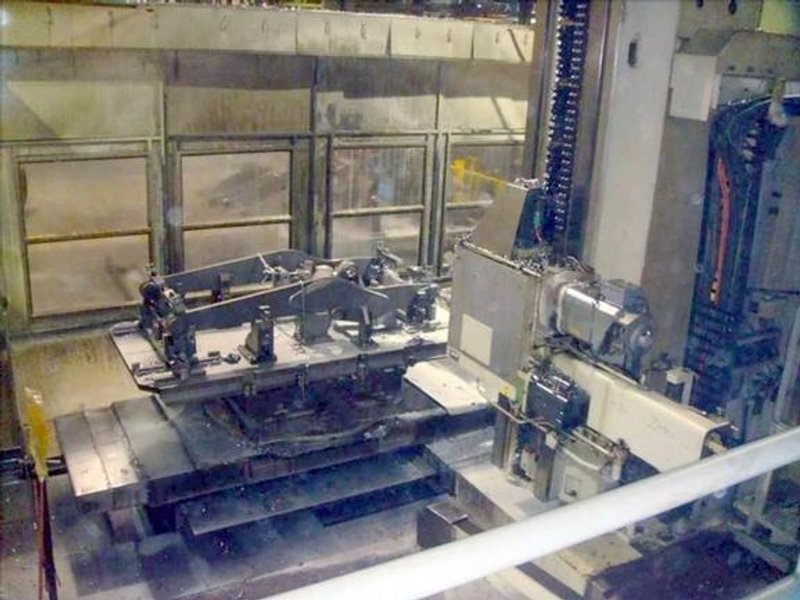

2-Pallet Shuttle System

CAPACITY:

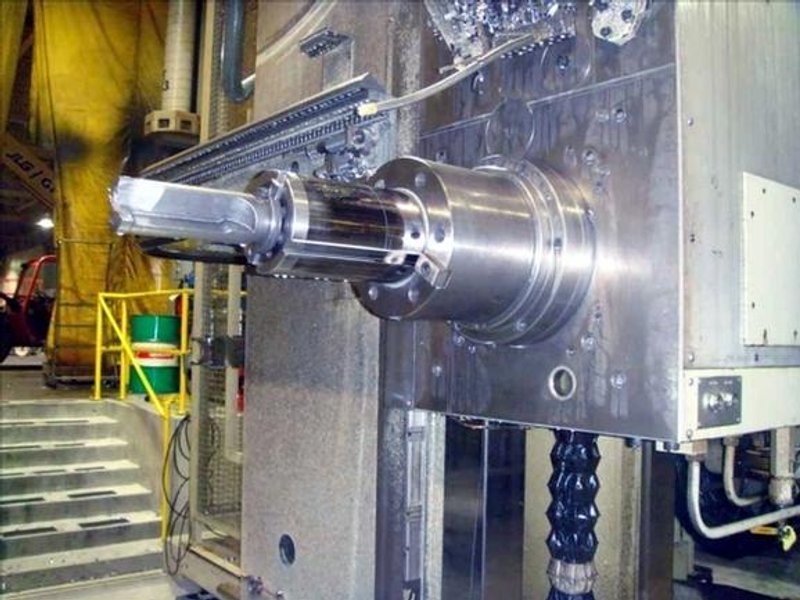

Spindle Diameter ...................... 6.3"
Taper In Spindle ...................... #50

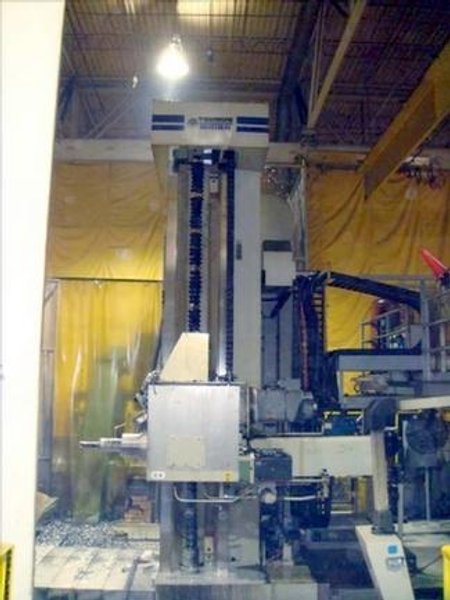

Vertical Head Travel, Y ............... 118.11"
Table Cross Travel, X ................. 137.79"
Column Infeed Travel, W ............... 62.99"
Spindle Travel, Z ..................... 39.37"
Pallet Size (1) ....................... 63" x 88"
Pallet Size (1a) ...................... 63" x 63"
Spindle Speeds ........................ 2-2000 RPM
Feed Rates ............................ .004-200 IPM
Rapids ................................ 470 IPM
Pallet Indexing ....................... 1-Degree
Pallet Capacity ....................... 50,000 Lbs

EQUIPPED WITH:
Siemens 840D CNC Control (Retrofit 2004)
80-Station Automatic Tool Changer
63" x 88" Pallet
63" x 63" Pallet
Chip Conveyor
87 HP Spindle Drive

Machine Rebuilt & Retrofit in 2004
