248" CKX Mdl 5280, 314"Turn Dia, 157"U/R, Live Mill, 46 HP, 167 HP Tbl Drive, #28360

Manufacturer

CKX

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

28360

Model

5280

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #28360

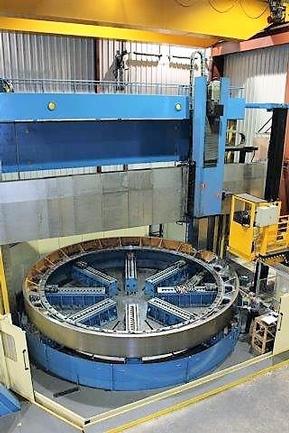

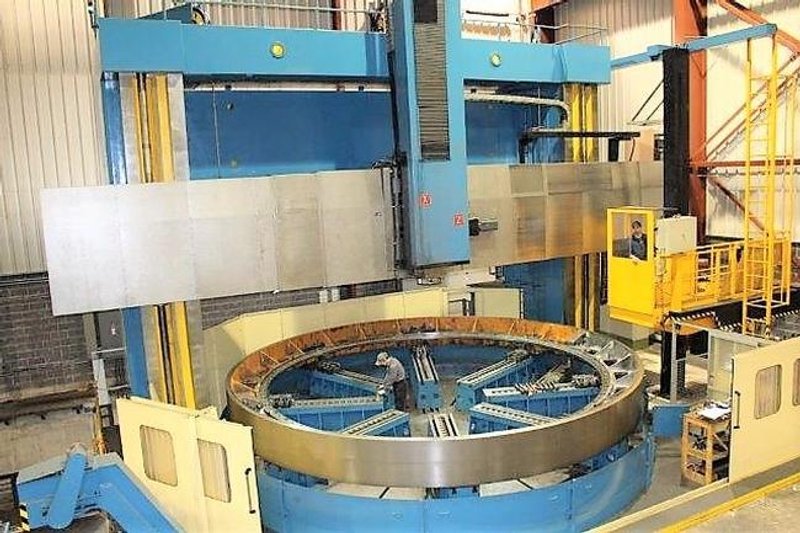

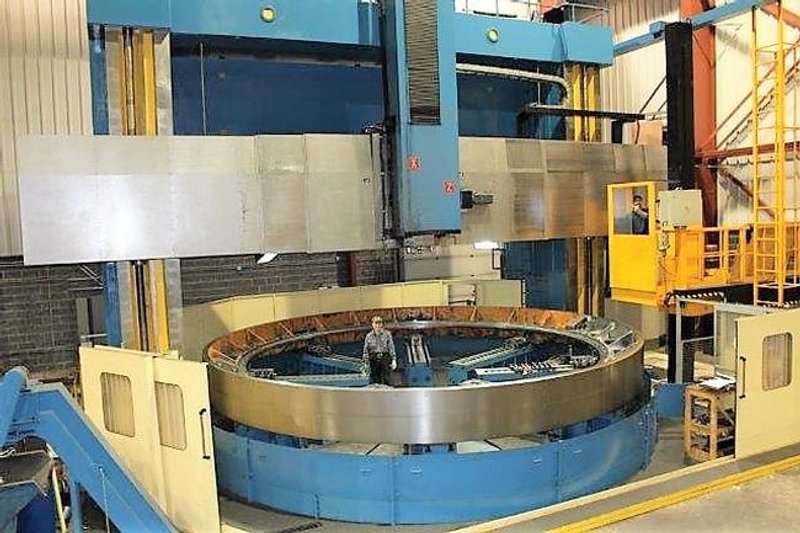

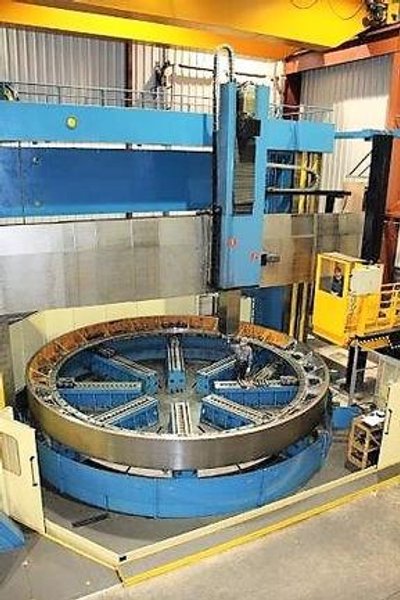

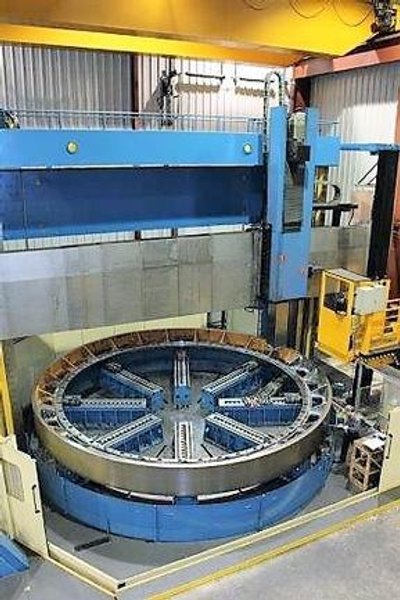

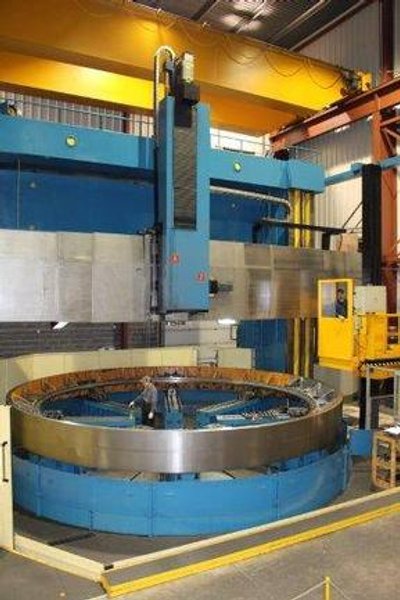

248" CKX CNC Vertical Boring Mill with Live Spindle
Age: 2009
Model: 5280 x40/160

FEATURES:
Siemens 840DE CNC Control
.001 Degree C-Axis w/ Heidenhain Rotary Encoder
Turning, Milling, Drilling & Threading Cycles
Ram With Live Spindle
Right Angle Head
Table Outrigger Supports for 8 Meter Turning
Independant Elevating Operator Platform
Steel Sliding Way Covers
Chip Conveyor

CAPACITY:
Table Diameter ....................... 248.03"
Turning Diameter ..................... 314.96"
Maximum Turning Height ............... 157.48"
Maximum Stroke of Vertical Rams ...... 98.42"
Ram Cross Section .................... 15.74" x 15.74"
Cross Rail Travel .................... 137.79"
Table Load Capacity .................. 160 Tons
Table Speed Ranges ................... .315-31.5 RPM
Table Indexing and Milling Speeds .... .0002-.2 RPM
Table Indexing ....................... .001 Degress
Main Motor ........................... 167 HP
Milling Spindle Taper ................ ISO #50
Milling Spindle Speeds, Max .......... 800 RPM
Milling Spindle Motor ................ 46 HP
Machine Footprint .................... 595" x 410"
Machine Height ....................... 488"
Machine Weight ....................... 350 Tons

EQUIPPED WITH:
Siemens 840DE CNC Control
.001 Degree C-Axis w/ Heidenhain Rotary Encoder
Turning, Milling, Drilling & Threading Cycles
Ram With Live Spindle
Right Angle Head
Table Outrigger Supports for 8 Meter Turning
Independant Elevating Operator Platform
Steel Sliding Way Covers
Chip Conveyor

NOTES:
Inspect In Plant Under Power!
