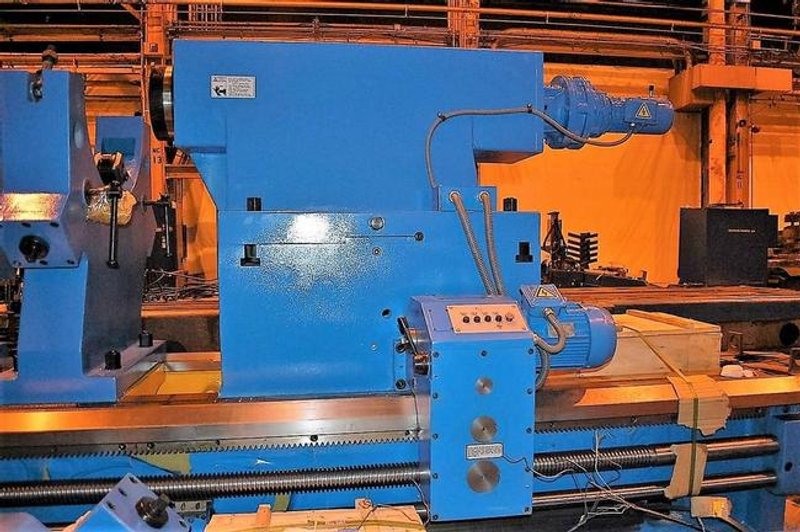

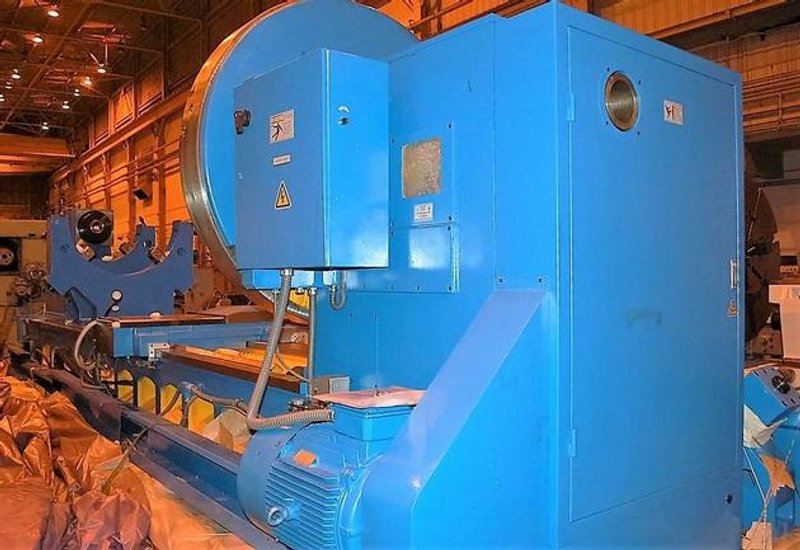

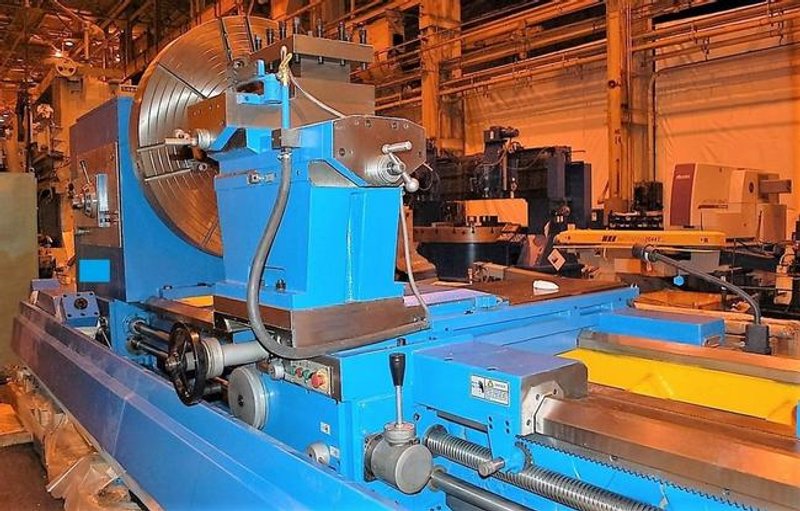

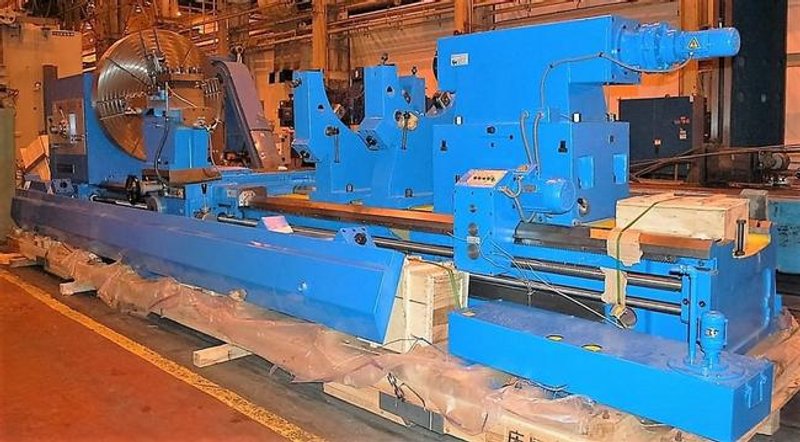

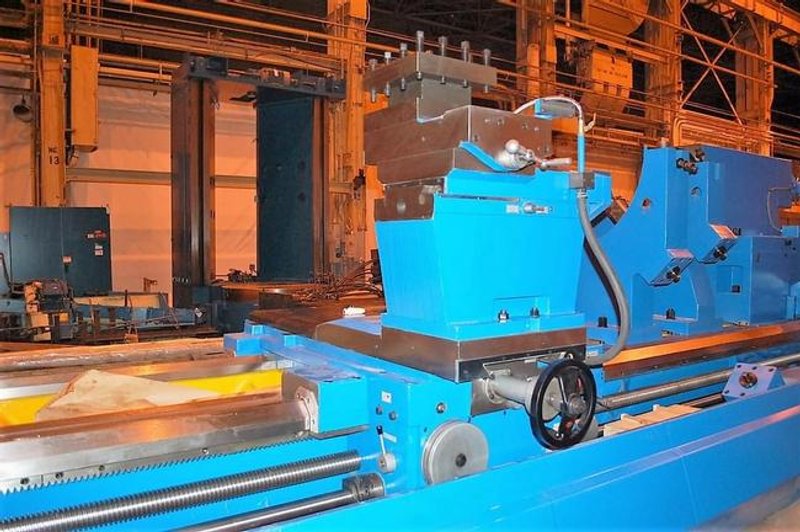

80" X 236" Tru Turn, 64" Over C/S, 315 RPM, 63" 4-Jaw Chuck, Inch/Metric Threading, #25249

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

25249

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25249

Tru Turn 80.31" x 236" Manual Lathe, Brand New
Model: Heavy Duty

CAPACITY:
Swing Over Bed ....................... 80.31"
Swing Over Cross Slide ............... 64.96"
Width of Guide Way ................... 43.30"
Distance Between Centers ............. 236.22"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Spindle Bore ......................... 5.12"
Spindle Nose ......................... A-15
Tailstock Diameter ................... 11.02"
Tailstock Travel ..................... 11.81"
Taper of Tailstock Bore .............. 140 Metric
Weight Capacity ...................... 33,000 lbs

EQUIPPED WITH:
62.99" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
(2) Roller Type Steady Rest: 27.5" & 15.75"
Power Drive To Top Slide For Conical Cutting
Swivel Compound & Toolpost
Inch / Metric Threading
Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock
Motorized Tailstock
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
1-Year Parts Warranty

DELIVERY:
5-Months From Order
