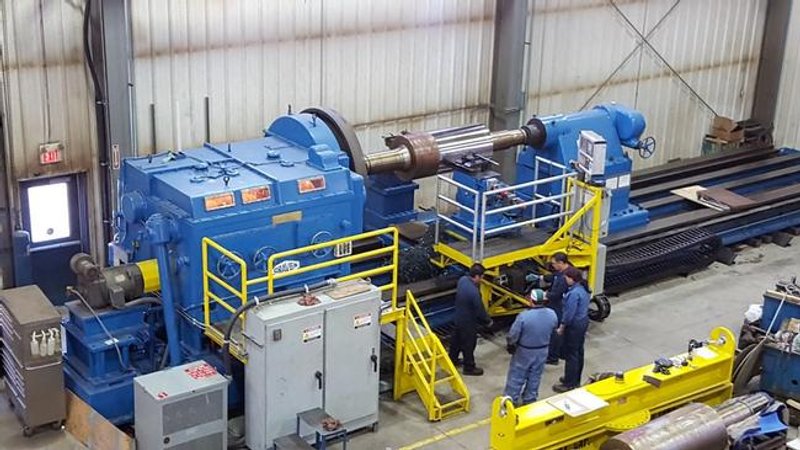

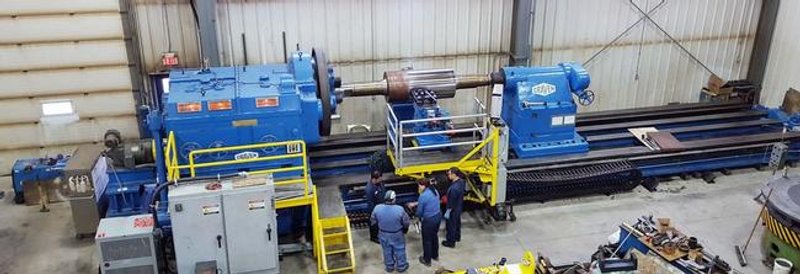

127" X 360" Craven CNC, 75" 4-J, 4-Way Bed, 2 Carr, 75 HP, 80 Ton Cap, Retro '10 #28376

Manufacturer

CRAVEN

Category

Lathes

Type

LATHES, ENGINE

Stock

28376

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #28376

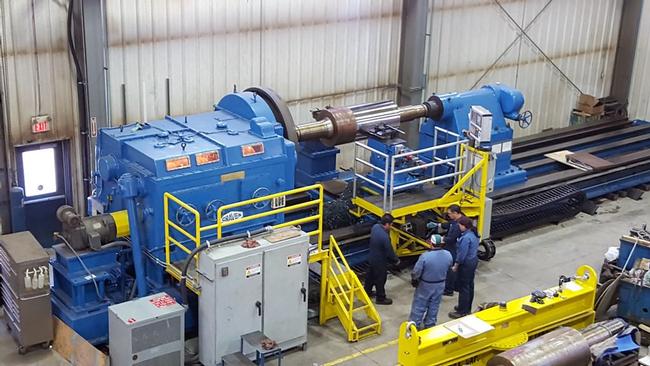

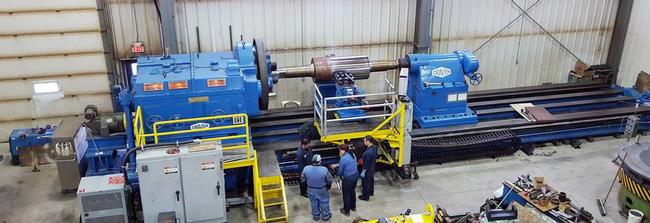

Craven 127" x 360" Heavy Duty 4-Axis CNC Lathe

FEATURES:
Fanuc 0i-TC CNC Control (Retrofitted 2010)
4-Way Bed Construction
2-Carriages
20.5" Head & Tailstock Risers
New Roller Bearings In Headstock In 2005
New Lubrication System, New Pump, Relay Wire, Wirings & Fittings (2005)

CAPACITY:
Maximum Swing Over Bedways ............ 127"
Maximum Swing Over Carriage ........... 88"
Distance Between Centers .............. 360"
Overall Length Of Bed ................. 540"
Width Of Bedways ...................... 90"
Maximum Spindle Speed ................. 62 RPM
Maximum Work Piece Weight ............. 110,156 Lbs
Maximum Work Piece Weight, 1-Steady ... 176,250 Lbs
Main Motor Power ...................... 75 HP
Approximate Floor Space Required ...... 697" L x 132" W
Approximate Overall Weight Of Machine.. 180,000 Lbs

EQUIPPED WITH:
Fanuc 0i-TC CNC Control (Retrofitted 2010)
Operators Remote Pendant

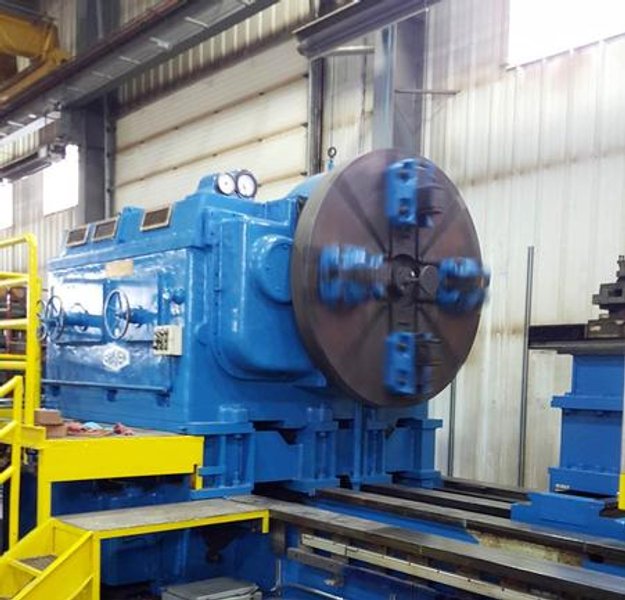

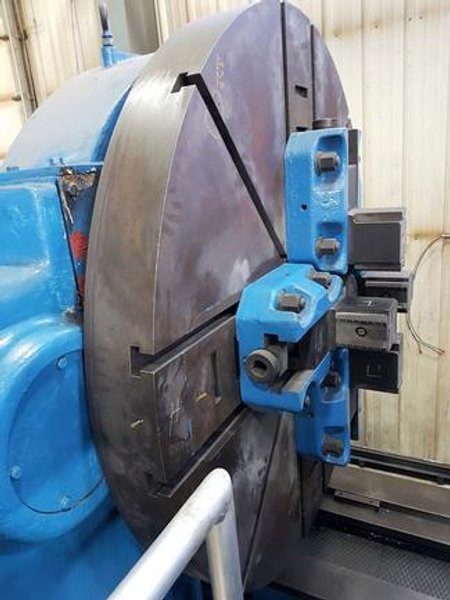

75" 4-Jaw Chuck With 4-Top Jaws
2-Carriages, Front & Rear
Front Carriage With Fanuc Red Cap Servo Motors On Cross Slide & Tool Post
Rear Carriage With Master Setco Servo Slide & Tool Post
4-Way Bed Construction
Heidenhain Scales

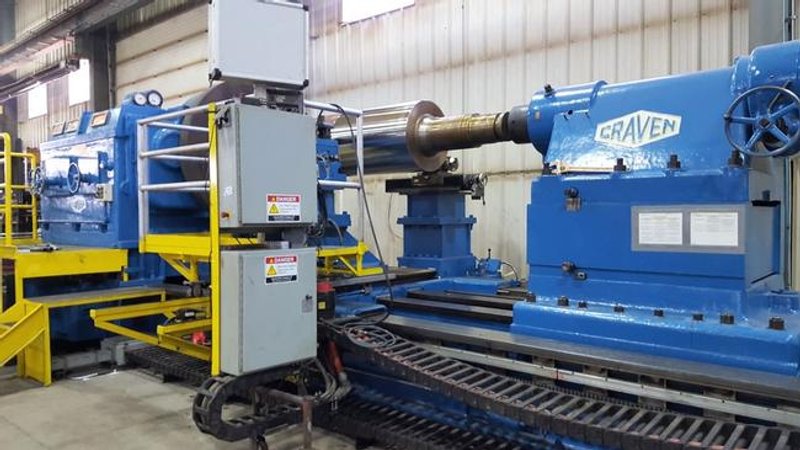

Powered Tailstock, Sits On Center Bedways
(2) 10" - 24" Roller Steady Rests (New 1999)
(2) Work Rests
20.5" Head & Tailstock Risers
(1) Indexable Tooling Riser
(1) Solid Tooling Riser
Threading
75 HP Main Drive Motor

NOTE:
Inspect In Plant Under Power
