192" Farrel, Dbl Col, 202"Swg, 110"U/R, 2-Rams, 35 RPM, 96" Ram Tvl, Rebuilt '10, #27803

Manufacturer

FARREL

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

27803

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27803

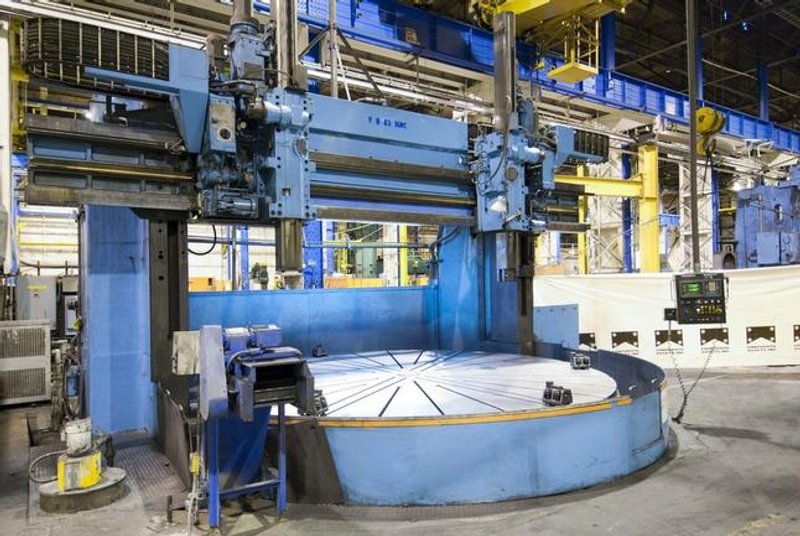

192" Farrel Fixed Rail 4-Axis CNC Vertical Boring Mill
Rebuilt: 2010

FEATURES:
Extended Ram Travel
2-Vertical Rams
125 TON Table Capacity

CAPACITY:
Table Diameter ........................ 192"
Maximum Swing ......................... 202"
Maximum Height Under Rail ............. 110"
Maximum Height Under Tool ............. 103"
Ram Stroke ............................ 96"
Ram Cross Section ..................... 9.5" x 10"
Feed Rate ............................. .04-394 IPM
Feed Rate Per Rotation ................ .00001"-19.7"
Rapid Traverse Rate ................... 157.5 IPM
Table Speeds .......................... .5-35 RPM
Ram Tooling ........................... Sandvik C-6
Table Weight Capacity ................. 125 Ton
Main Motor ............................ 100 HP

EQUIPPED WITH:

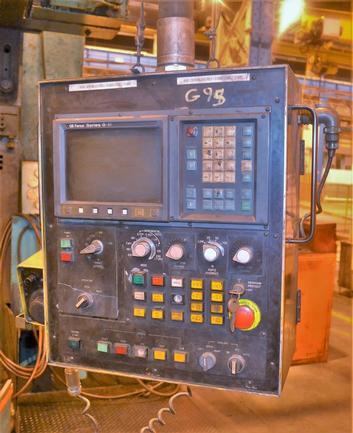

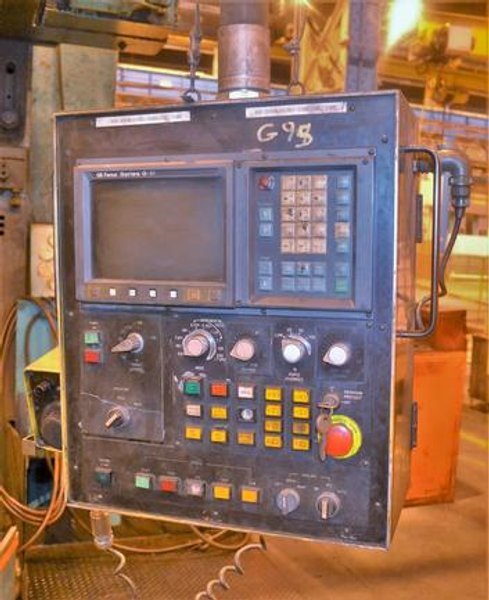

GE Fanuc O-M CNC Control

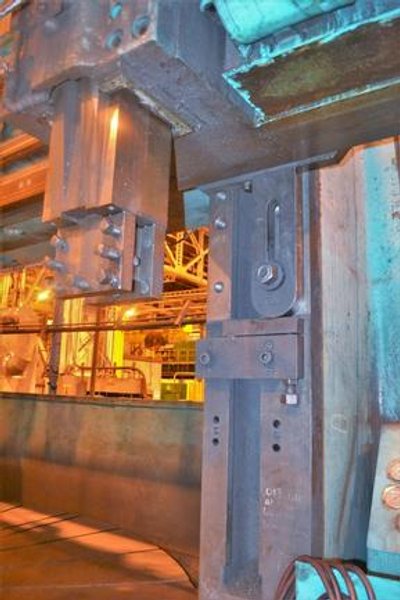

2-Vertical Ram Heads
Extened Ram Travels

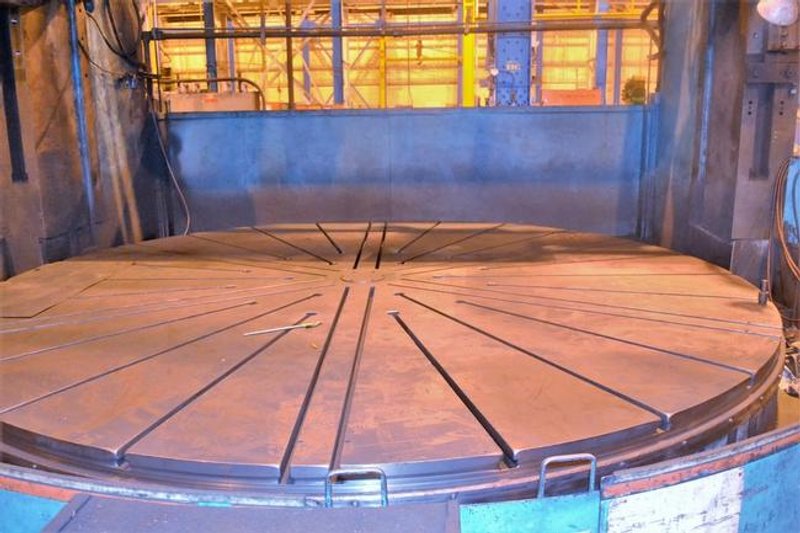

Hydrostatic Table (Rebuilt 2010)
Hardened & Ground Ways
Flood Coolant

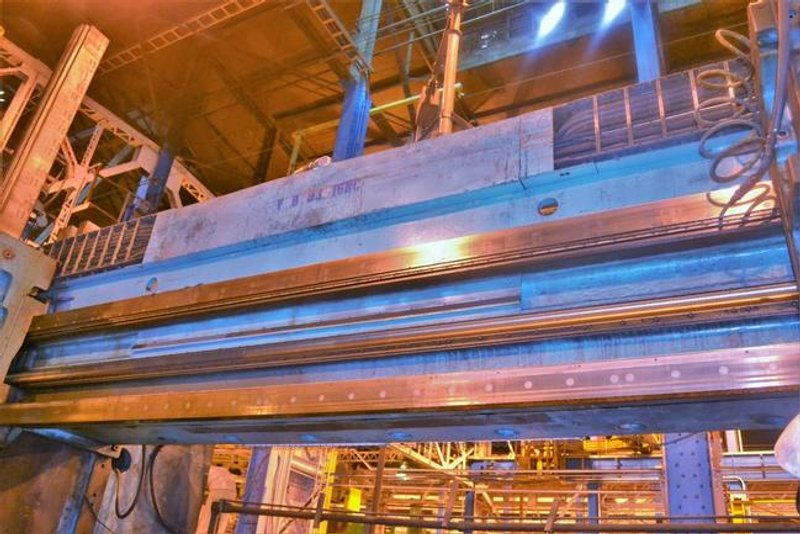

Bellow Type Way Covers on Cross Rail
100 HP Main Motor
Chip Conveyor
No Pit Required

NOTES:
Manufactured in 1969. Retrofit with a GE Fanuc O-M CNC Control. This
Machine was Rebuilt by Machine Tool Research (OEM) in 2010. The Ram Travels
were Extended to 96" and the Hydrostatic Table was Rebuilt.
