196" X 787" Toshiba LCS-40200A, 157" OCS, 350 Ton, 650 HP, F 18i CNC, '77/'08 #26425

Manufacturer

TOSHIBA

Category

Lathes

Type

LATHES, ENGINE

Stock

26425

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #26425

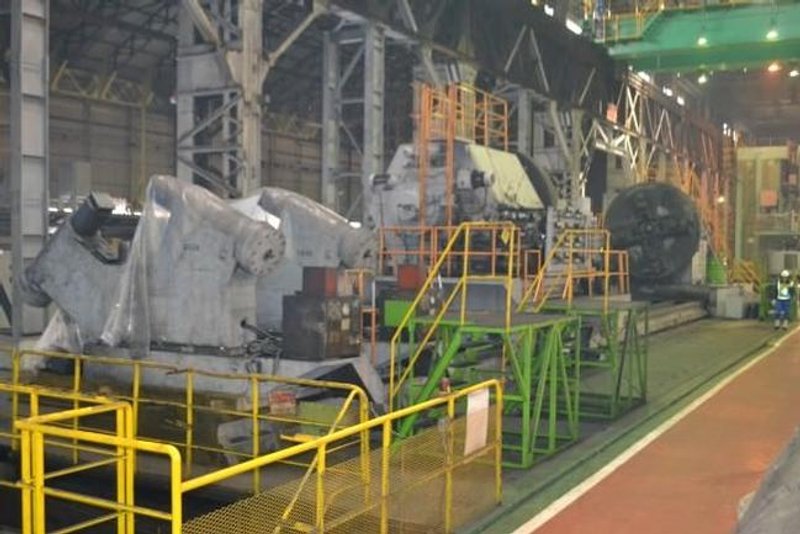

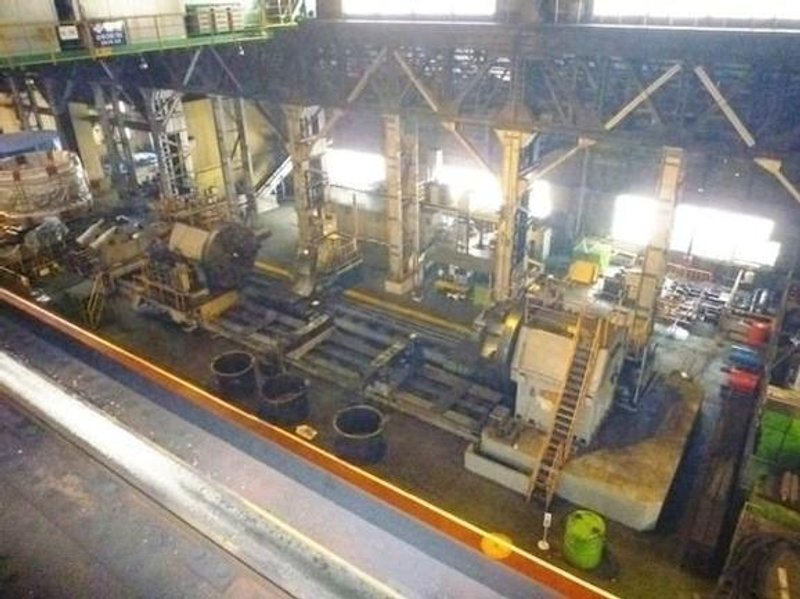

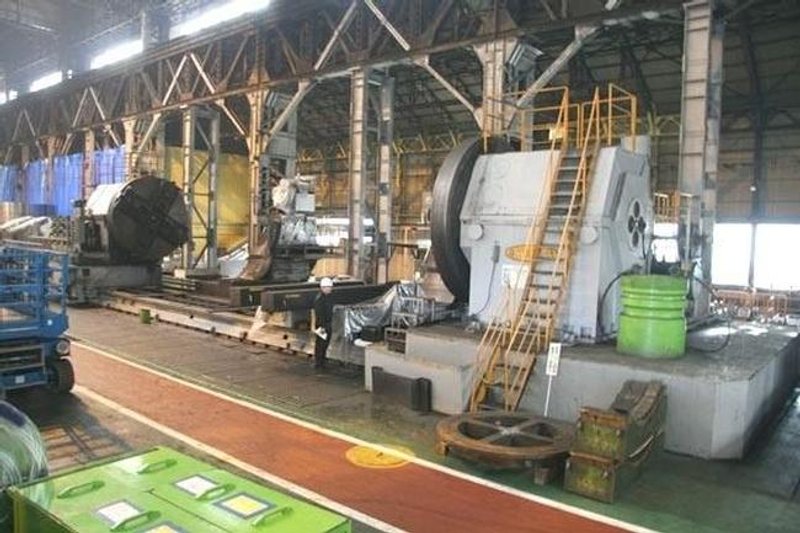

196" x 787" TOSHIBA LCS-40200A Heavy Duty CNC Lathe
Age: 1977 CNC Retrofit In 2009
Model: LCS-40200A

FEATURES:
Designed For Roughing and Finishing Massive Parts
2-Carriages with Operators Controls on Each

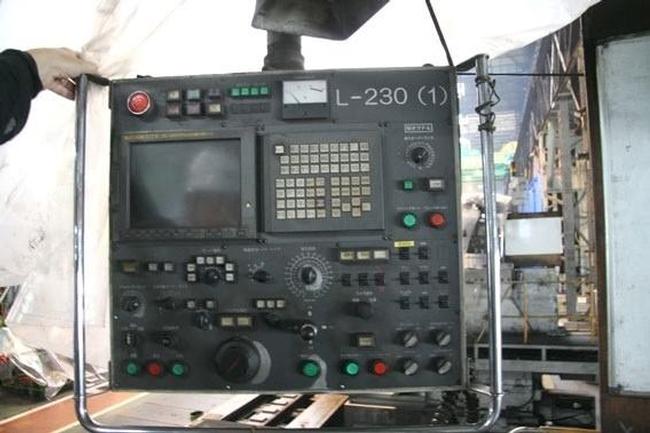

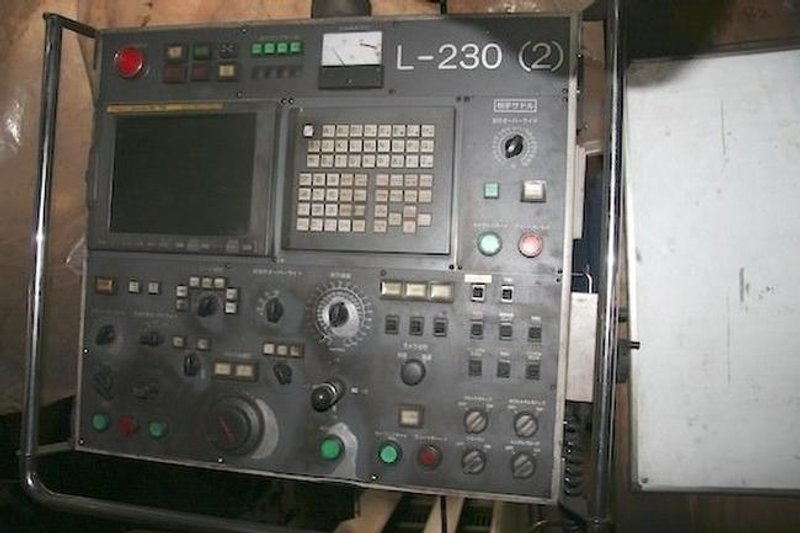

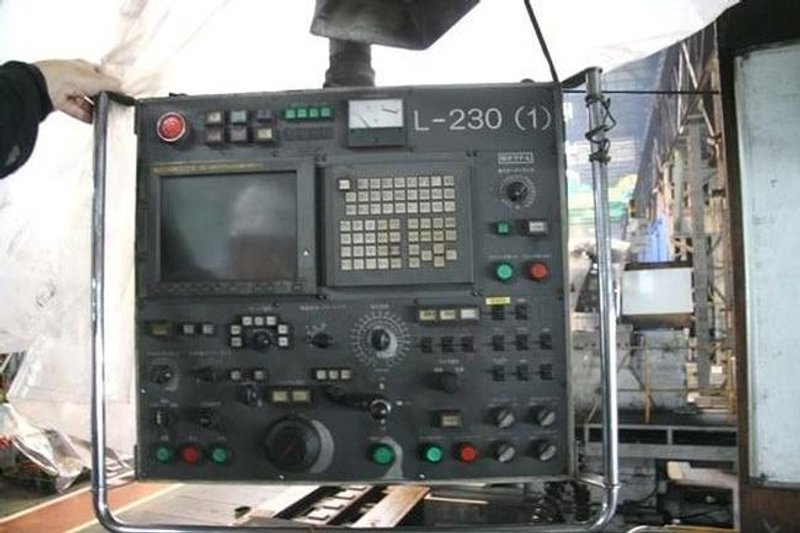

Fanuc 18i TB CNC Control New 2009
350 Ton Weight Capacity
Machine Can Be Operated From Either Carriage

CAPACITY:
Maximum Swing Over Bedways ............ 196.85"
Maximum Turning Diameter Over Carr. ... 157.48"
Distance Between Centers .............. 787.40"
Headstock Faceplate Diameter .......... 137.79"
Spindle Speeds ........................ .4-40 RPM
Maximum Weight of Workpiece ........... 350 Ton
Torque on Faceplate ................... kg-m
Maximum Cutting Force ................. 20,000 kg
Carriage Cutting Feed, Longitudinal ... .0112 to 4.72 IPM
Cross Feed of Carriage ................ .0059 to 2.36 IPM
Carriage Longitudinal Rapid Traverse .. 78.74 IPM
Carriage Cross Rapid Traverse ......... 39.37 IPM
Main Drive Motor ...................... 650 HP
Headstock Slideways ................... 2
Carriage Slideways .................... 3
Machine Dimensions W x L .............. 354" x 1181"
Machine Height ........................ 216"
Approximate Machine Weight ............ 955,000 Lbs

EQUIPPED WITH:
Fanuc 18i TB CNC Control (Retrofit In 2008)
137.79" Diameter Headstock Face Plate
118.11" Diameter Sub-Spindle Face Plate On Tailstock
2-Carriages With Full Operators Controls
Hydrostatic Bearings On Headstock & Tailstock
5-Way Bed 3+2 For Carriage Slide & Tailstock
Chip Conveyor
Coolant System
2-Heavy Duty Steady Rests, 200 Ton Capacity Each

NOTES:
Complete CNC Retrofit in 2009 with All New Electrics
Hydrostatic Bearings In Main & Tailstock Spindles
Tailstock Equipped With Face Plate For Easy Centering
Inspect In Operation Turbine Shaft Machining Operation
Ocean Freight Not Included

No Video Available
