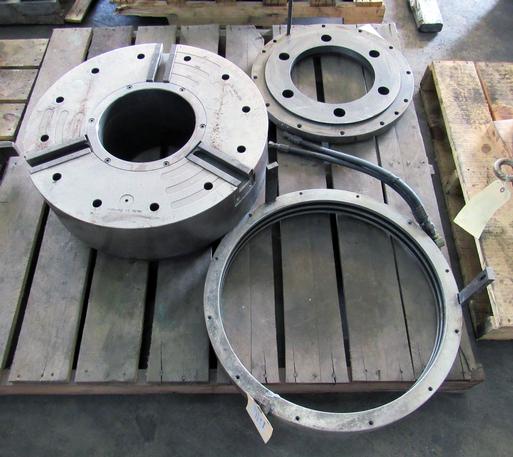

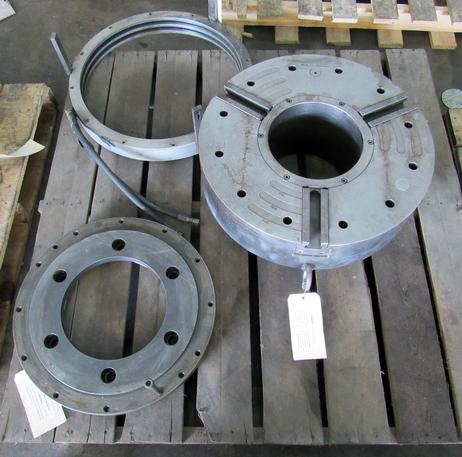

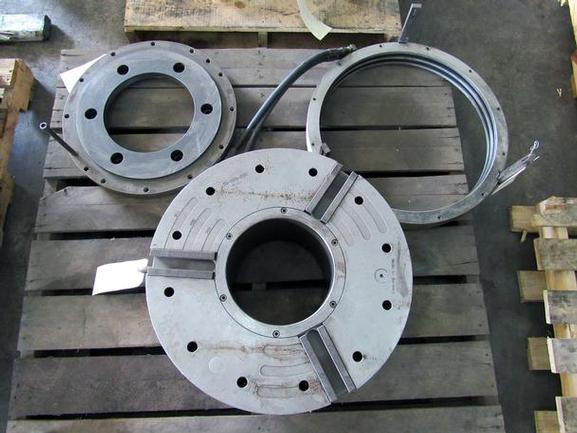

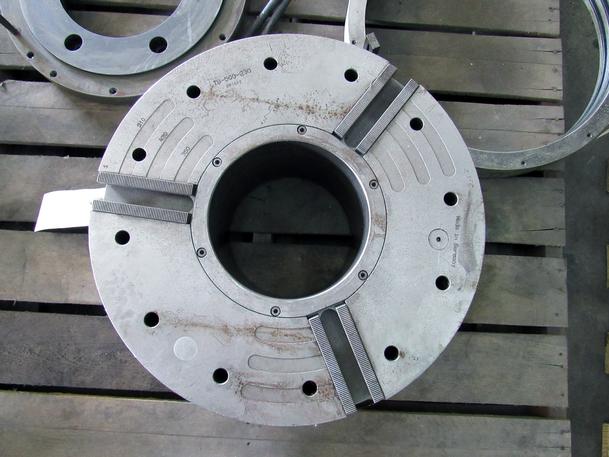

22" Schunk Model ROTA TB 500-230 Pneumatic Steel Chuck, With Adapter Plates

Manufacturer

SCHUNK

Category

Chucks

Type

CHUCKS

Stock

16891

Model

None listed

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

DIAMETER: 22.44" (570 MM) 3-JAW

MODEL: ROTA TB 500-230 PNEUMATIC STEEL CHUCK

MASTER JAW: 8.86" (225 MM) FINE SERRATION

RATED SPEED: 1300 RPM

CLAMPING FORCE: 51,704 LBS. (23,449 KG)

WEIGHT:  595 LBS (270 KG)

EQUIPPED WITH:

ADAPTER PLATES

MADE IN GERMANY



COMMENTS: THE ROTA TB SELF-CONTAINED POWER CHUCK FROM SCHUNCK IS EQUIPPED WITH AN INTEGRATED PNEUMATIC CYLINDER.  THE FORCE TRANSMISSION IS EFFECTED BY THE PROVEN WEDGE HOOK SYSTEM.  THE CHUCK CONTAINS AN AIR SUPPLY SYSTEM ON THE DISTRIBUTOR RING, THEREFORE NO ROTARY FEED-THROUGHS ARE NECESSARY, ESPECIALLY ON MACHINES WITHOUT HYDRAULIC CLAMPING CYLINDERS. THE SIMPLE INTERCHANGEABILITY IS AN ADVANTAGE TO REPLACE MANUAL CHUCKS.
