118" Summit SC3200 VBM, 118"Tbl, 129"Sw, 90.5"UR, 1-92 RPM, L/R Ram, SH, '80, #27847

Manufacturer

SUMMIT

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

27847

Model

SC3200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27847

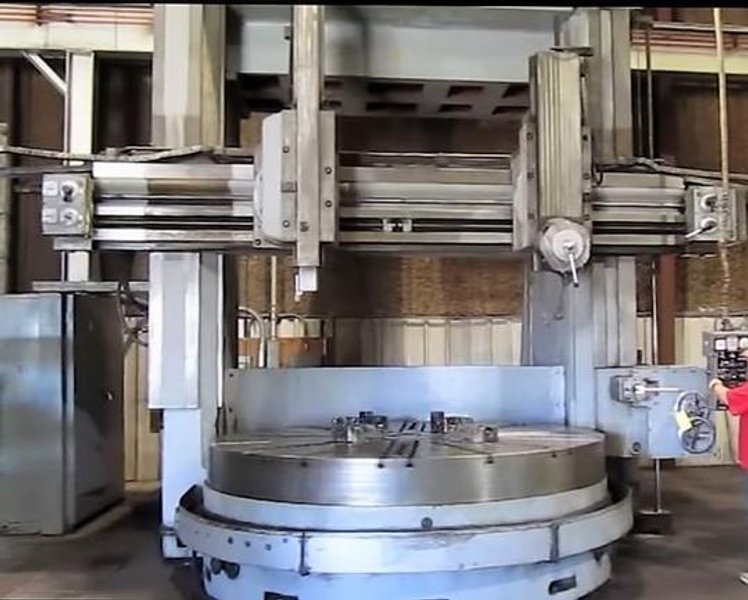

120" Summit Vertical Boring Mill
Age: 1980
Model: SC3200

FEATURES:

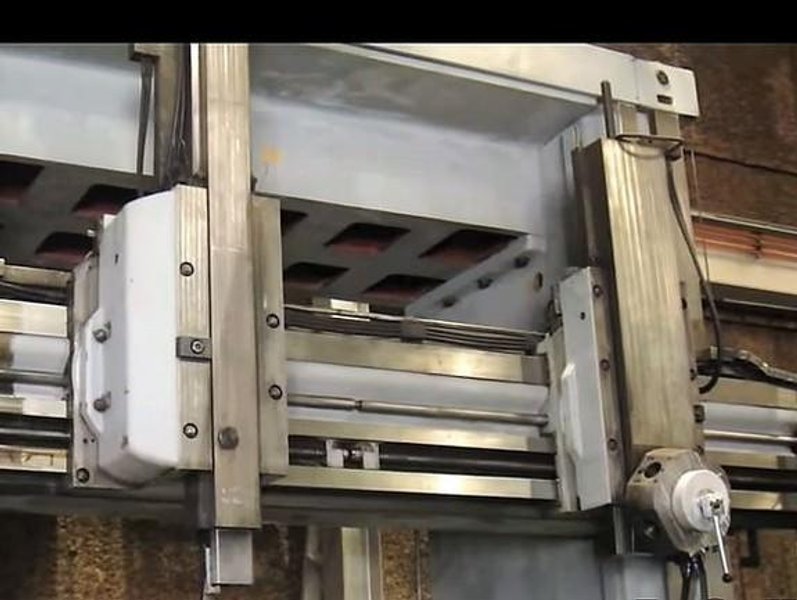

Swivel Left Hand Ram Head
Swivel Right Hand Turret
Right Hand Side Head

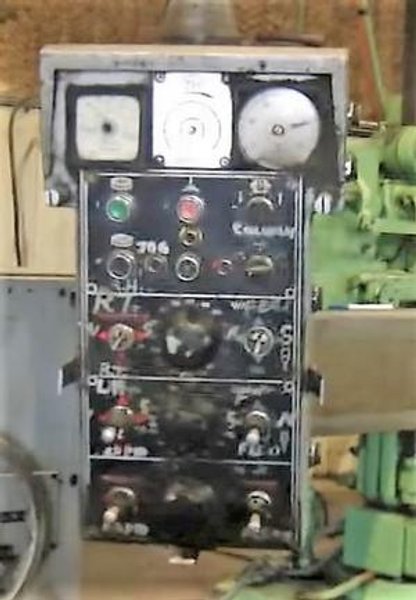

Full Pendant Control

CAPACITIES:

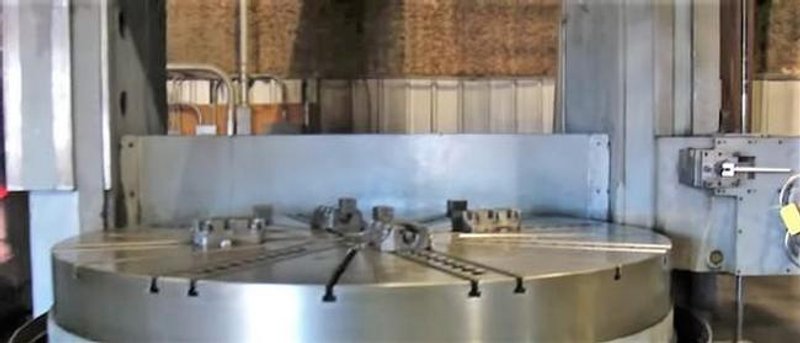

Table Diameter ........................ 118.11"
Max. Swing Capacity w/ Vertical Head .. 129"
Maximum Swing with Side Head .......... 124"
Maximum Turning Height on Table ....... 90.5"
Minimum from Rail to Top of Table ..... 12.5"
Maximum from Rail to Top of Table ..... 90"
Maximum Work Piece Weight ............. 40,000 Lbs.
Turret Stroke ......................... 30"
Ram Stroke ............................ 47.25"
Swivel of Each Vertical Head .......... 35 R - 35 L
Table Speeds(Inf Variable) ............ 1-92 RPM
Feeds (16) ............................ .002-.200 IPM
Rapid Traverse ........................ 118 IPM
Approximate Dimensions ................ 208" x 220"
Overall Height ........................ 212"
Approximate Weight .................... 105,000 Lbs.

EQUIPPED WITH:
Full Pendant Controls
Right Hand (5) Position Turret

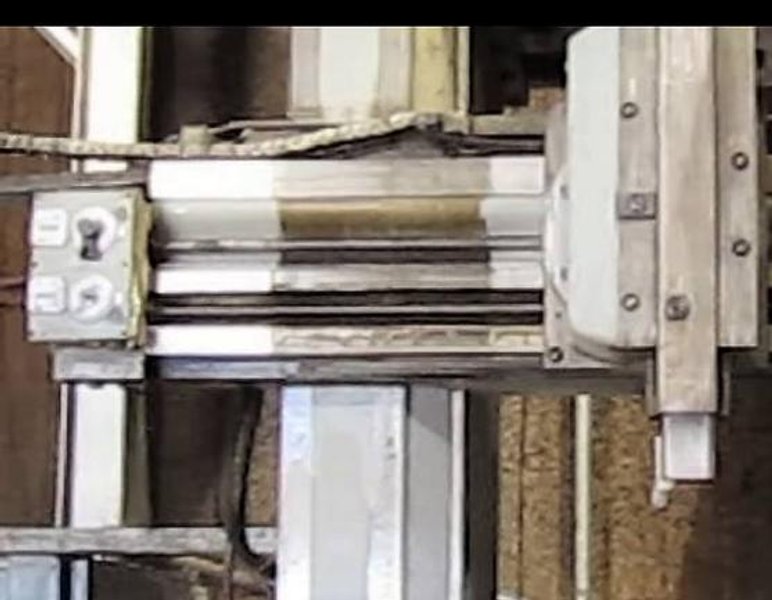

Left Hand Ram
Side Head
65 HP DC Table Motor
