144" X 60' Betts, 124" Swing Over Carriage, 200 Ton Weight Capacity, #27684

Manufacturer

BETTS

Category

Lathes

Type

LATHES, ENGINE

Stock

27684

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27684

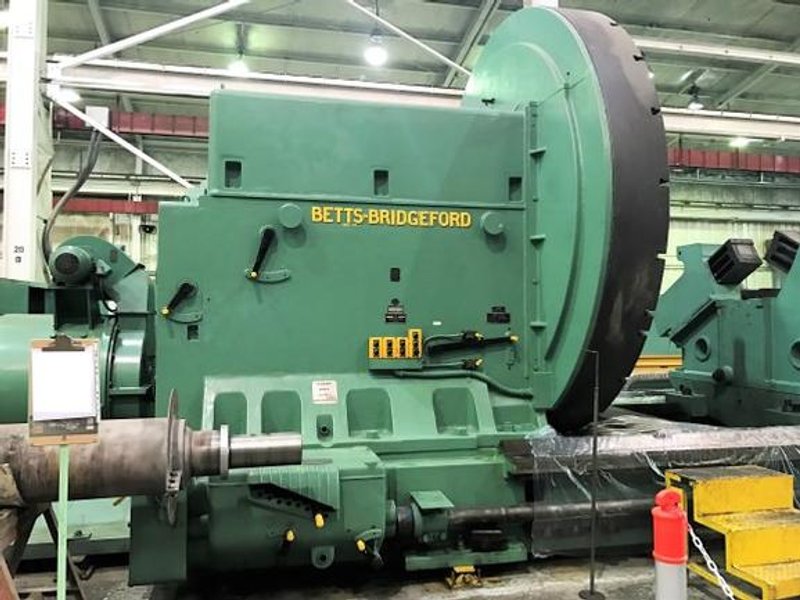

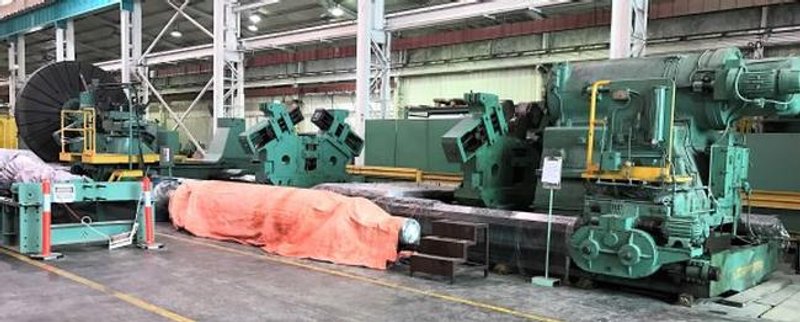

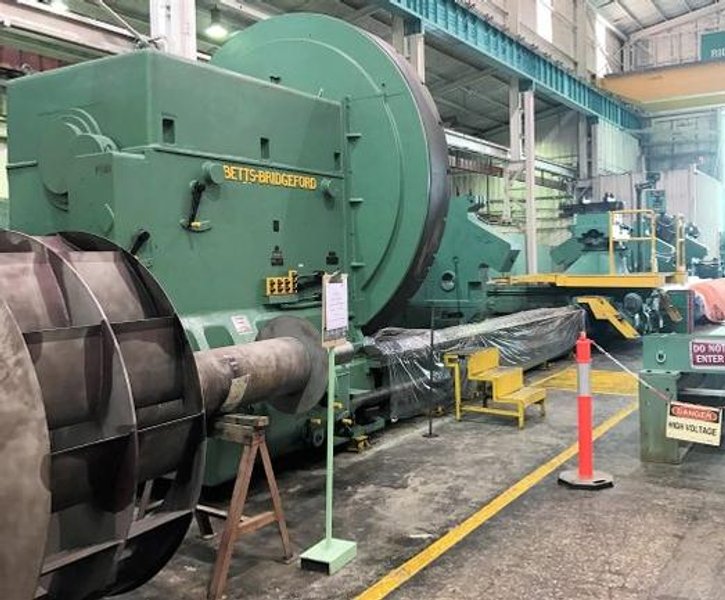

144" x 60' Betts Engine Lathe
Age: 1955 New Electrics In 1988
Model: Heavy Duty
Serial Number: E-8302

Maximum Swing Over Bedways ............ 158"
Maximum Swing Over Carriage Wings ..... 124"
Distance Between Centers .............. 720"
Carriage Top Slide Travel ............. 22"
Cross Slide Travel .................... 72"
Carriage Length on Bedways ............ 108"
Carriage Bridge Width ................. 32"
Bed Width Over Outer Ways ............. 115"
Bed Length ............................ 941"
Weight Between Centers, Unsupported ... 200 Tons
Weight Capacity w/Steady Rests ........ 325 Tons
Speeds: (Low) ......................... .5-15 RPM
(High) ........................ 2-60 RPM
Threading Range ....................... 1/2-56 TPI
Tailstock Quill Diameter .............. 28"

Equipped With:
144" Diameter Face Plate Chuck w/Jaws
Full Length Lead Screw Threading
Taper Attachment w/Power Positioning Motor
4-Axis Sony Digital Readout System w/Scales
Angular Swivel on Compound & Carriage

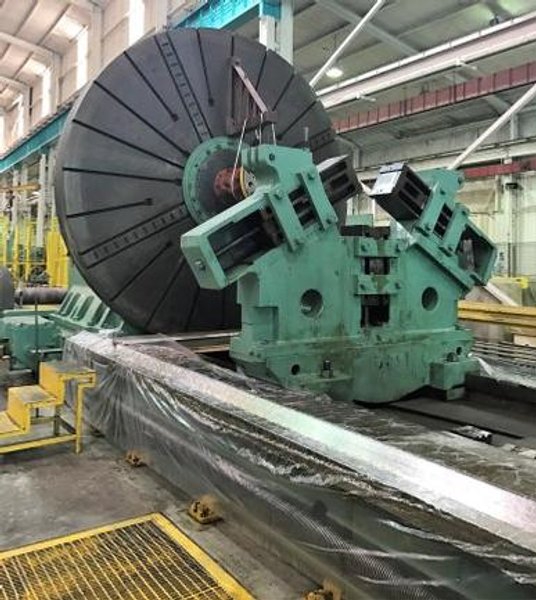

3-Bronze Tipped Steady Rests 9" to 48" Capacity
60 Ton Steady Rest Capacity
Motorized Positioning of Carriage
Front and Back Carriages
Operators Platform with Pendant Operators Station
Right Hand and Left Hand Spindle Rotation
Motorized Quill
Farval Lubrication System
Full Length Chip Conveyor,
Coolant System
Hardened Ways on Bed & Carriage
Heavy Duty Casted Bed
Siemens Simoreg Microprocessor DC Drive S5-115U
Simatic S5 Programable DC Controler 460/230 Volt
200 HP Main Motor 230 Volt DC

All New Siemens Electrics In 1988

Originally Built For Turbine Mfg.
