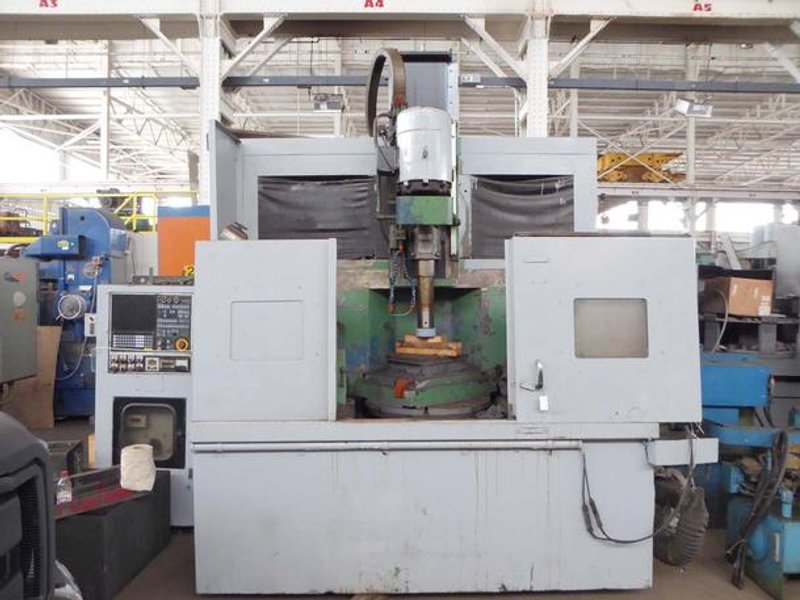

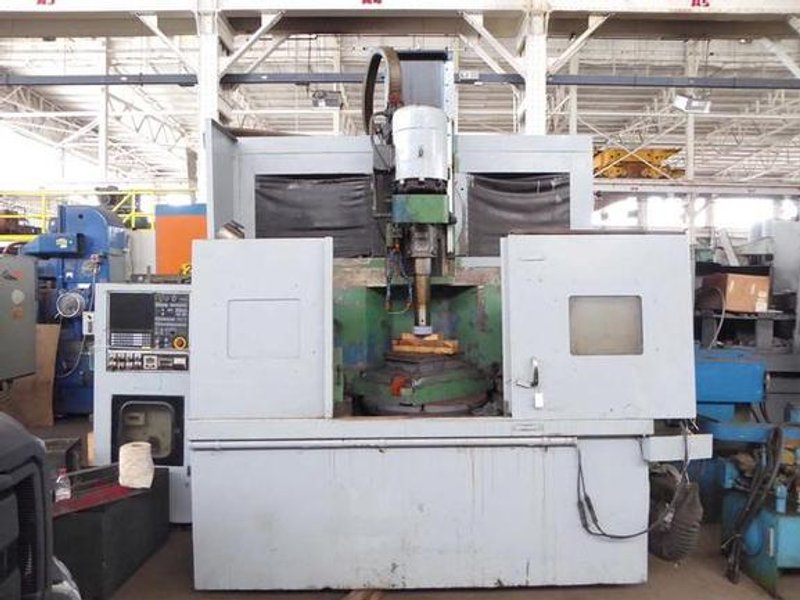

Springfield VGC 25 Univ Vertical Spindle Grinder, Rebuilt w/New A/B PLC System, Warranty

Manufacturer

SPRINGFIELD

Category

Grinding Machines

Type

GRINDERS, VERTICAL UNIVERSAL, CNC

Stock

4230

Model

VGC 25

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Table:

25" Standard Diameter of Table

35" maximum Swing

1-175 Work Spindle RPM

8"-A2 Work Spindle Nose

Vertical Slide:

21" Standard Vertical Slide Stroke

2-180 IPM Vertical Slide Traverse Rate

4.5" Grinding Spindle Mounting Diameter (Cartridge Style)

0-45 Deg Vertical Slide Angle Adjustments (Left or Right)

.0002 Minimal Feed Increment w/ positive stop screw

18" Nominal Hole Depth

20" Standard Clearance over Work Table

6-7/8 x 1" Maximum Wheel Size

10 HP Grinding Motor Horsepower

3-30 IPM Horizontal Traverse Rate

.0002 to .003 Horizontal feed Rate on Diameter (IPM)

Equipped:

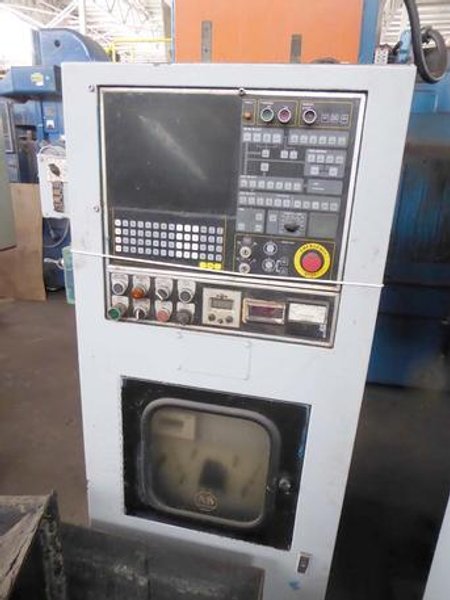

Rebuilt with 1 Year Warranty including New Fanuc CNC Control and Drives

Complete scope of work available upon request



Machine can be purchased is for $49,000.00 USD, FCA Jackson, MI
