51" X 157" Microcut, 38.5" Cross Slide, Fanuc Oitd CNC Ctrl, New Machine, 2016, #26841

Manufacturer

MICROCUT

Category

Lathes

Type

LATHES, ENGINE

Stock

26841

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #26841

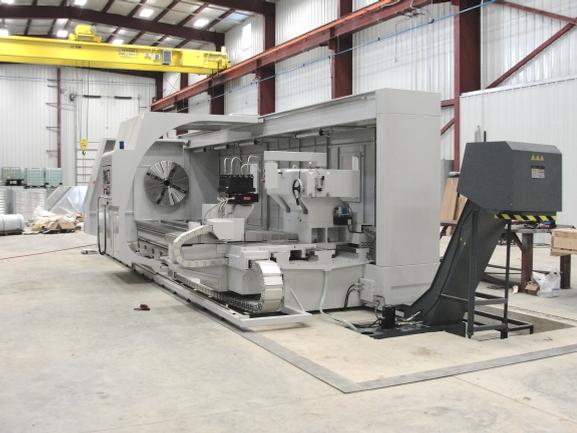

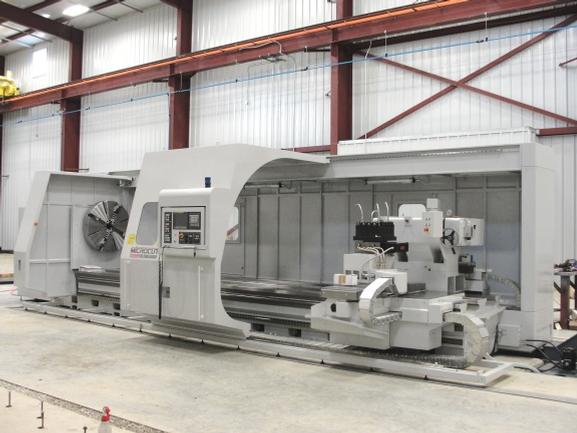

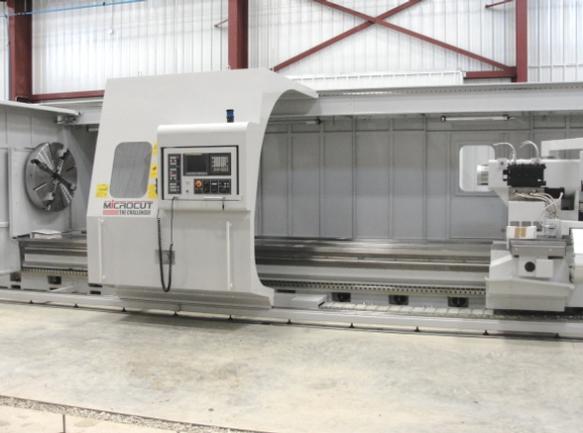

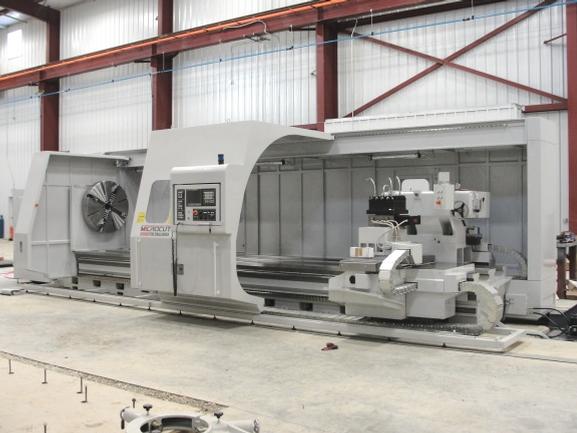

51.18" x 157.48" Microcut BNC 5000 x 4M CNC Lathe
Age: New
Model: BNC 5000 x 4M

FEATURES:
Brand New Machine, 9-Month Delivery
Fanuc 0i-TD CNC Control with Manual Guide

CAPACITY:
Swing Over Bed ........................ 51.18"
Swing Over Cross Slide ................ 38.58"
Overall Bed Width ..................... 47.24"
Maximum Turning Length ................ 157.48"
Maximum Weight Between Centers ........ 22,000 Lbs.
Weight Capacity with 2-Steady Rest .... 33,048 Lbs.
X-Axis Travel ......................... 32.08"
Z-Axis Travel ......................... 236.22"
Spindle Speeds, 2-Ranges (Variable) ... 1-735 RPM
Spindle Bore .......................... 6.02"
Spindle Nose Mount .................... A2-11
Spindle Drive Motor (220 Volt) ........ 80 HP / 100 HP
Quill Diameter ........................ 9.44"
Quill Stroke .......................... 9.05"
Quill Taper ........................... #6 MT
Approximate Weight .................... 60,000 Lbs.

EQUIPPED WITH:

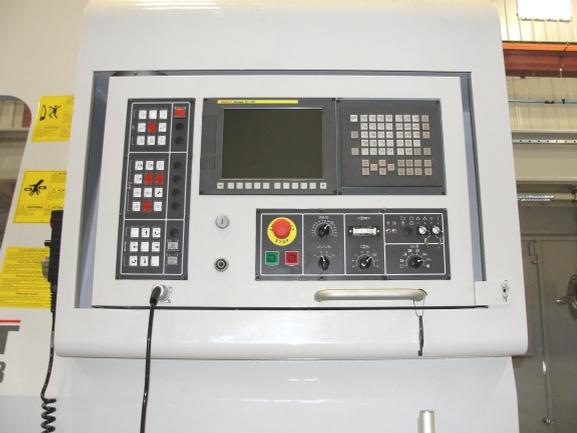

Fanuc 0iTD CNC Control with Manual Guide i
RS 232 Communication Port
Fanuc Package Servo Motor (Spindle & Axis Servo Motors)
HP-350 Heavy Duty 4-Position Turret (VDI)
Auto Spindle Speed Changer
Traveling Front Single Door Interlocked with Carriage
Turcite B on Carriage Way
Automatic Lubrication System
Chip Conveyor w/ Wash Down (157.48" Long)
Coolant System
(1) Roller Steady Rest (1.9"-15.74")
(1) Roller Steady Rest (19.96"-23.63")
Operation Manuals, Electric Schematics, Programming Manual

WARRANTY:
Full 1-Year Parts and Labor Warranty on Machine
Full 2-Year Parts and Labor Warranty on CNC Control

DELIVERY:
9-Months From Order
