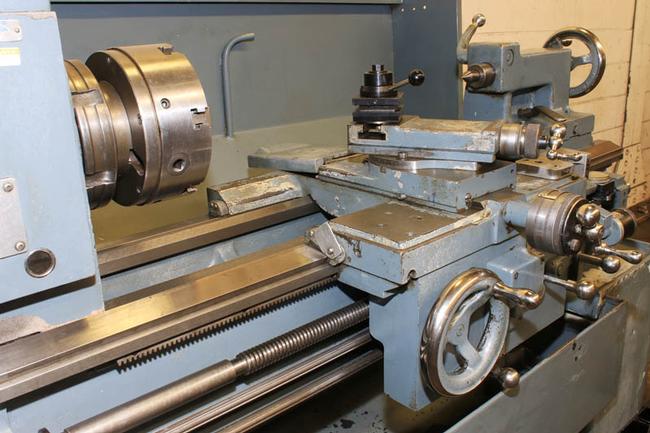

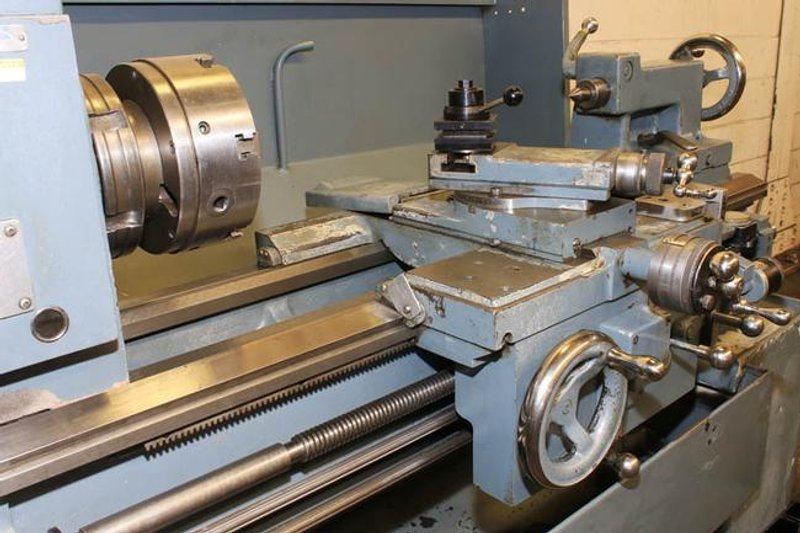

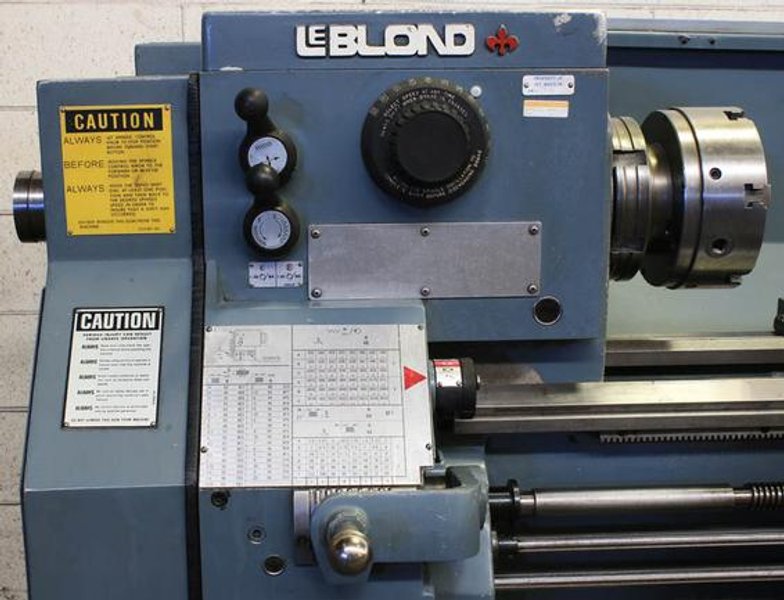

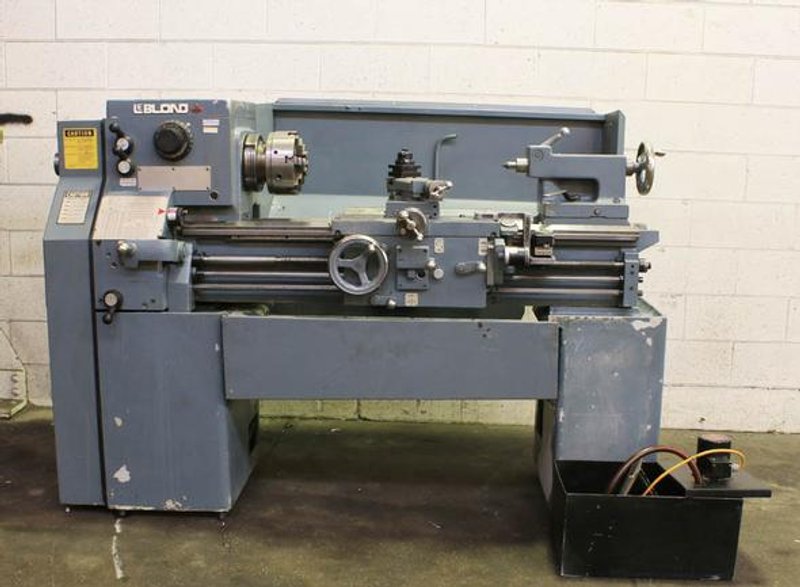

15" X 30" LeBlond Servo Shift, '83, 15.5"Sw, 30"Ctrs, DRO, 5C Collet, Tlstk w/Live Center, (2)

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

32425

Model

None listed

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

15" x 30" LEBLOND SERVO SHIFT ENGINE LATHE

MODEL: 15" REGAL, S/N: 12C-550, NEW: 1983
SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 30"
SPINDLE NOSE ...................... L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1,800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 80"L x 40"W x 51"H

EQUIPPED WITH:
NEWALL TWO AXIS DIGITAL READOUT
LEVER TYPE 5C COLLET CLOSER
TAPER TURNING ATTACHMENT
THREAD DIAL INDICATOR
LIVE CENTER FOR TAILSTOCK
COOLANT SYTEM WITH REMOVEABLE CHIP PAN
7-1/2 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR THREE PHASE 220 VOLT OPERATION
