14" X 20" Shigiya High Prec ID/OD, '86, 8"Swing, 20"Ctrs, 14"Grind Whl, Attachments, Pwr Tbl

Manufacturer

SHIGIYA

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL

Stock

32418

Model

None listed

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

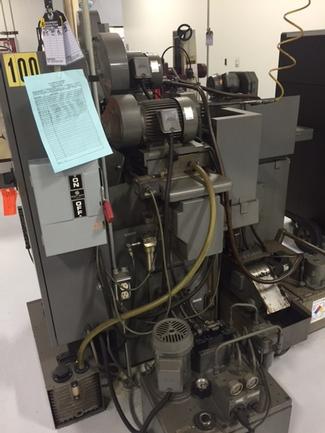

8" X 20" SHIGIYA (JAPANESE) HIGH-PRECISION
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

MODEL: GUA-20-50 S/N: 20337 NEW: 1986

SPECIFICATIONS:
SWING ............................... 8"
DISTANCE BETWEEN CENTERS ............ 20"
LONGITUDINAL TABLE SPEED ............ 2" TO 160" IPM
TABLE SWIVELS, WHEELHEAD SIDE ....... 9 DEG.
OPERATOR SIDE ........ 5 DEG.
MAX. STROKE OF WHEELHEAD ............ 8- 1/2"
MAX. AUTO INFEED STROKE ............. 0.3"
AUTO INFEED RATE .................... 0.00008" TO .008"
PLUNGE INFEED ....................... 0.0016" TO .12"
POWER RAPID WHEELHEAD ADVANCE
& RETRACTION STROKE ................. 0.80"
HANDLE FEED, ONE REV. ......... ..... 0.01"
HANDLE FEED, ONE DIVISION ........... 0.0001"
FINE FEED, GRADUATED TO ............. 0.00004"
WHEELHEAD SWIVELS ................... 15 DEG. L & R OF CENTER
GRINDING WHEEL SIZE ................. 14" DIA. X 1"-2"W
` X 5" BORE
GRINDING WHEEL SPEEDS (2) ........... 1,600/1,880 RPM
WORKHEAD SPINDLE TAPER .............. #2 MT
WORKHEAD SPINDLE SPEEDS (9) ......... 77 TO 650 RPM
WORKHEAD SWIVELLING RANGE (TOTAL) ... 120 DEG.
TAILSTOCK SPINDLE TAPER ............. #2 MT
TAILSTOCK SPINDLE TRAVEL ............ 0.79"

APPROX. MACHINE WEIGHT .............. 4,680 LBS.
FLOOR SPACE REQUIRED FOR OPERATION .. 8' x 6'

EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE
COOLANT SYSTEM WITH MAGNETIC SEPARATOR

MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-ADJUSTABLE TABLE DWELL
-AUTO INFEED
-PLUNGE INFEED (DUAL RATE) (COARSE & FINE)
-RAPID WHEELHEAD ADVANCE & RETRACTION
INDEPENDENT SPARKOUT TIMERS FOR AUTO INFEED & PLUNGE CYCLES
GRINDING OPERATIONS (UP TO 30 SECONDS)
FINE FEED (MICROFEED) KNOB FOR INFEED
WHEELHEAD FEATURES HYDROSTATIC BEARING DESIGN
(AUTO-PRESSURE LUBRICATED)
EXTERNAL HYDRAULIC SYSTEM
OIL COOLER UNIT
AUTOMATIC LUBRICATION SYSTEM
DUAL LIVE/DEAD WORKHEAD SPINDLE
SWIVELLING WORKHEAD (O TO 120 DEGREES)
5 H.P./3/60/230-460 VOLT WHEELHEAD MOTOR



** INSPECT UNDER POWER **
** EXCEPTIONAL CONDITION & APPEARANCE **
