40,000 Lb. X 60" American Steel Line Uncoiler Straightener Combination

Manufacturer

AMERICAN STEEL LINE

Category

Recoilers/Uncoilers

Type

UNCOILERS

Stock

6872

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

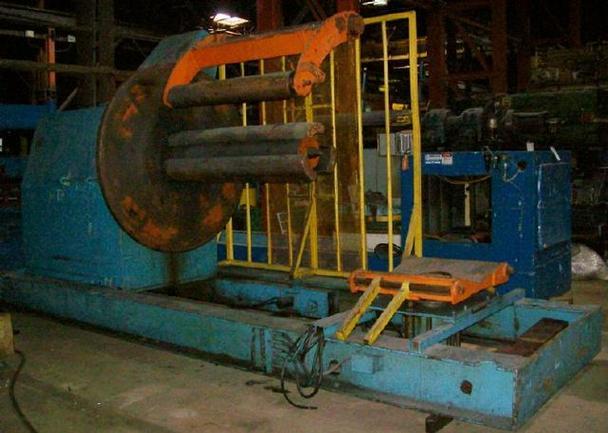

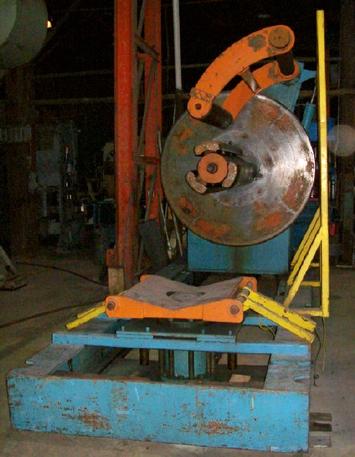

UNCOILER:

MODEL #:  1000

SERIAL #:  5867

19"-24" ID

72" OD

60" MANDREL LENGTH

TRAVELING REEL WITH COIL LIFT

HYDRAULIC EXPANSION

MOTORIZED WITH AIR CLUTCH AND BRAKE

FULL BACKER PLATE

60" SNUBBER ROLL

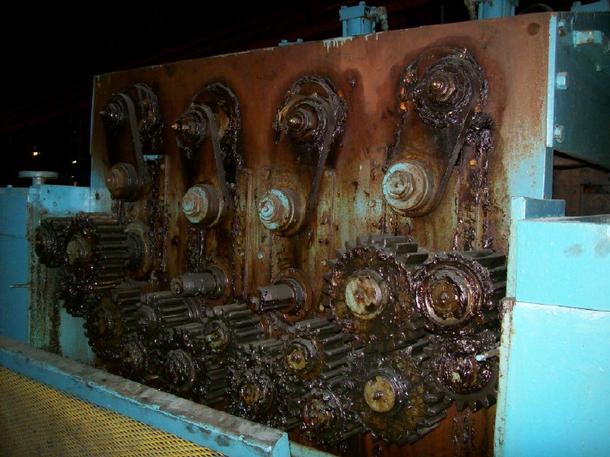

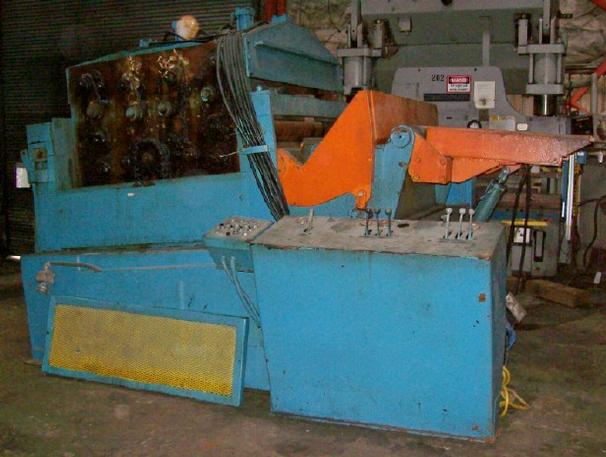

STRAIGHTENER:

MODEL #:  5-5

SERIAL #:  5917

.120" - .200" CAPACITY AT 60" WIDTH

.120" - .260" CAPACITY AT 36" WIDTH

(5) 5" DIAMETER STRAIGHTENING ROLLS

HYDRAULIC ADJUSTMENT ON UPPER ROLLS

8" DIAMETER  ENTRY AND EXIT PINCH ROLLS

UPPER ROLLS HYDRAULICALLY DRIVEN

BOTTOM AND PINCH ROLLS POWERED INDIVIDUALLY

END DE-BENDER



** A NEW SERVO FEEDER IS BEING SOURCED TO MAKE THIS A COMPLETE MATCHED FEED LINE

PEELER TABLE


40 HP MOTOR AND CONTROLS
FOR ADDITIONAL $100,000
