Daewoo Mynx 500 Vertical Machining Center

Stock

3931

Model

MYNX 500

Dealer Location

Ohio

Spec Sheet

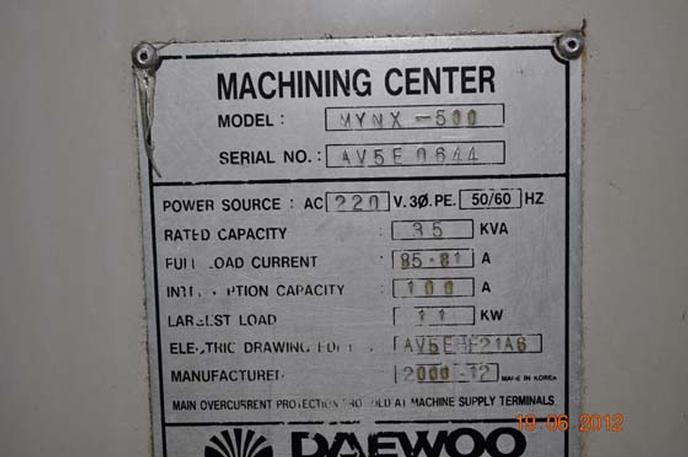

MODEL:  MYNX 500

SERIAL #:  AVSE0644

YEAR:  2000

47" x 20" TABLE

X AXIS 40"

Y AXIS 20"

Z AXIS 22"

8000 RPM

8"-30" SPINDLE NOSE TO TABLE

TAPER CAT 40

24 ATC

20 HP DRIVE

X & Y AXIS RAPID TRAVERSE   945 IPM

Z AXIS RAPID TRAVERSE  787 IPM

CUTTING FEED RATE:  .04-315 IPM

MAXIMUM LOAD ON TABLE 1760 LBS

COOLANT

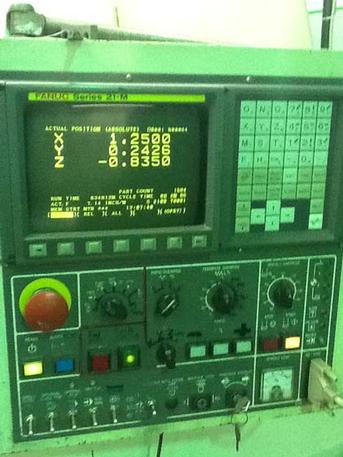

FANUC SERIES 21-M CONTROLLER

CHIP CONVEYOR

MOTOR:  20 HP, 240/480 VOLTAGE, 60 CYCLES, PHASE 3

APPROX. DIMENSIONS:  126" x 107" x 125" H

APPROX. WEIGHT:  15,400 LBS

VERY GOOD CONDITION
