46" X 252" LeBlond 4625, 25" O/C, 650 RPM, Heidenhain CNC, Steady Rests, 75 HP, #25094

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

25094

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25094

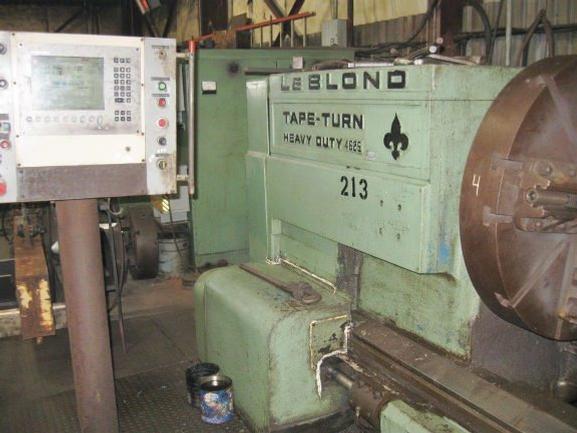

46" x 252" LeBlond 4625 Heavy Duty CNC Lathe

FEATURES:
Heidenhain Manual Plus M CNC Control (Retrofit 2004)

CAPACITY:
Maximum Swing Over Bedways ............ 46"
Maximum Swing Over Carriage ........... 25"
Distance Between Centers .............. 252"
Bed Width ............................. 42"
Spindle Speeds: (6) Ranges ............ 3-650 RPM
Spindle Motor ......................... 75 HP
Tailstock Quill Dia. .................. 8"
Machine Dimensions (Approx.) .......... 365" x 87"

EQUIPPED WITH:
Heidenhain Manual Plus M CNC Control (Retrofit 2004)

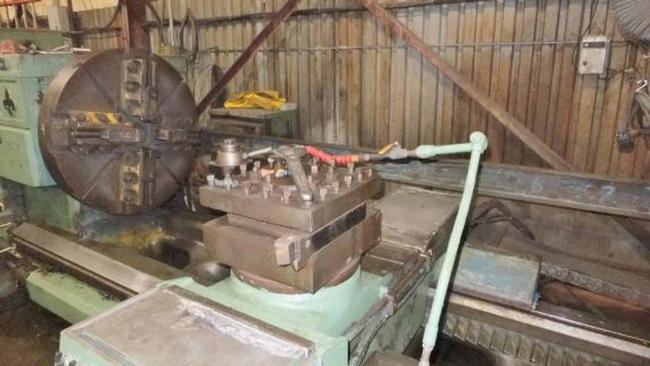

36" Diameter Face Plate Chuck W/4-Jaws
4-Way Power Indexing Turret
Hardened & Ground Steel Ways
(3) Roller Type Steady Rest
New Ballscrew in 2004
Full Length Chip Conveyor
75 HP Spindle Motor

NOTE:
Inspect In Plant Under Power!
