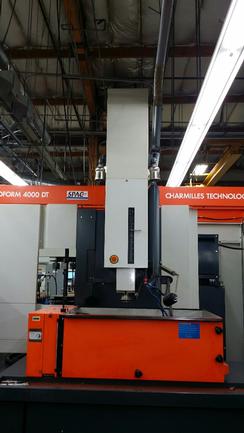

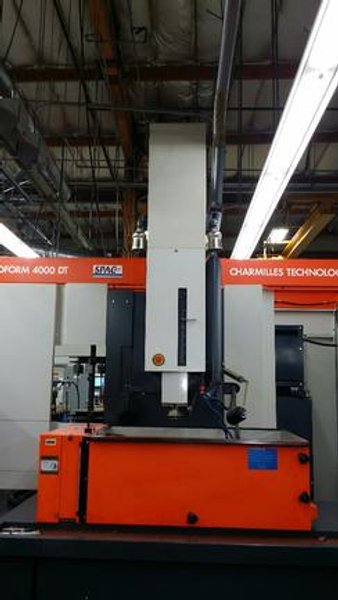

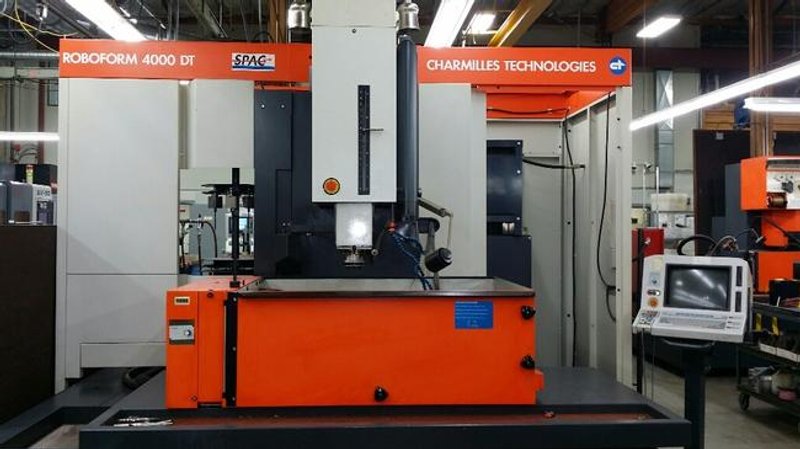

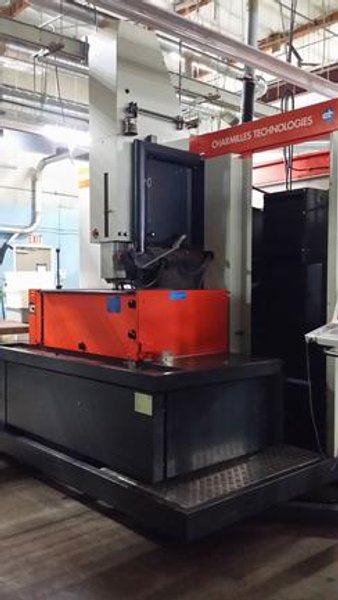

Charmilles 4000DT Ram/Sinker EDM, C-Axis, 40 Sta ATC, '97, 18x12x16", 3R Tlg Pkg, #32371

Manufacturer

CHARMILLES

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, (Ram Type, Sinker)

Stock

32371

Model

4000DT

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

Charmilles Roboform 4000 DT Sinker EDM
Year: 1997

Specifications:

Travels:
X-Axis: 17.7"
Y-Axis: 12.5"
Z-Axis: 16"

Work Tank: 44.4" x 31.4"
Table Dimensions: 34.6" x 22"
Electrode Max. Weight: 1,102 LBS
ATC (Rotary Style) 40 Position

Equipped With:
Charmilles CNC Control
High Inertia C-Axis Option
40 Station Rotary Electrode Tool Changer

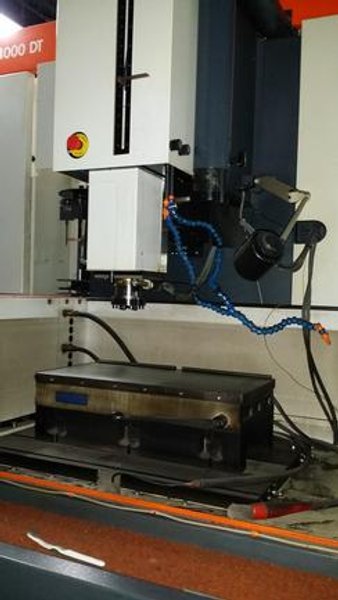

Magnetic chuck on the table
Fire Extinguisher System

Dielectric Chiller (2 Ton)
DNC-3 Communications
Enhanced M-Functions
Extreme High Accuracy, 0.5 um Postion Resolution with Glass Scales
Large Dielectric Capacity with 6 Filters

System 3R Tooling Package:
3R-13.321: (12) Square Holder with 20mm Electrode
3R-321-46: (2) Mini Blocks
(2) Mini Blocks with Quick Release
3R-A3620: Adaptor Plate
3R-321.5: Manual Chuck
3R-321.4: Indexing Chuck (Additional $2k)
3R-653: Large Assortment - Manual Chuck Mini Macro
3R- 322/50E: Many Electrode Holders

Less than 7,900 Hours
