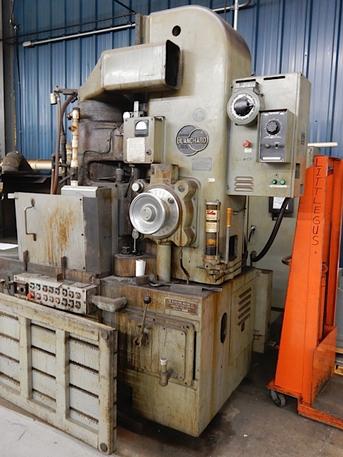

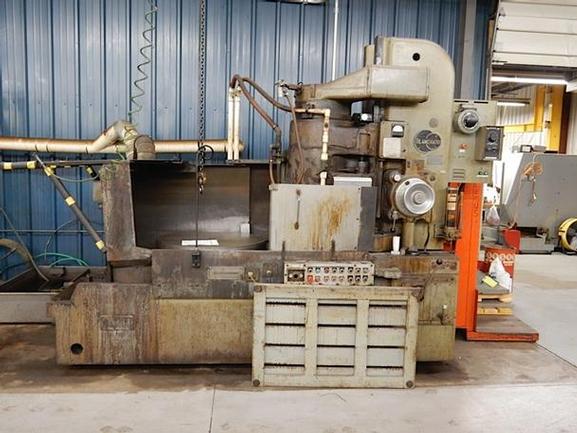

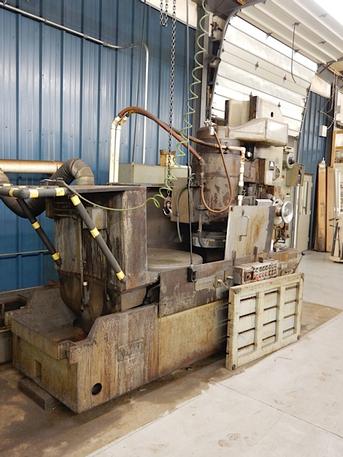

36" Blanchard #20C-36, 30 HP, 18-21" Vertical, #4453, 1971

Stock

4453

Model

20C-36

Dealer Location

Michigan

Spec Sheet

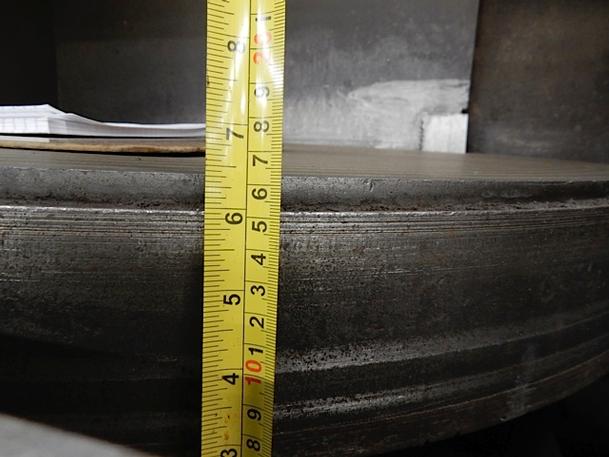

36" Magnetic Chuck Diameter, Chuck Life .406"

18-21" Range Over Chuck With New Wheel (to be verified)

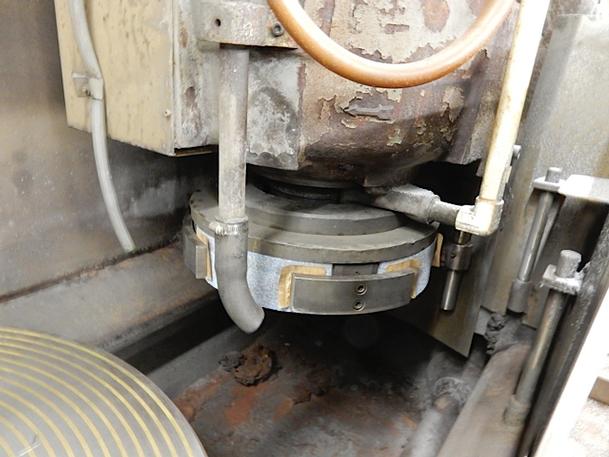

20" Diameter of Wheel Chuck, Cortland Segmented Style

720 RPM Wheel Speed

(6) Ranges of Chuck Speeds, 6, 7, 10, 15, 20, 25 RPM

40 HP, 3 Phase, Spindle Motor, 3/60/380V,725 RPM

Automatic Downfeeds Feed 0.004 - 0.080 IPM

Wet Base Design

Floor Space 11'8"L x 8'4"W x 9'1"Max./8'8"Min. Height

Approx. Weight 13,000 lbs.

Minimum work to be completed: New Water Guards, Cleaned, Cycled, Spindle Tram, Magnetic Chuck Ground in, Test Parts Run, Painted

30 Day MDNA Return

No Video Available
