48" Blanchard #26HD-48, 48" Magnet, Geared Head, 100 HP, 24" Vert, #4336

Stock

4336

Model

26HD-48

Dealer Location

Michigan

Spec Sheet

26" Grinding Wheel Diameter

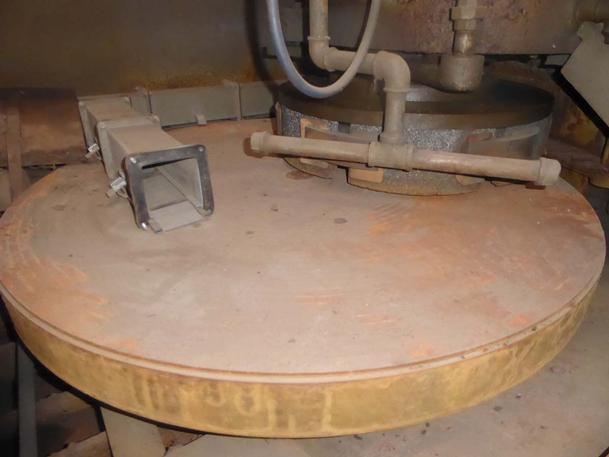

48" Magnetic Chuck Diameter, 1/4" Chuck Life

56" Swing Inside Water Guards

24" Vertical Range, Standard

3000 LBS. Maximum Load on Chuck

100 HP Grinding Wheel

230/460 Volt, 1775 RPM, 224/112 Amp, Main Drive Motor

Geared Head Design

Pick-Feed Type of Down Feed System

.004-.080 IPM Down Feed Rates

6 to 33 RPM Chuck Rotation Speeds

Automatic Lube System

17,000 LBS. Approximate Base Weight

Approximate Dimensions:

Grinder-64"D x 144"L x 114"H

Electrical Panel- 60"W x 78"H
