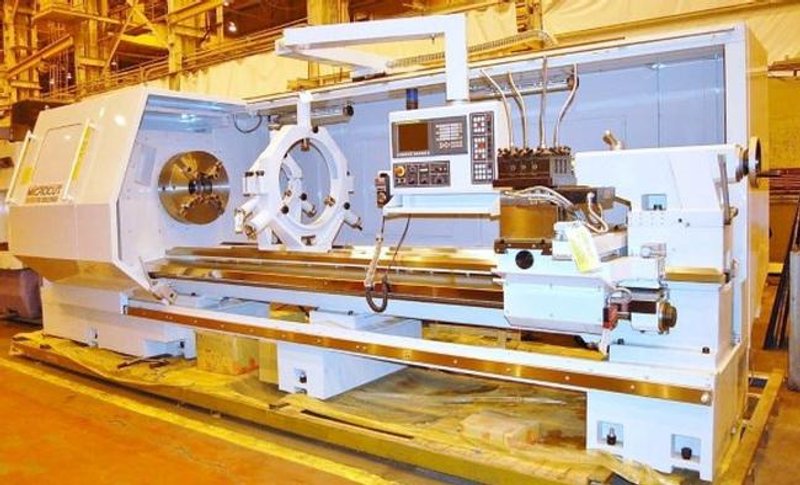

40" X 236" Microcut, Fanuc Oitd CNC, 8-Pos. Turret, (2) Steadies, 2015 #24724

Manufacturer

MICROCUT

Category

Lathes

Type

LATHES, ENGINE

Stock

24724

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24724

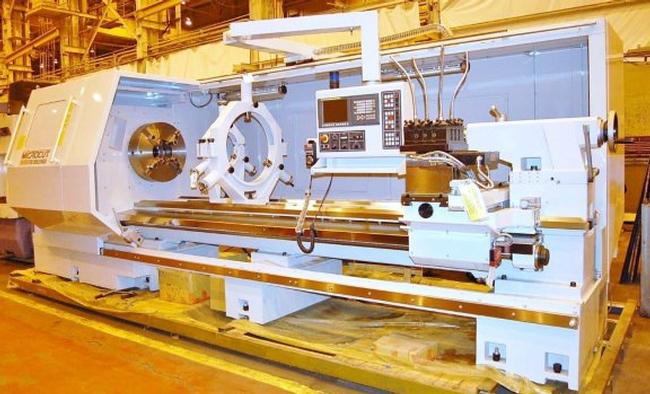

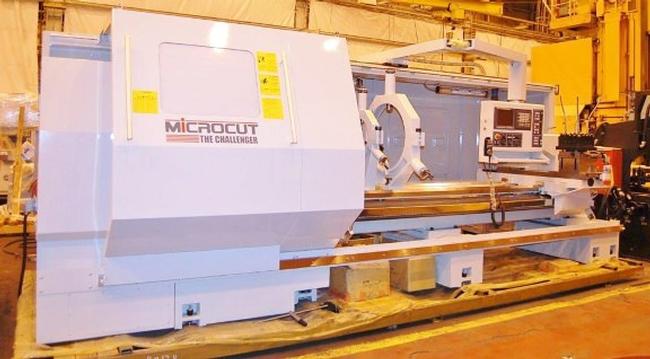

40.15" x 236.22" Microcut CNC Lathe
Age: NEW
Model: BNC 4000 x 6M

Fanuc 0iTD CNC Control with Manual Guide

Swing Over Bed ........................ 40.15"
Swing Over Cross Slide ................ 26.77"
Swing in Gap .......................... 50.39"
Width of Bed .......................... 22.5"
Maximum Turning Length ................ 236.22"
Max. Work Piece Weight w/ Tailstock ... 6,600 Lbs
Max. Work Piece Weight - 1-Steady ..... 8,800 Lbs
Max. Work Piece Weight - 2-Steadies ... 11,000 Lbs
Spindle Speeds, 2-Ranges .............. 15-1480 RPM
Spindle Hole Diameter ................. 4.17"
Spindle Nose Mount .................... A1-11
Quill Diameter ........................ 4.92"
Quill Stroke .......................... 9.055"
Quill Taper ........................... #6 MT
Overall Dimensions .................... 351" x 123" x 92"
Machine Weight ........................ 33,000 Lbs.

EQUIPPED WITH:
Fanuc 0iTD CNC Control with Manual Guide i
10.4" Monitor
RS 232 Communication Port
Fanuc Package Servo Motors
Thread Repair Function
Baruffaldi TB-200 VDI50/8T 8 Pos. Front Mounted Turret
1.96" to 11.81" Capacity Roller Steady Rest
9.84" to 23.62" Capacity Roller Steady Rest
2-Step Variable Speed with Auto Spindle Step Change
Gap Bed
Automatic Lubrication System
V-Type Bed Ways
Halogen Work Light
Full Length Chip Conveyor
Travelling Front Door
Hardened Ways
Leveling Pads and Bolts
29 HP/44 HP Spindle Drive Motor 220/3/60 Cycle

Full 1-Year Parts and Labor Warranty on Machine
Full 2-Year Parts and Labor Warranty on CNC Control
