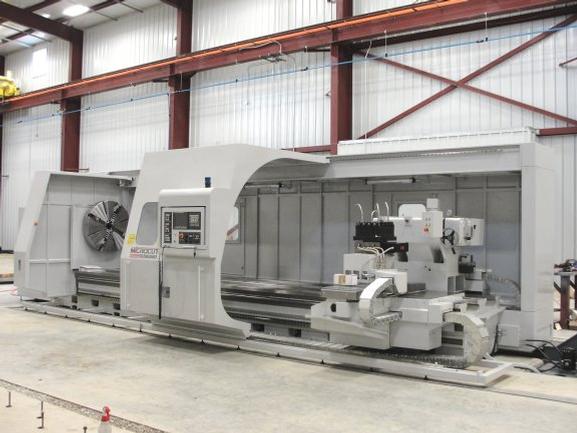

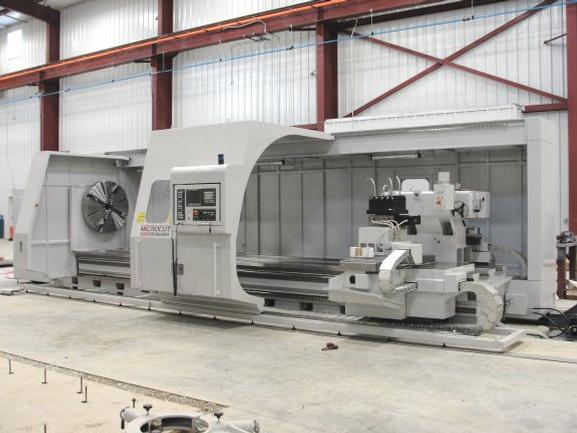

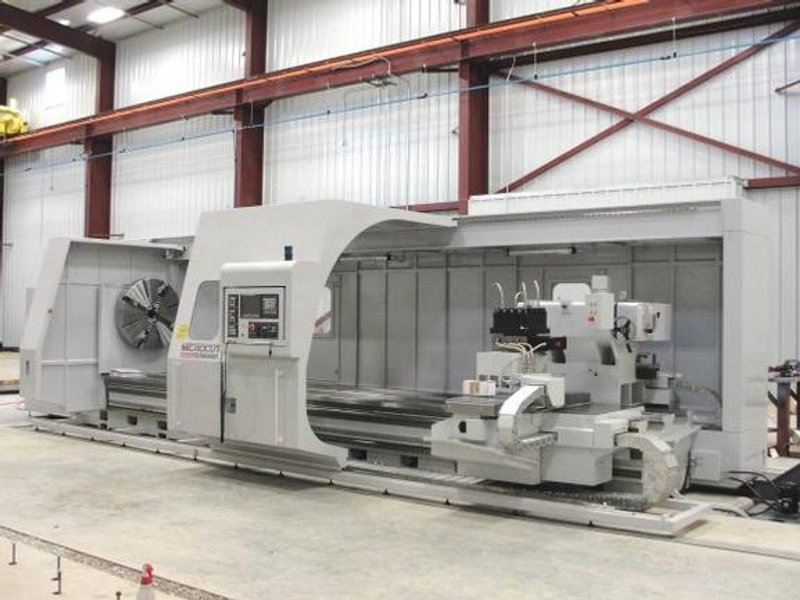

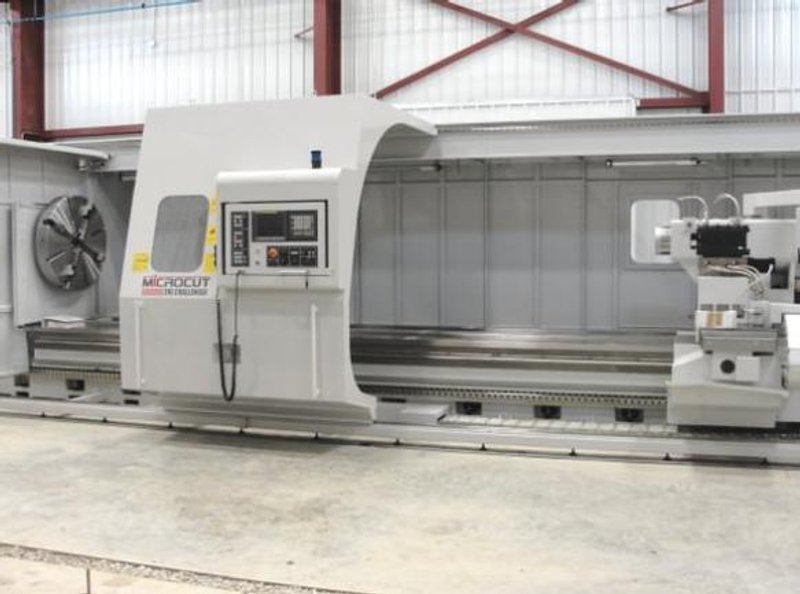

63" x 315" Microcut BNC 6500, 6" Hole, 4-Pos. Turret, Steady Rests, Fanuc OiTF, Chip Conveyor, 2021, #22134

Manufacturer

MICROCUT

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

22134

Model

BNC 6500

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #22134

Microcut 62.99" x 314.96" CNC Lathe

FEATURES:
Brand New Built To Order
Fanuc 0iTF CNC Control with Manual Guide i
CAPACITY:
Swing Over Bed ........................ 62.99"
Swing Over Cross Slide ................ 50.39"
Overall Bed Width ..................... 51.18"
Maximum Turning Length ................ 314.96"
Weight Between Centers (Unsupported) .. 22,000 Lbs.
Weight Between Centers (2 Steady Rest). 33,048 Lbs.
X-Axis Travel ......................... 31.49"
Z-Axis Travel ......................... 314.96"
Spindle Speeds, 2-Ranges (Variable) ... 1-735 RPM
Spindle Bore .......................... 6.02"
Spindle Nose Mount .................... A2-11
Spindle Drive Motor (220 Volt) ........ 80 HP / 100 HP
Quill Diameter ........................ 9.44"
Quill Stroke .......................... 9.05"
Quill Taper ........................... #6 MT
Rapid Traverse (X/Z) .................. 393.70 IPM
Approximate Dimensions ................ 490.94" x 133.38" x 105.51"
Approximate Weight .................... 72,600 Lbs.
EQUIPPED WITH:

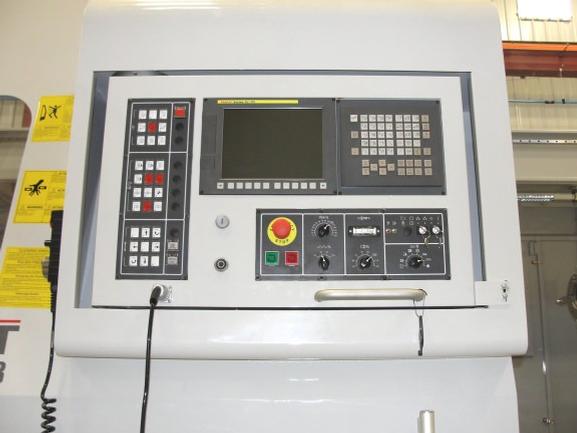

Fanuc 0iTF CNC Control with 10.4" LCD & Manual Guide i
Chuck Sliding Guard with Interlock Device
HP-350 Heavy Duty 4-Position Turret (VDI)
Auto Spindle Speed Changer
Four Wide Guide Ways in One Piece
Travelling Front Single Door Interlocked with Carriage
Motorized Tailstock
Linear Scale For Z Axis

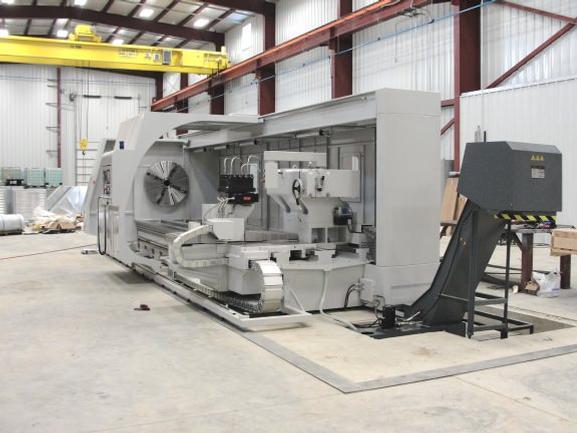

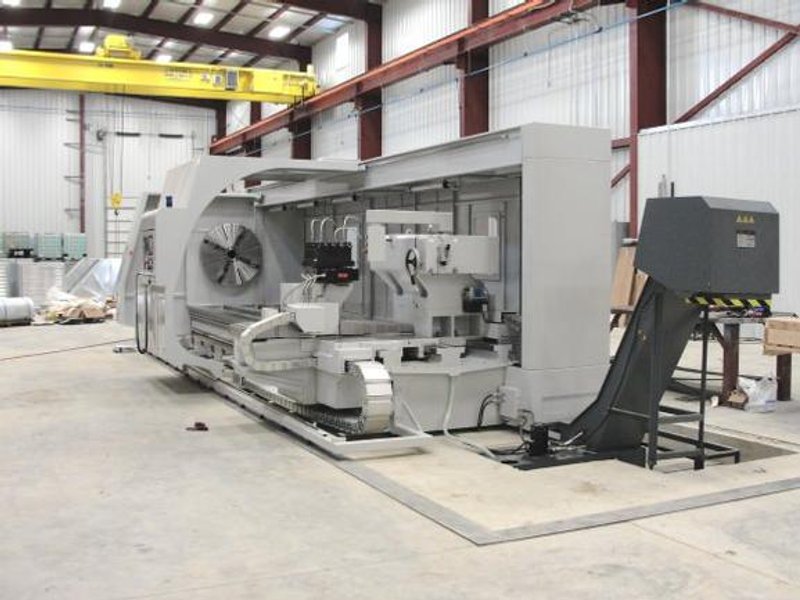

Chip Conveyor w/ Wash Down (314.96" Long)
Coolant System
Central Lubrication System
CE-Regulated of Conformity for EU Countries
(1) Roller Steady Rest (1.9"-15.7")
(1) Roller Steady Rest (14.9"-23.6")
(1) Roller Steady Rest (22.83"-31.5")
Operation Manuals, Electric Schematics, Programming Manual

NOTE:
Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control
Delivery From Factory: 6-Months From Order
