5.12" Microcut HBM-5T, 60ATC, Ram Type, X137", Y102", 3K RPM, RT, F 31i CNC, '12 #21897

Manufacturer

MICROCUT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

21897

Model

HBM-5T

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #21897

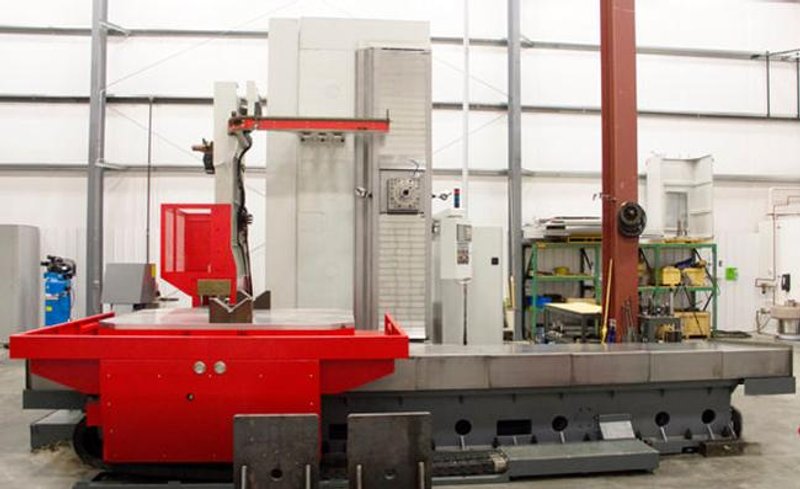

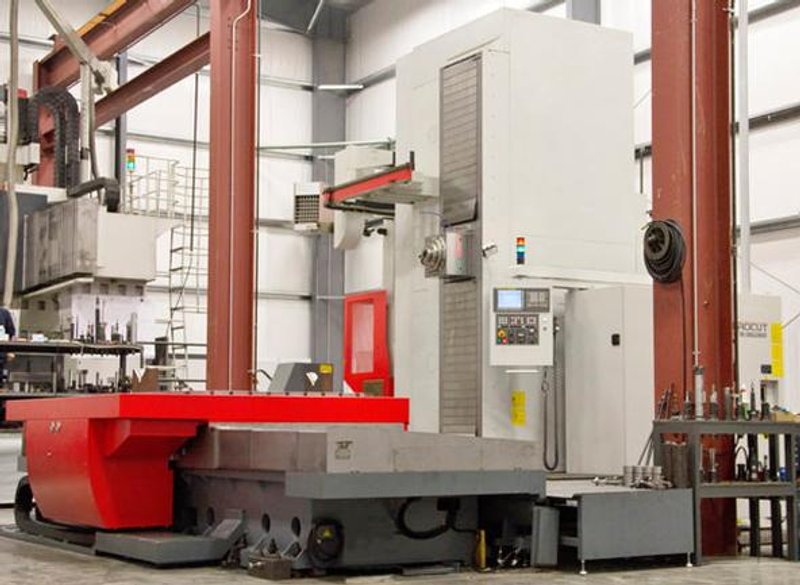

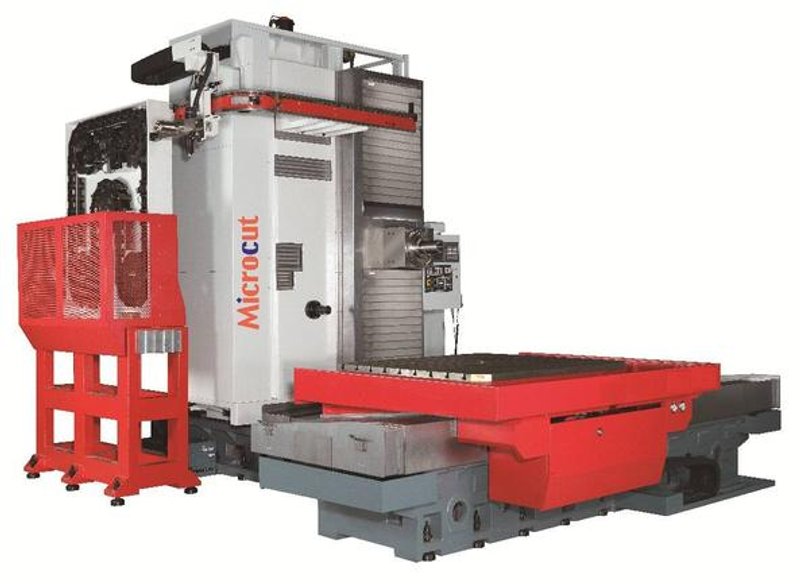

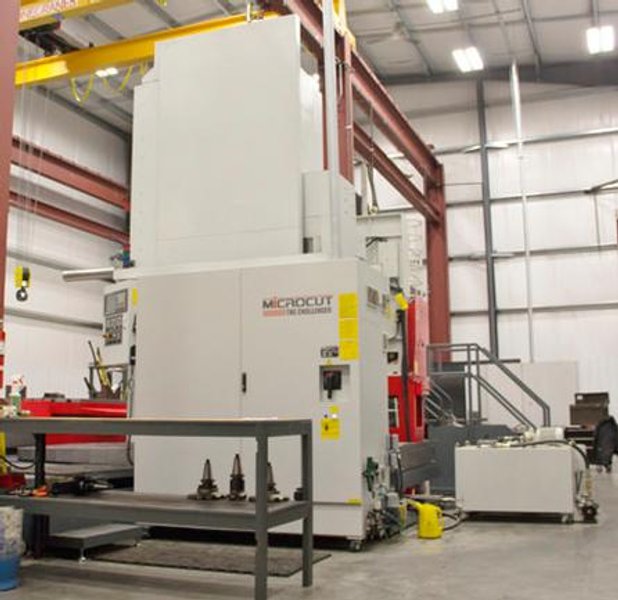

5.12" Microcut CNC T-Type Horizontal Boring Mill
Age: New 2015
Model: HBM-5T

FANUC 31imB CNC Control
60 Station Automatic Tool Changer

Spindle Diameter....................... 5.12"
Spindle Taper.......................... ISO #50
Vertical Head Travel, Y-Axis .......... 102.36"
Cross Travel, X-Axis .................. 137.79"
Column Longitudinal Travel, W-Axis .... 55.11"
Spindle Travel, Z-Axis ................ 27.55
Distance Between Spindle Nose & Table . 3.93"-78.74"
Spindle Speeds, 2-Speed ............... 35-3000 RPM
Built-In Rotary Table, B-Axis ......... 70.86" x 86.61"
Table Weight Capacity (Option) ........ 44,000 Lbs.
Rotary Table, Full B-Axis, ............ 0.001 Deg.
Approx. Dimensions .................... 333" x 275" x 199"
Approx. Machine Weight ................ 107,800 LBS

EQUIPPED WITH:
FANUC 31i MB CNC Control and 10.4" LCD Display
RS-232 Interface
Fanuc Spindle & Fanuc Axes Servo Motor Package
T-Type Construction, Infeeding Column

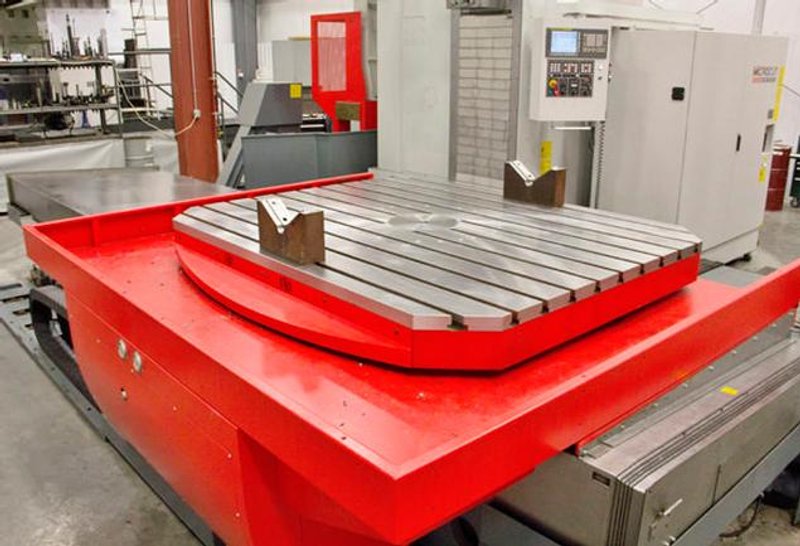

70.86" x 86.6" Built-In Rotary Table (360,000 Deg.)
60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes
Spindle Vibration Supervision Function (SVS)
Spindle Extension Sleeve
Coolant Thru Spindle (20 Bar High Pressure Pump)
Coolant System
Chip Conveyor
Auto Lubrication System
MPG Box
49 HP/60 HP Spindle Drive Motor 220/3/60, 95 KVA

1-Year Parts and Labor Warranty on Machine
2-Year Parts and Labor Warranty on CNC Control
