5.12" Microcut HBM-4T, X-118", Y-78", 55" X 63" B-Axis Tbl, Fanuc 31i, 60 ATC, #21985

Manufacturer

MICROCUT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

21985

Model

HBM-4T

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #21985

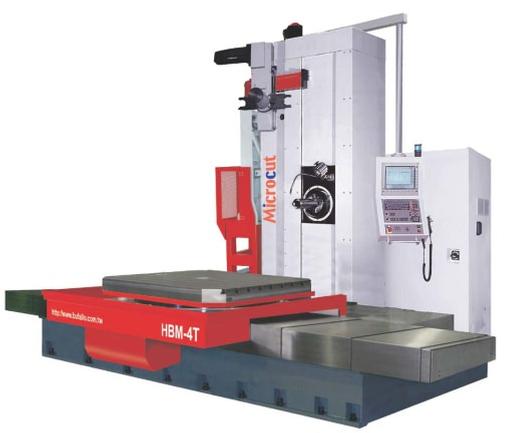

5.12" Microcut CNC T-Type Horizontal Boring Mill
Age: New
Model: HBM-4T

Fanuc 31i MB CNC Control
60 Station ATC

Spindle Diameter....................... 5.12"
Spindle Taper.......................... ISO #50
Vertical Head Travel, y................ 78.74"
Table Travel, x........................ 118.11"
Saddle Travel, w....................... 55.11"
Spindle Travel, z...................... 27.55"
Built in Rotary Table.................. 55.11" x 62.99"
Table Index............................ 0.001 Degree
Table Load Capacity ................... 17,600 LBS
Rapid Traverse: x,y,z Axis............. 393.70 IPM
Feed Rates: x,y,z Axis................. 393.70 IPM
Spindle Speeds (2 Ranges).............. 35-3000 RPM

EQUIPPED WITH:
FANUC 31i MB CNC Control w/ 10.4" LCD Full Key Panel
MPG and RS 232 Interface
Built-In "B" Axis Rotary Table (Positioning)
Hardened & Ground Ways
60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes
Rigid Tapping
Spindle Oil Cooler
Spindle Vibration Supervision Function
Telescoping Way Covers
Auto Power Off
Auto Lubrication System
Spindle Sleeve Extension
Coolant Thru Spindle (20 Bar)
Chip Augor For Table & Chip Conveyor
29 HP/ 40 HP Spindle Drive Motor 220/3/60
Meehanite Cast Iron Construction
Roller Type Linear Guide Ways on X/Z Axis
Box Ways on Y Axis
Linear Scales X/Y/Z Axes

Floor Space: 307" L x 278" W x 181" H
Machine Weight: 88,000 LBS

1 Year Parts & Labor Warranty on Machine
2 Year Parts & Labor on the Fanuc Control
