4.33" Microcut HBM-4, 60 ATC, X-86",Y-63", 49"x59" B-Axis Rot.Tbl, TSC, Fanuc 31i,' 2023 #24723

Manufacturer

MICROCUT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

24723

Model

HBM-4

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24723

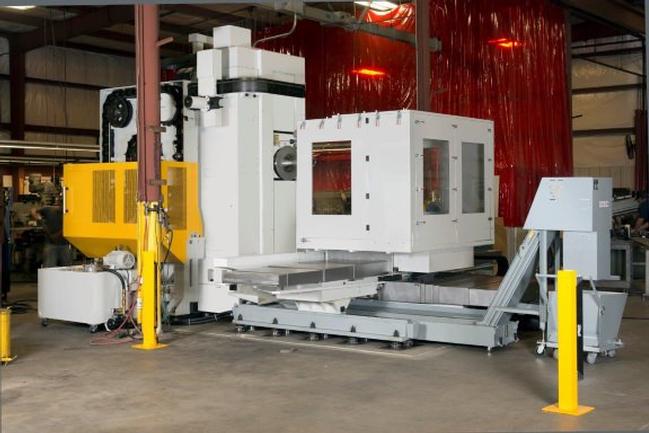

Microcut 4.33" CNC Table Type Horizontal Boring Mill

FEATURES:
Fanuc 31i MB CNC Control
Through Spindle Coolant
60 Station Automatic Tool Changer

CAPACITY:

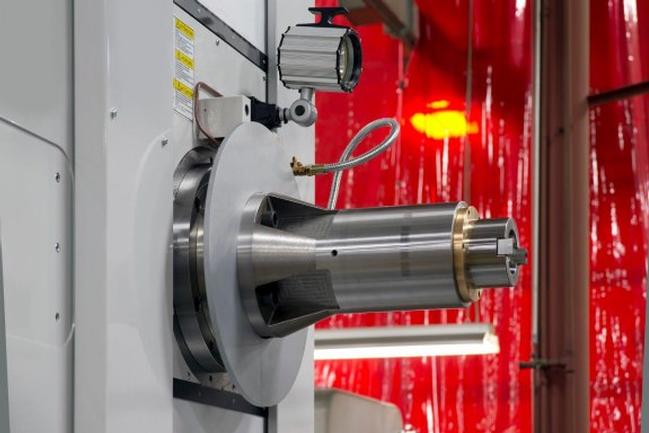

Spindle Diameter...................... 4.33"
Spindle Taper......................... ISO #50
Vertical Head Travel, Y-Axis ......... 62.99"
Table Travel, X-Axis ................. 86.61"
Spindle Travel, W-Axis ............... 62.99"
Spindle Travel, Z-Axis ............... 21.65"
Distance Spindle To Table Center...... 0-61.81"
Built in Rotary Table................. 49.21" x 59.05"
Table Index........................... 0.001 Degree
Rapid Traverse: x,y,z Axis............ 472.44 IPM
Feed Rates: x,y,z Axis............... .04-196.85 IPM
Table Load Capacity................... 11,000 LBS
Spindle Speeds (2 Ranges)............. 35-3000 RPM
Tool Change Time (Tool to Tool)....... 9 Seconds
Maximum Tool Weight in Tool Changer... 55 LBS

EQUIPPED WITH:
FANUC 31i MB CNC Control w/ 10.4" LCD Full Key Panel
MPG
Helical Interpolation
Built In B-Axis Rotary Table (Positioning)
Hardened & Ground Ways
60 Station Automatic Tool Changer (CAT #50)
Rigid Tapping
Coolant Thru Spindle (70 Bar)
Spindle Oil Chiller
Spindle Vibration Supervision Function
Spindle Extension Sleeve
Meehanite Cast Iron Struction
Telescoping Way Covers
Auto Power Off
Auto Lubrication System

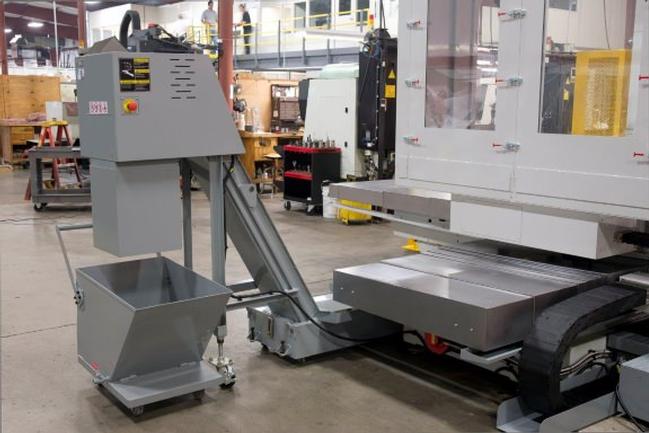

Chip Auger For Table & Chip Conveyor
29 HP/ 24 HP Spindle Drive Motor 220/3/60

MACHINE WEIGHT AND FLOOR SPACE:
Floor Space: 305" L x 186" W x 146" H
Machine Weight: 50,000 LBS

NOTE:
Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control
Price Quote is Good For 30 Days
Lead Time 6-8 Months From Date Of Order
