150 KVA, Heron DN-150,New,440V,34K Sec Amps,12"/18"Thr,8"Dia Adj/Ret Air Cyl,Ctrl Choice

Manufacturer

HERON

Category

Welding Machines

Type

WELDERS, SPOT & PROJECTION (Combination)

Stock

DN-150

Model

DN-150

Dealer Location

Tennessee

Request a Quote
View Contact Information

Spec Sheet

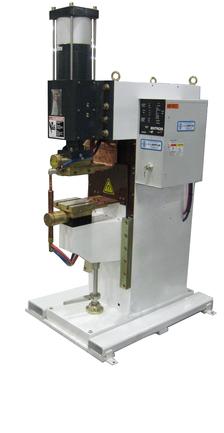

Brand new HERON Heavy Duty vertical acting Combination Projection & Spot Welder:

HERON Model DN-150

150 KVA, 440 volts, 60 Hz, single phase

8.6 max secondary voltage

34,000 max. secondary welding amps available short circuit

12” throat depth to centerline of platens as a projection welder

T-slot projection welding platens for mounting tooling

18” working throat depth with spot welding arms

8" diameter standard dual acting air cylinder

4,020 lbs. of weld force available at 80 PSI

Initiation with two (2) stage shrouded foot switch suitable for spot welding.

Note: Dual Palm Buttons can be installed and are required for safety when Projection Welding

Customer's choice of Weld Control will be installed and tested as a unit

Three (3) machines available in stock and available FAST!
