Mazak Versatech V40 2APC, X83",Y57",Z25", 5-Face, 200ATC, 40"Btwn, M32 CNC,'96,#25058

Manufacturer

MAZAK

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

25058

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25058

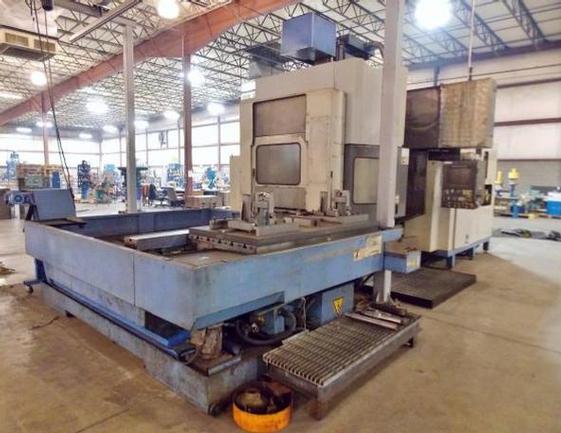

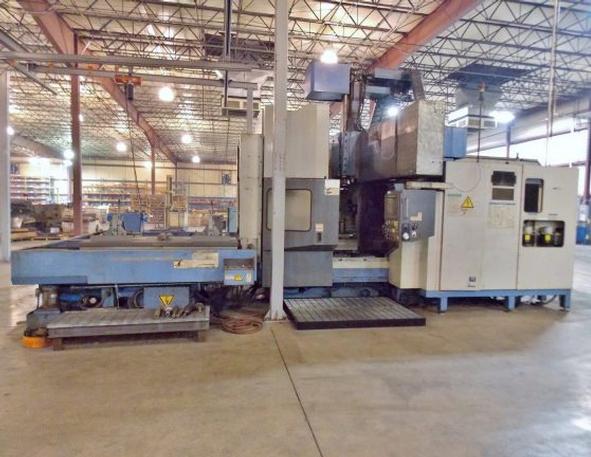

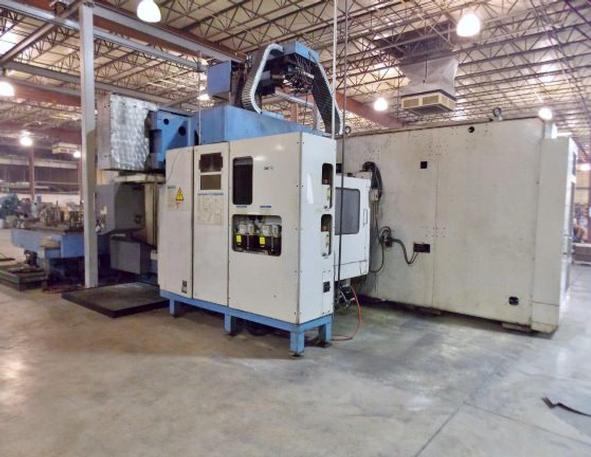

MAZAK Versatech V40 CNC 5-Face Double Column Vertical Machining Center
Age: 1996
Model: Versatech V-40

FEATURES:
Right Angle Head
Automatic Head Changer
2-Pallet Changer

Distance Between Columns .............. 39.37"
X-Axis Table Travel ................... 82.68"
Y-Axis Head Travel .................... 57.09"
Z-Axis, Ram Travel .................... 25.59"
Distance Table to Spindle Nose ........ 12.6"-38.19"
Table Size ............................ 68.5" x 31.5"
Table Weight Capacity ................. 6600 Lbs.
Spindle Speed Range, Vertical ......... 22-4000 RPM
Spindle Speed Range, Horizontal ....... 22-3000 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 25 HP / 20 HP AC
Ram Dimensions ........................ 10.63" x 10.63"
Ram Slideways Support ................. All 4 Faces
Rapid Traverse, X & Y Axes ............ 787 IPM
Rapid Traverse, Z-Axis (Ram) .......... 709 IPM
Cutting Feed, X & Y Axes .............. 0.04"-314.96 IPM
Max. Tool Dia., Adjacent Empty ........ 9.45"
Max. Tool Dia., Adjacent Full ......... 4.72"
Max. Tool Length ...................... 15.74"
Max. Tool Weight ...................... 44 Lbs
Tool-To-Tool Change Time .............. 4.5 Seconds
Chip-To-Chip Tool Change Time ......... 19.5 Seconds
Machine Dimensions .................... 171" x 294"
Machine Height ........................ 158"
Approx. Weight ........................ 44,440 Lbs.

EQUIPPED WITH:
Mazatrol PC-Fusion 640M CNC Control

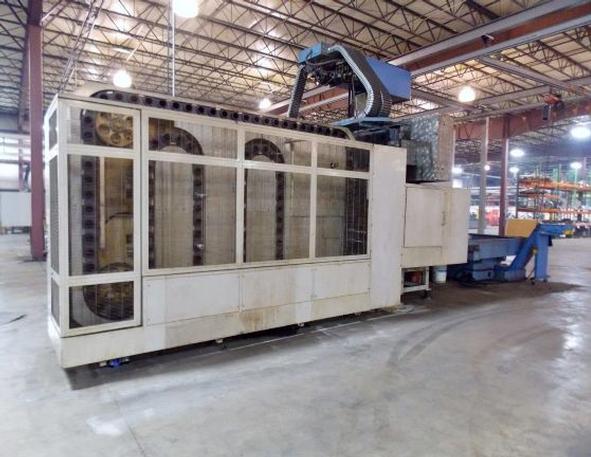

60-Position Automatic Tool Changer

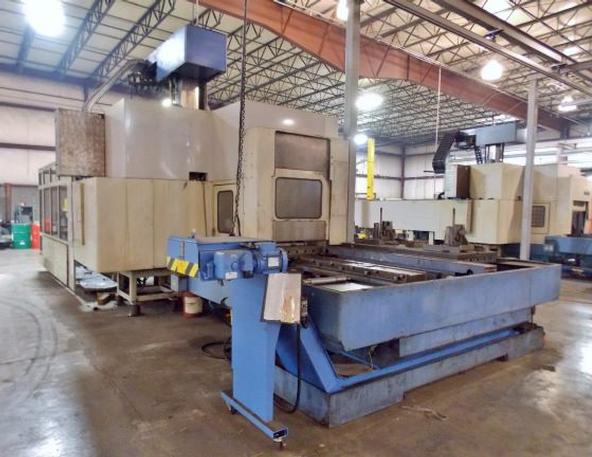

2APC Automatic Pallet Changer
(2) 68.5" x 31.5" T-Slotted Pallets
2AAC Automatic Head Changer
(1) Vertical Head, 4000 Max. RPM
(1) Right Angle Head, 3000 Max. RPM
Chip Conveyor
