88" X 472" Poreba TCF-224, 3 Way Bed, 8-Pos Turret, Siemens 840D, 95 HP, '99, #24686

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

24686

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24686


POREBA TCF-224 88" x 472" Heavy Duty CNC Lathe
Model: TCF-224
Age: 1999

FEATURES:
Siemens 840D CNC Control
Three Way Bed, Carraige Will Pass Tailstock

CAPACITY:
Maximum Swing Over Bedways ............ 88.18"
Maximum Swing Over Cross Slide ........ 70.86"
Distance Between Centers .............. 472.4"
Width Of Bed .......................... 62.99"
Spindle Bore Diameter ................. 4.13"
Spindle Speeds ........................ Up to 200 RPM
Rapid Traverse ........................ 158 IPM
Weight Capacity Between Centers ....... 60,000 lbs
Weight Capacity With One Steady Rest .. 70,000 lbs
Weight Capacity With Two Steady Rest .. 80,000 lbs
Tailstock Diameter .................... 11.02"

EQUIPPED WITH:
Siemens 840D CNC Controls
70.86" 4-Jaw Chuck
Three Way Bed
8-Position Turret
23" Diameter Steady Rest
31.5" Diameter Steady Rest
63" Diameter Open Steady Rest
Hardened Ways
Power Tailstock Quill
Power Tailstock
95 HP Main Spindle Motor

NOTE:

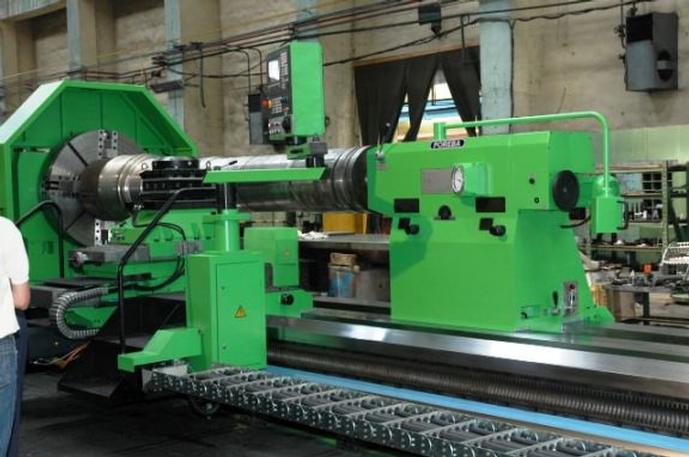

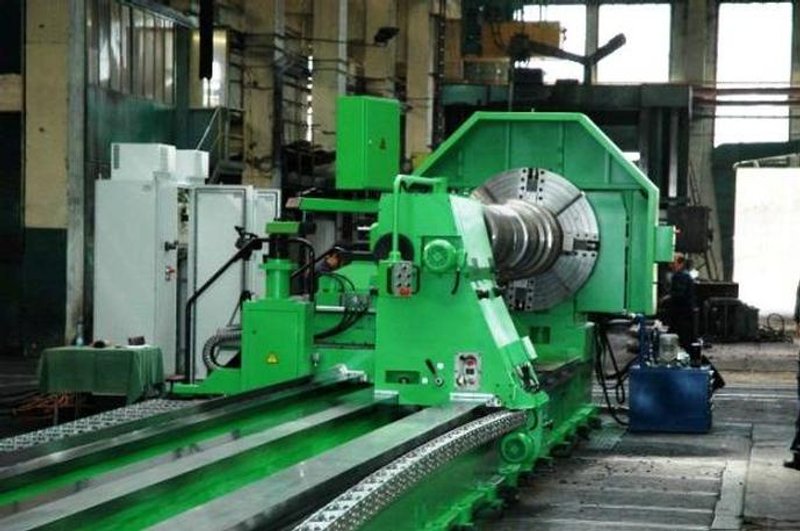

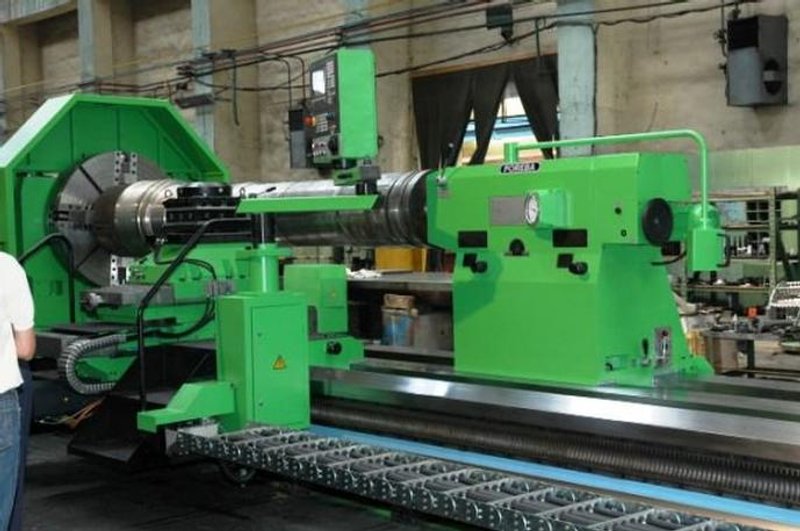

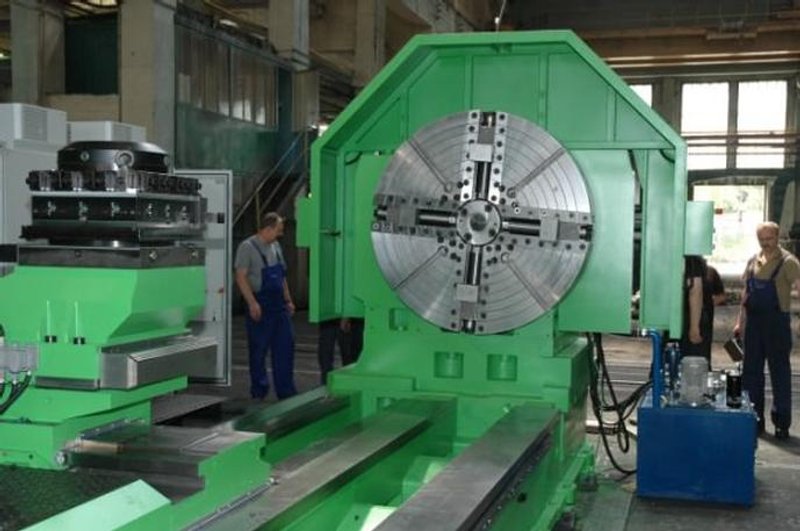

Not Actual Photos. 6 Month Delivery from Date of Order.
