36" X 48" Giddings & Lewis, Air Lift, 90 Degree Shot Pin, 15,000 Lb. Cap., #23401

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

23401

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #23401

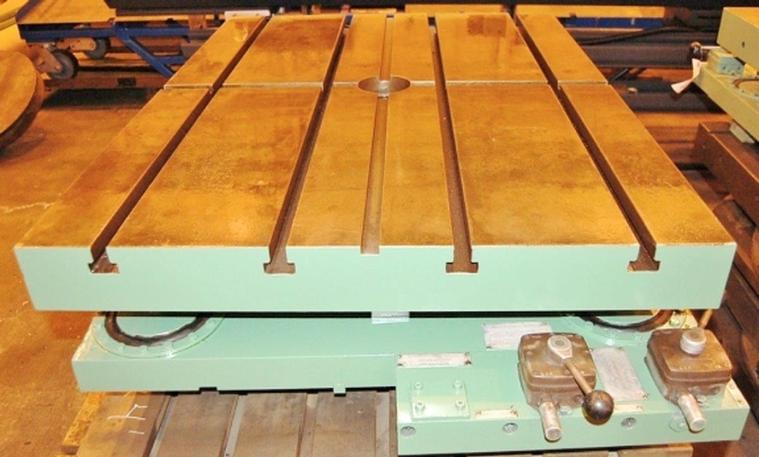

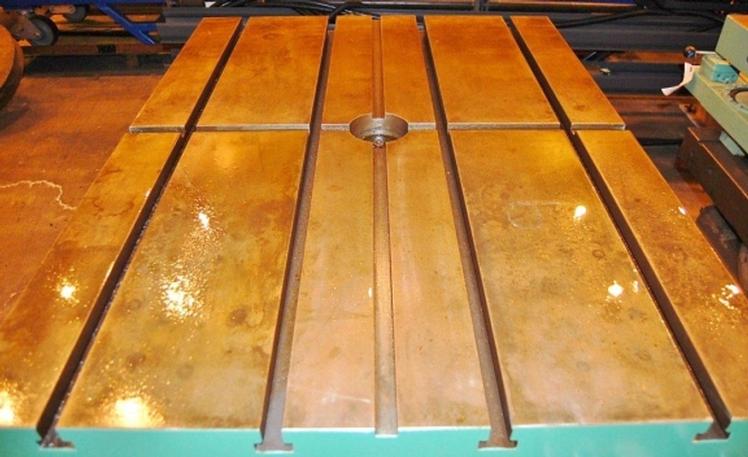

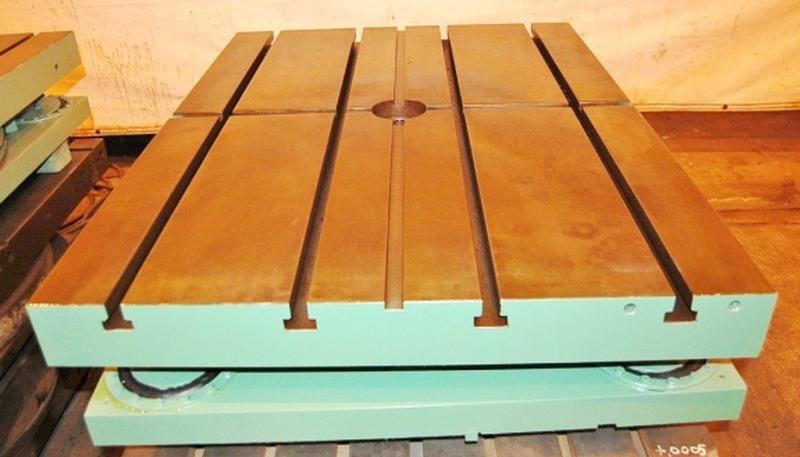

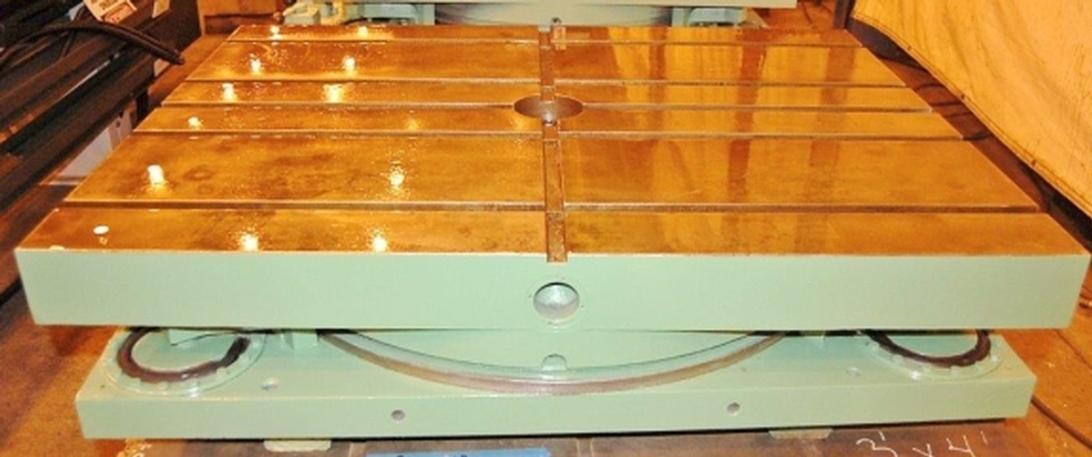

36" x 48" Giddings & Lewis Airlift Rotary Table

Table Size ............................ 36" x 48"
Work Height ........................... 10"
Number Of T-Slots ..................... 4
Width Of T-Slots, Top ................. 7/8"
Width Of T-Slots, Bottom .............. 1 1/2"
Depth Of T-Slots, Overall ............. 1 1/2"
Distance Between T-Slot Centers ....... 9"
Center Keyway Width ................... 7/8"
Center Bore Diameter .................. 4 1/2"
Table Weight Capacity ................. 15,000 Lbs
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 52" x 36"
Approximate Shipping Weight ........... 3,800 Lbs

EQUIPPED WITH:
Air Clamp
4-Position, Positive Stop Shot Pin
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway Degree Increments
Fixture Locating Keyway
Center Bore In Table Platen
