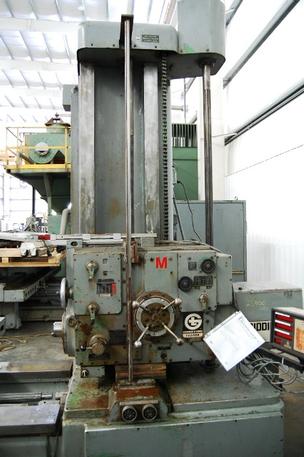

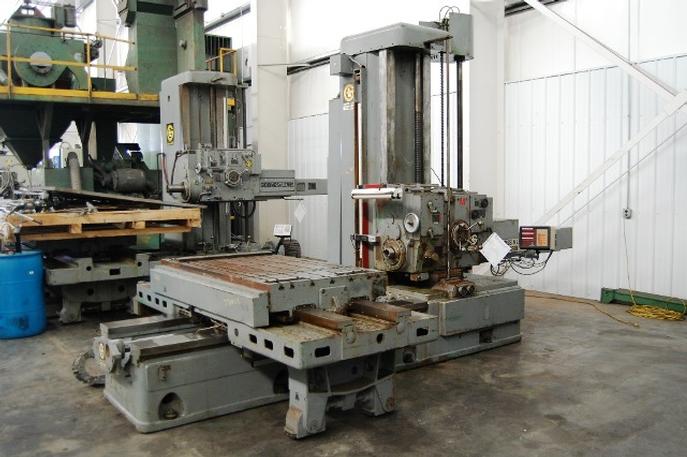

4" Giddings & Lewis Model 70A-DP4-T Manual Table Type Horizontal Boring Mill

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

21790

Model

70A-DP4-T

Dealer Location

North Carolina

Request a Quote
View Contact Information

Spec Sheet

21790 Giddings & Lewis 4” Manual Table Type Horizontal Boring Mill

S/N: 150-917
Model: 70A-DP4-T
Mfg.: New 1969

Specifications:

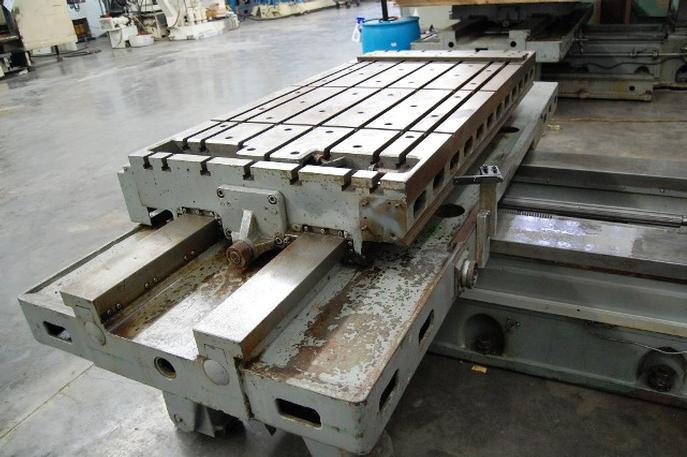

Table Size: 36”x 74” with (7) 13/16” Tee Slots & (3) ¾” Key Slots
Table Travel: Approx. 72”
Saddle Travel: Approx. 60”
Head Vertical Travel: 55”
Spindle Travel: 28”
Spindle Speeds: 10 to 1300 RPM
Spindle Taper: #50 with Power Draw Bolt
Spindle Feeds: .002 to .250 TPR
Milling Feeds: .040 to 120 IPM
Hydraulic Pump Motor: 1-1/2 HP, 3 Phase, 50 Cycle, 440 Volts
Electrical Cabinet: 44” L x 15” W x 75” H
Main Motor: 20 HP, 3 Phase, 50 Cycle, 440 Volts
Hydraulic Pump Motor: 20 HP 3 Phase, 50 Cycle, 440V
Overall Machine Size: 200” L x 88” W (Table & Saddle Removed) x 128” H x 127” W (Fully Assembled)
Electrical Cabinet: 44”L x 15”W x 75”H
Total Machine Weight: 23,500 lbs.

Equipped With:

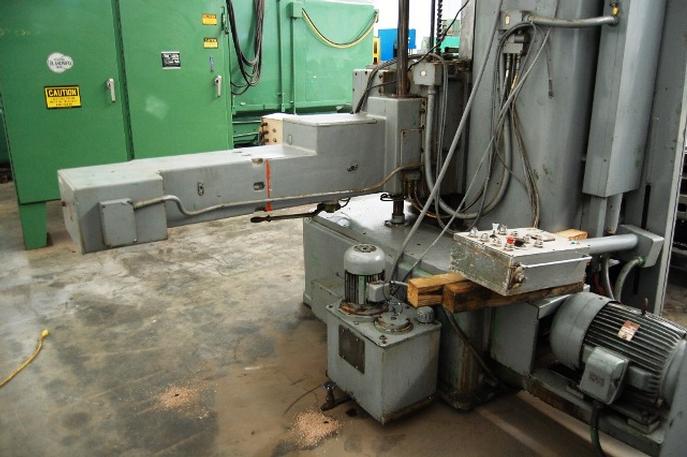

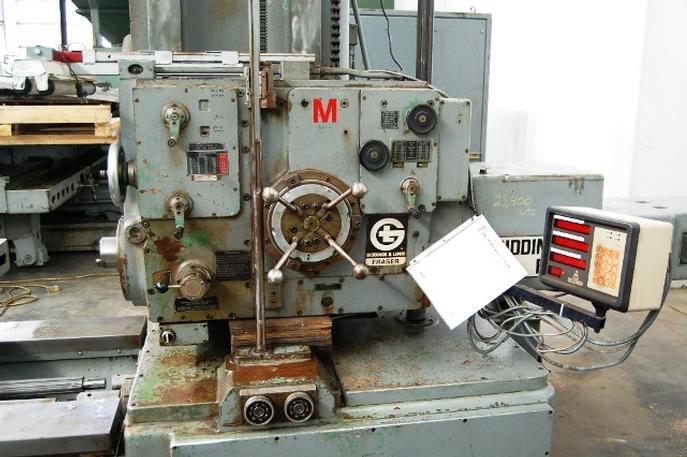

Pendant Control*Hard Replaceable Bed & Table Ways in Good Condition*Soft Vertical Ways in Good Condition (Missing – Machine Crank Handle and Floor Mounted Table Outriggers)

Machine Condition: Good
Machine Location: York, PA
