39" X 236" Prok, Fanuc Oit, 12.5" Bore, Prog Tailstock, (2) 30" Chucks, 2014, #24044

Manufacturer

PROK

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

24044

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24044

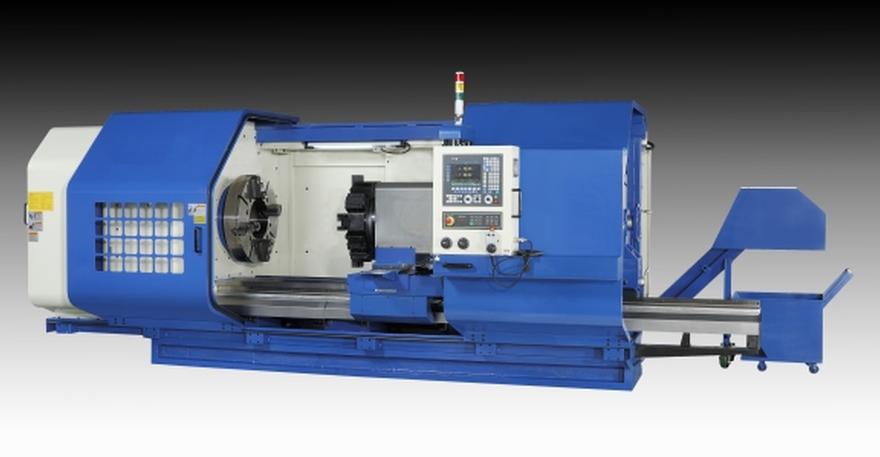

39.7" x 236" PRO K CNC Lathe With 12.5" Spindle Bore
Mdl: LD4012060
Age: 2014

Swing Over Bed ........................ 39.76"
Swing Over Carriage ................... 25.19"
Distance Between Centers .............. 236.22"
Bed Width ............................. 22.04"
Headstock ............................. A2-20"
Spindle Through Hole .................. 12.51"
Spindle Speeds (4-Ranges) ............. 5-450 RPM
Spindle Motor ......................... 40 HP/ 50 HP
Tailstock Quill Diameter .............. 5.70"

EQUIPPED WITH:
Fanuc OiT CNC Control w/ 10.4" Monitor
(1) 30" Steel Body 4-Jaw Independent Chuck
(1) 30" Steel Body 3-Jaw Scroll Chuck (12" Bore)
12-Station Paragati BTP-160 Turret
Auto Lubrication System
(2) Steady Rest (1.57"-15.74" & 9.84"-23.62")
Rear Chuck Adapter
Swarf Chip Conveyor (Front Only)
Two Door Type Full Length Splash Guard
Flush Coolant Water System
Manual Guide w/ Thread Repair Function
Programmable Tailstock
