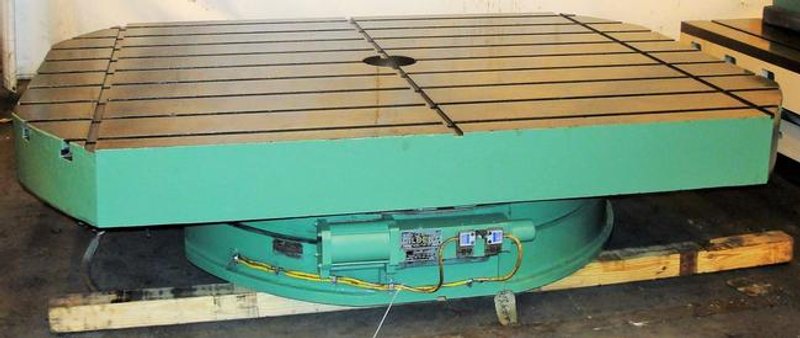

72" X 96" Cincinnati Gilbert, Air Lift, 20,000 Lb. Capacity, 90 Degree Shot Pin, 25" Ht, #23430

Manufacturer

CINCINNATI GILBERT

Category

Tables

Type

TABLES, ROTARY

Stock

23430

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #23430

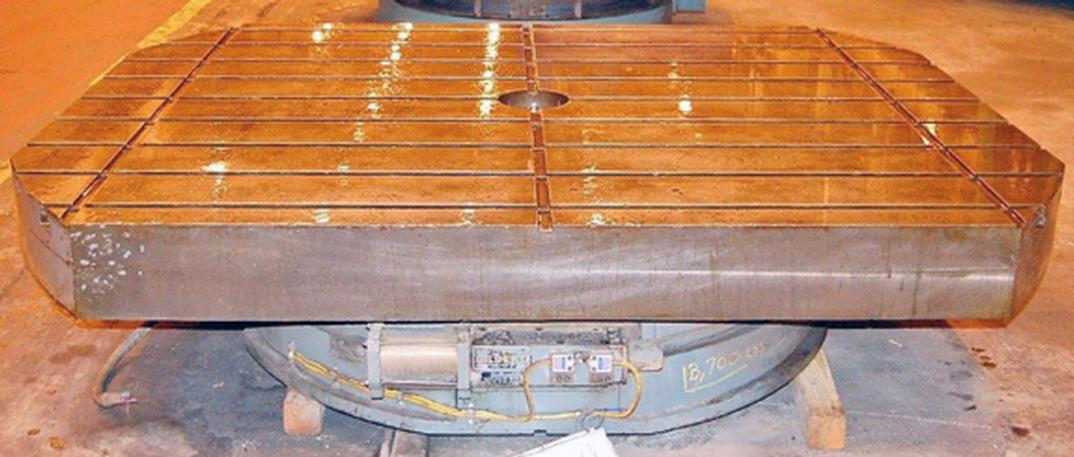

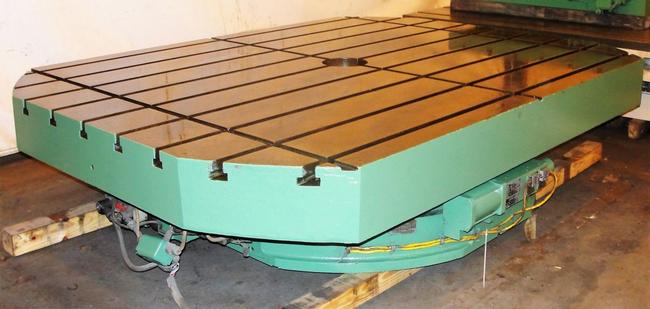

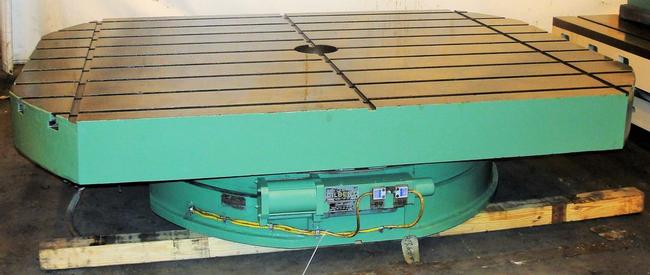

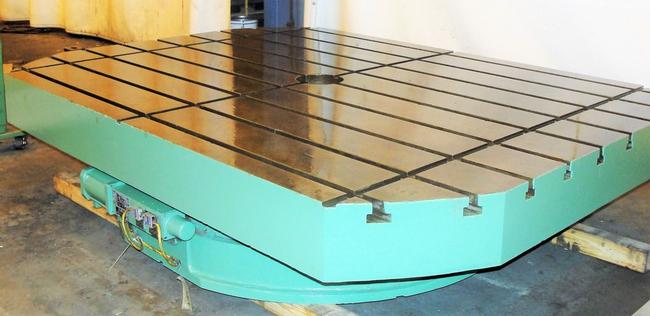

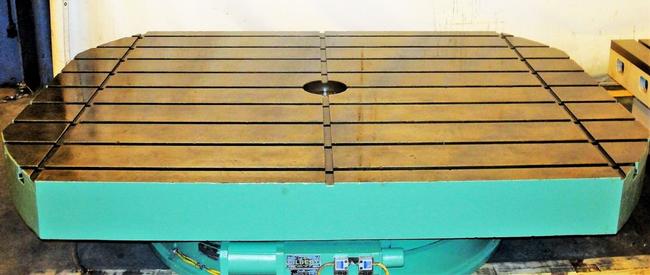

72" X 96" Cincinnati Gilbert Air Lift Index Tables
Serial No. AL 60439

Table Size ............................ 72" x 96"
Work Height ........................... 25"
Number Of T-Slots ..................... 9
Width Of T-Slots, Top ................. 1"
Width Of T-Slots, Bottom .............. 1.875"
Distance Between T-Slot Centers ....... 8"
Center Keyway Width ................... 1"
Shot Pin Locations (Degrees) .......... 90, 180, 270, 360
Table Base Dimensions ................. 96" x 72"
Approximate Shipping Weight ........... 13,600 Lbs

EQUIPPED WITH:
90 Degree, 4-Position, Positive Stop Shot Pin
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway Degree Increments
Fixture Locating Keyway
Center Bore In Table Platen
