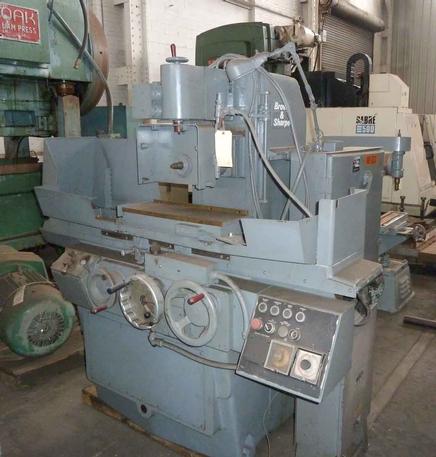

8" X 24" Brown & Sharpe Micromaster, Incr. PDF, Dresser, Clnt Chuck & Rect, 1977, #1124

Stock

1124

Model

None listed

Dealer Location

Michigan

Spec Sheet

8" X 24" CAPACITY

9 1/2" HEIGHT UNDER 14" WHEEL AND OVER 4"

MAGNETIC CHUCK

LONGITUDINAL TABLE FEED OF 10' TO 125' PER MIN.

CROSS FEED OF .010" TO .500", AVAILABLE @

REVERSAL OF EACH TABLE STROKE

10" PER MINUTE WHEEL TRUING FEED

75" PER MINUTE POWER RAPID TRAVERSE OF WHEEL

HEAD, CROSS

40" PER MINUTE POWER RAPID TRAVERSE OF SPINDLE, VERTICAL

WHEEL DIMENSIONS, 14" X 1 1/2" X 5"

AUTO CYCLE SIZE (INCREMENTAL POWER DOWN FEED)

AUTOMATIC HYDRAULIC OVER THE WHEEL DRESSER WITH WHEEL

COMPENSATION. PLUNGE GRIND CYCLE

MD COOLANT PUMP AND TANK

8" X 24" FINE LINE ELECTRIC MAGNETIC CHUCK, RECTIFIER

& CHUCK CONTROL WITH VARIABLE HOLDING POWER

5 HP, 1800 RPM DIRECT SPINDLE MOTOR AND CONTROLS CONNECTED FOR

440 VOLT OPERATION WITH 110 VOLT CONTROLS

NO SPINDLE COLLET
