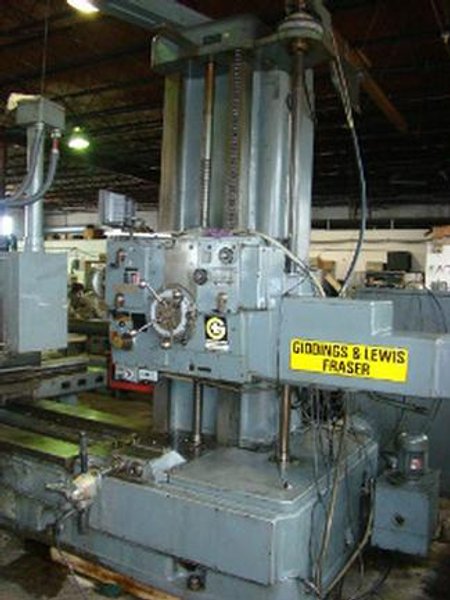

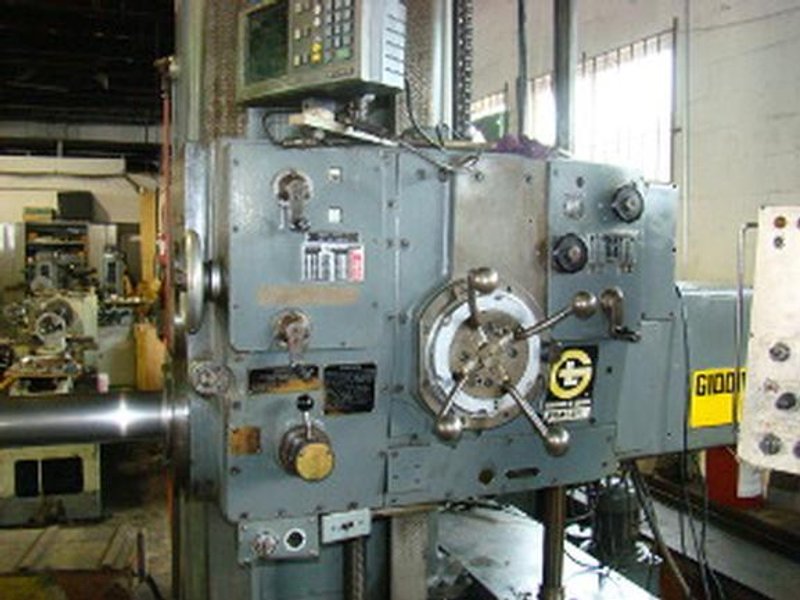

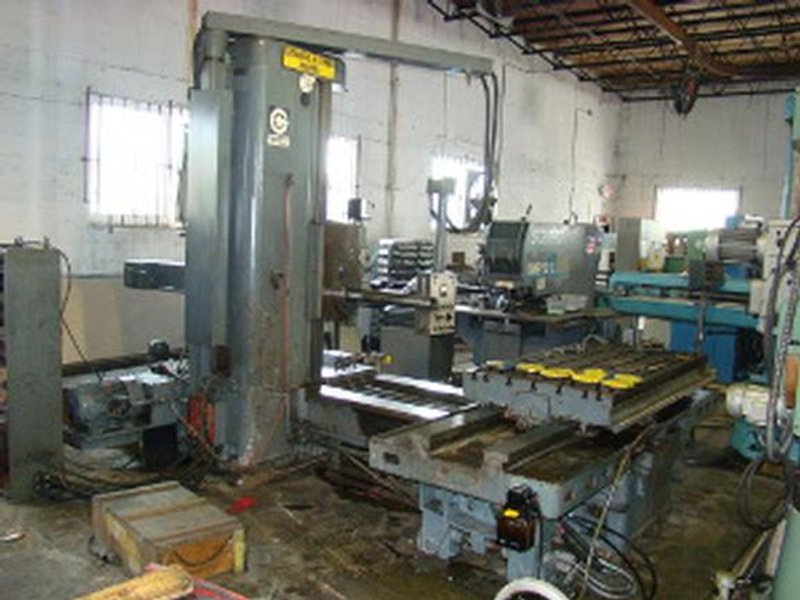

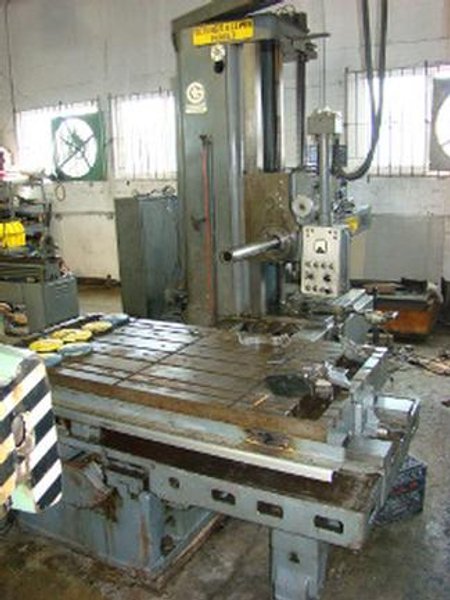

4" G & L Fraser #70A-DP4-T6 X 72", 56" X 62" Cross, #50, DRO, 1969 (6454)

Manufacturer

GIDDINGS & LEWIS FRASER

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

6454

Model

70A-DP4

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

SPECIFICATION:

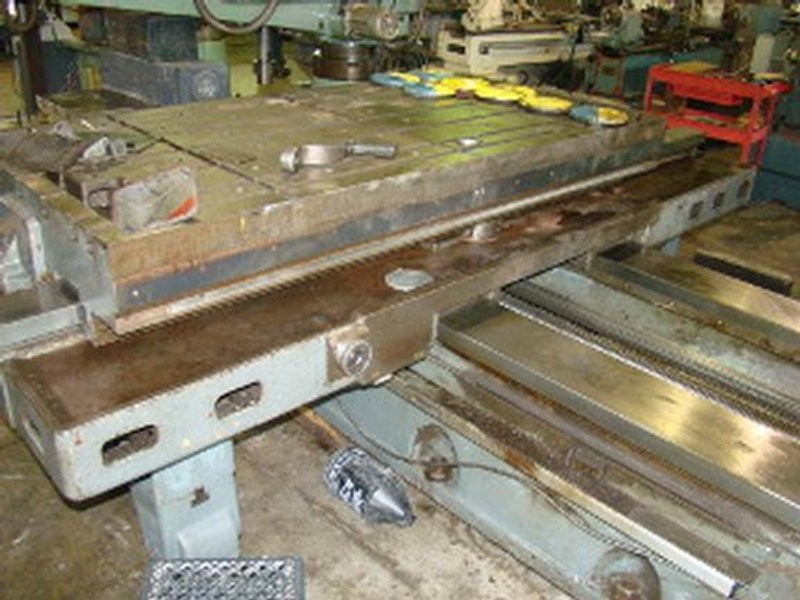

Rotary table size 36" x 72"
Travels--longitudinal 56"
--cross 62"
--vertical 50"
--Spindle 30"
Feeds--boring--number 33
--range 0.002 to 0.250 ipr

Spindle speed--number 43
--range 10 to 1300 rpm
Diameter of spindle 4"
Morse taper of spindle #50 NST
Main motor 20 HP
Electrics 415/3/60
Weight approximate 30,400 lbs
Dimensions (L x W x H) 14' x 111" x 126"

EQUIPPED WITH:
Rapids in all directions, Pendant control, Assorted tooling and holders
Acu-Rite 3 axis digital readout system, Out riggers

OPTIONS AVAILABLE FOR MACHINE AT EXTRA COST:
Rotary table, Spindle support
