40" X 118" Spark Oil Country, 11" Hole, Front & Rear Chks, 315 RPM, Tpr, in/mm, '13 #22722

Manufacturer

SPARK

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

22722

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #22722

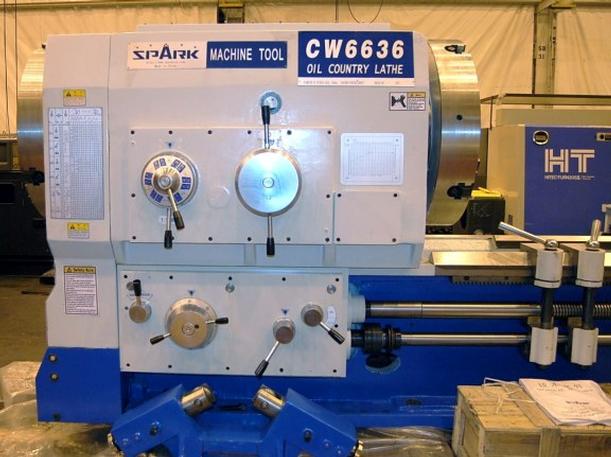

40" x 118" Spark Hollow Spindle Manual Lathe
Model: Oil Country 1000 x 3000
Age: New

11.02" Spindle Bore Diameter

Maximum Swing Over Bedways ............ 39.37"
Maximum Swing Over Carriage ........... 27.55"
Distance Between Centers .............. 118.11"
Maximum Machining Length .............. 110.23"
Spindle Hole Diameter ................. 11.02"
Spindle Speeds (18) ................... 5-315 RPM
Weight Between Centers ................ 8,800 lbs
Crosslide Travel ...................... 23.62"
Topslide Travel ....................... 9.84"
Metric Thread Range (44) .............. 1-120 MM
Whitworth Thread Range (37) ........... 30-1+1/8 TI
Module Threads (46) ................... .5-60 MM
Tailstock Diameter .................... 4.72"
Tailstock Taper ....................... #6 MT
Tailstock Travel ...................... 11.81"
Spindle Motor ......................... 29 HP (22KW)
Bed Width ............................. 29.72"
Machine Dimensions .................... 216" x 67" x 59"
Machine Weight ........................ 14,960 lbs

EQUIPPED WITH:
Pendant Control

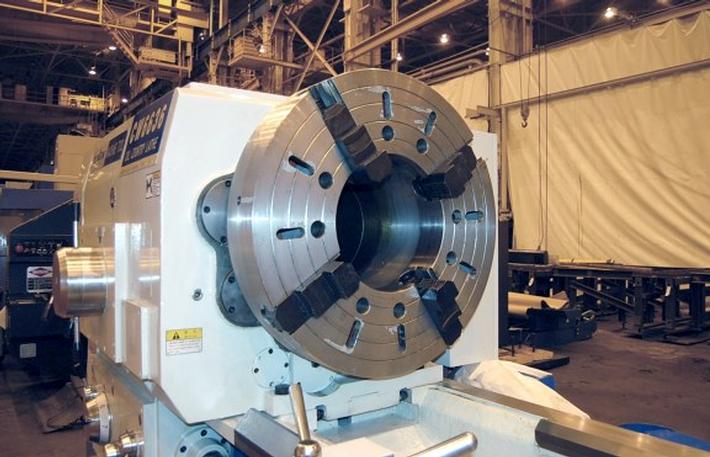

(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted

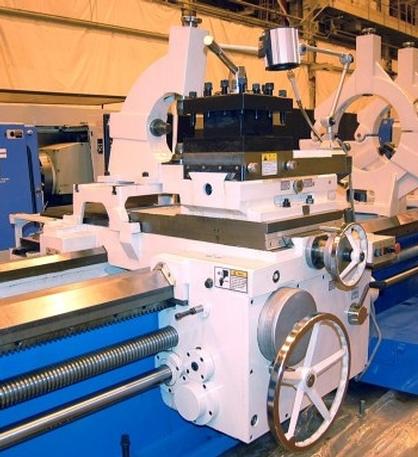

4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
(2) Large Roller Type Steady Rests: 1.96"-18.50"
Follow Rest: 1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
24 HP Spindle Motor 440V/3Ph/60Hz

Machine Sold with 1 Year Parts Warranty
