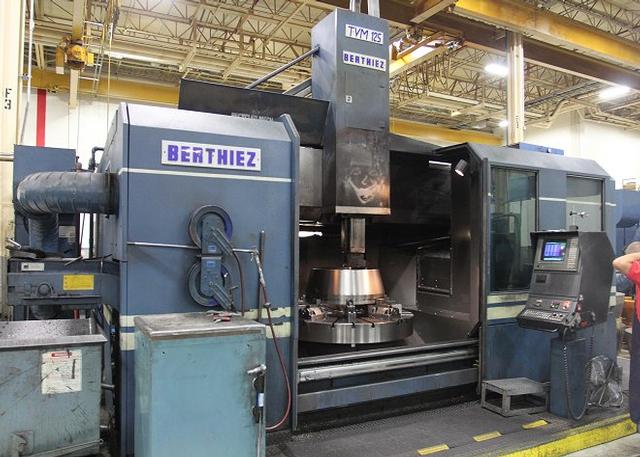

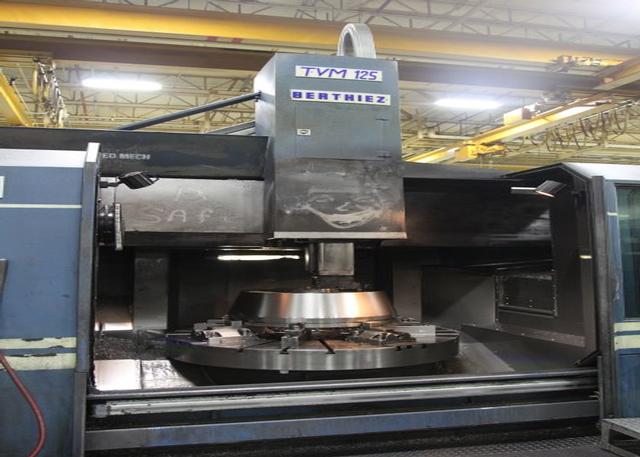

62" Berthiez TVM-125, 75" Swing, 125 HP, Live Milling, Fanuc 15, 1997, 20 ATC, 400 RPM

Manufacturer

BERTHIEZ

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

56990

Model

TVM-125

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

TABLE DIAMETER.......................... 62"
MAXIMUM SWING........................... 75"
HEIGHT UNDER RAIL....................... 43.3"
MAXIMUM MACHINING HEIGHT................ 31.5"
VERTICAL TRAVEL OF RAM.................. 31.5"
TABLE SPEEDS............................ 3.2 TO 400 RPM
SPINDLE DRIVE MOTOR..................... 125 HP
MAXIMUM PART WEIGHT..................... 22,000 LBS
FEED RATE X & Z......................... 0.004 TO 78.7 IPM
RAPID TRAVERSE X & Z.................... 472 IPM
C-AXIS INDEXING......................... 0.001 DEGREES (360,000 POSITIONS)
C-AXIS TRAVERSE......................... 5 RPM

EQUIPPED WITH:

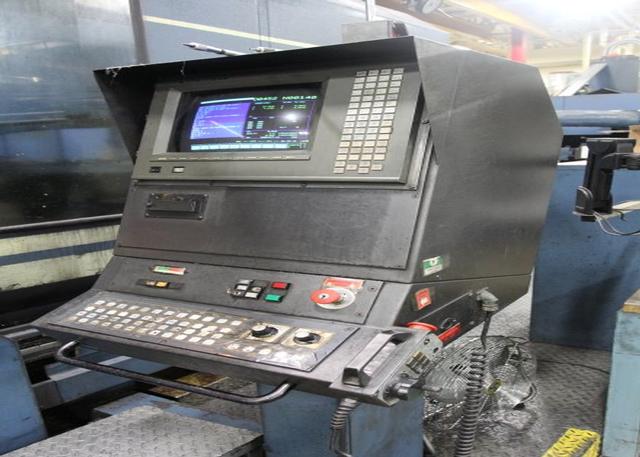

* FANUC 15TB CNC CONTROL
* 20 POSITION AUTOMATIC TOOL CHANGER
* COOLANT THROUGH SPINDLE

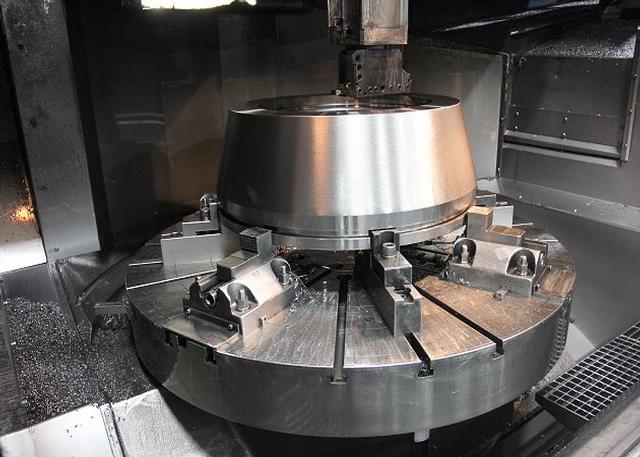

* 62" FACE PLATE WITH 4-JAWS
* (APPROXIMATE 15 TOOL BLOCKS)
* TOOL AND PART PROBES
* CHIP CONVEYOR AND FULL ENCLOSURE

PRICE IS A PRE-REMOVAL PRICE BEFORE 9/28/12
