Ingersoll Tlvg Gantry, AAC, X1200",Y216",Z55", 2500 RPM, 125HP, Fanuc 31i CNC, '12 #21946

Manufacturer

INGERSOLL

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

21946

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #21946

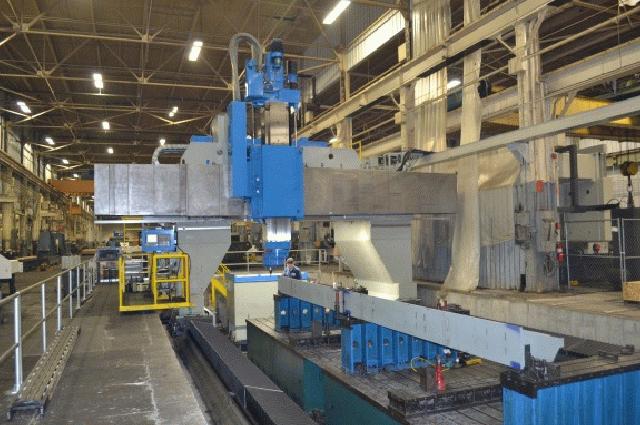

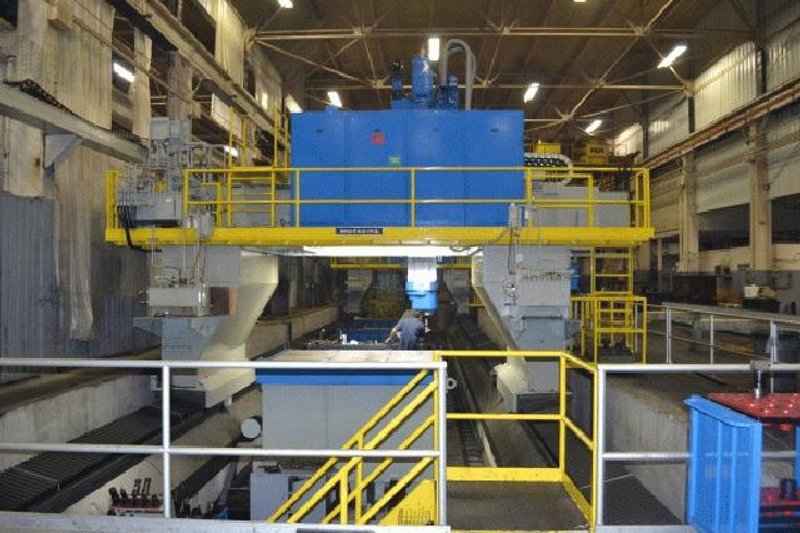

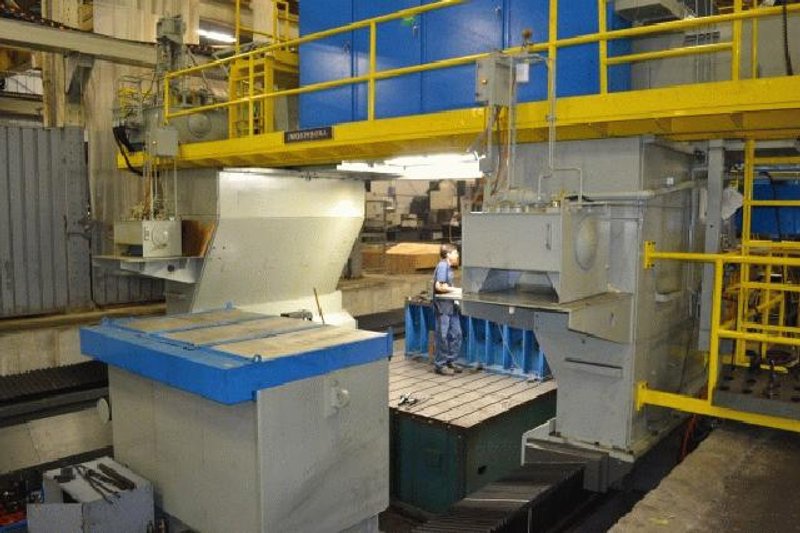

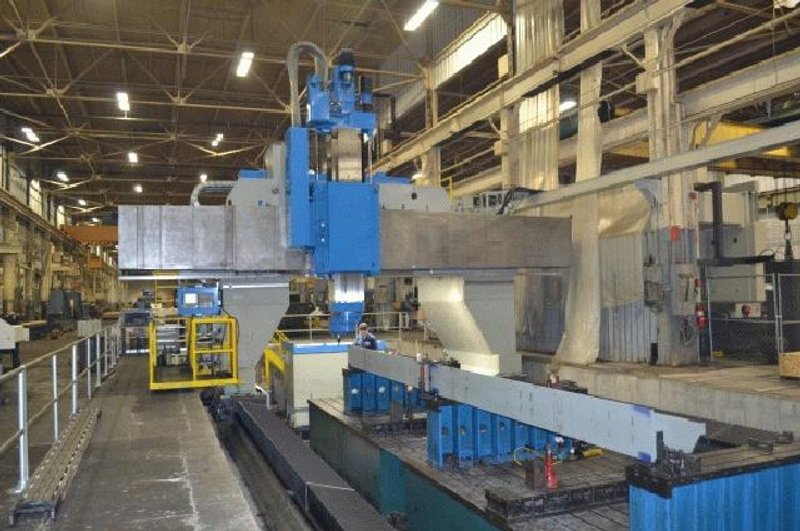

Ingersoll Double Column 5-Axis CNC Gantry Mill
Age: 1990
Model: Master Head Fixed Rail, Travelling Gantry

TRAVELS:
X-Axis, Gantry Travel ................. to 1200"
Y-Axis, Horizontal Head Travel ........ 216"
Z-Axis, Ram Stroke .................... 59.1"
B-Axis, Spindle Swivel, +/- 90 Deg. ... 1 Degree Increments
C-Axis, Head Rotation Cont & Rev ...... 360 Degrees

SPECIFICATIONS:
Table Size, Per Customer Requirement .. On Request
Distance Between Columns .............. 216.53"
Distance Table to Milling Head ........ 179"
Ram Cross Section ..................... 23.62" x 23.62"
Spindle Motor ......................... 125 HP
Spindle Speeds ........................ 0-2500 RPM


EQUIPPED WITH:

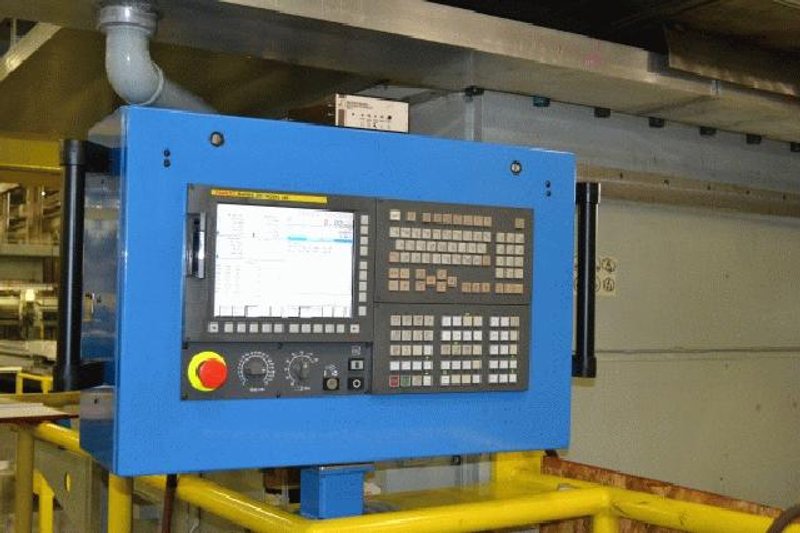

Fanuc 31i CNC Controls, New 2012
Automatic Attachment Changer (AAC)
Masterhead Drum Dual Pinion Rotary C-Axis
Internal Thru Spindle Coolant
External Coolant System

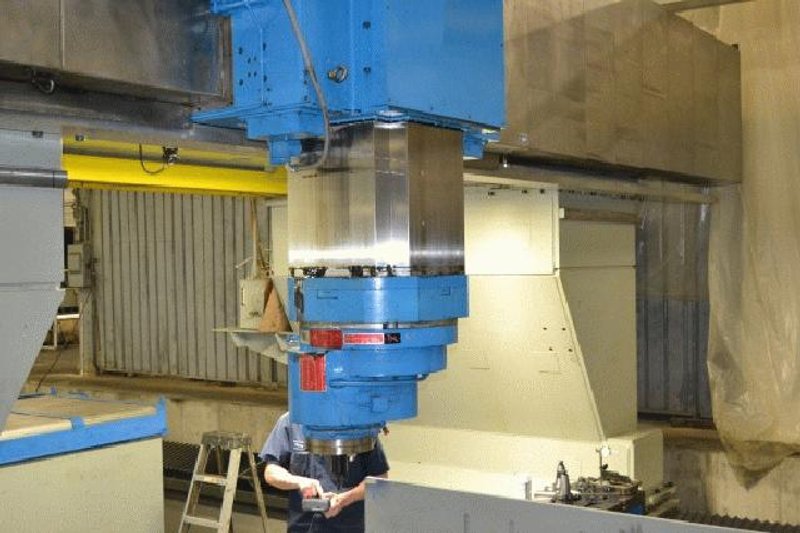

(6) Spindle Units as Follows:
1-Straight Milling Head, Cat 60 Taper
1-Right Angle Milling Head, Cat 60 Taper
1-Swivel Spindle Head, Cat 60 Taper, 4:1 Ratio
1-Swivel Drilling & Tapping Head, Cat 50 Taper 1:1 Ratio
Full Length Dual Chip Conveyors
Way Covers
