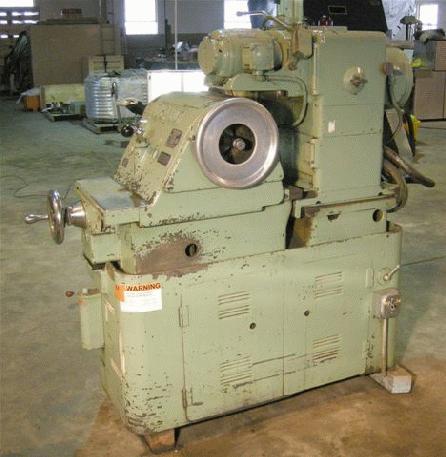

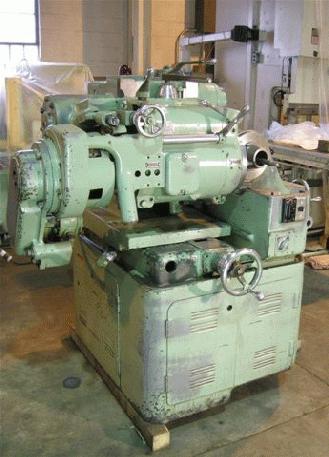

No. 17 Gleason Combination Testing & Lapping Machine, 1941

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR LAPPERS

Stock

None

Model

17

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

B-1140
SPECIFICATIONS:
CAPACITY:
Max offset of gear spindle above or below center of pinion spindle: 3”
Max distance from center of gear spindle to nose of pinion spindle: 10.5”
Min distance from center of gear spindle to nose of pinion spindle: 6.25”
Max distance from center of pinion spindle to nose of gear spindle:
A)With lapping guard cover closed: 6.125”
B)With lapping guard cover open: 10.75”
Min distance from center of pinion spindle to nose of gear spindle: 3.5”
Max diameter of gear with no offset of gear spindle: 16”
(Special guards can be made to take gears over 12”)
DRIVE:
Drive motor: 5 HP @ 1200 rpm
Diameter of drive pulley: 8.375”
MISCELLANEOUS:
Floor space: 60” x 86”
Net weight: 6,000 lbs

Complete with:

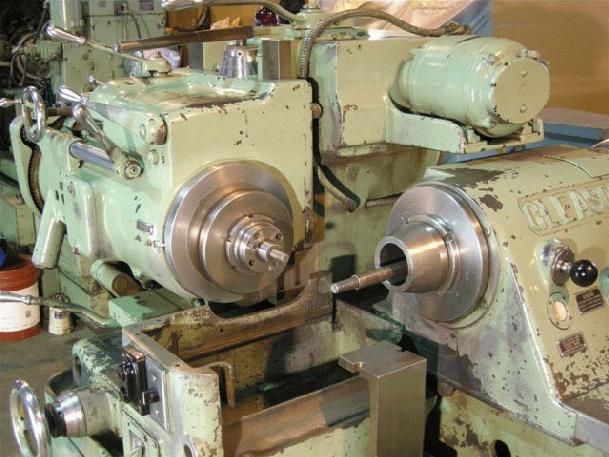

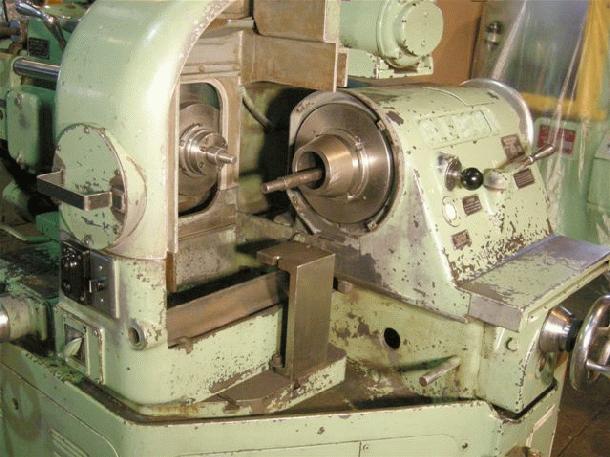

Hydraulic chucking to drive head (crown)
Automatic backlash control
Manual chucking to brake head assembly (pinion)
Hydraulic backlash brake
Lapping compound pump & tank
Fully guarded
Electrics 380, 3, 60
Change gears: (2) 32T; (2) 39T; (2) 42T; (2) 48T; (2) 51T; (2) 58T
