Waldrich VH, X-551", Y-147", 98" BH, 50 HP, 10-1787 RPM, 63"U/R, AB CNC, '98 #19623

Manufacturer

WALDRICH

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

19623

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #19623

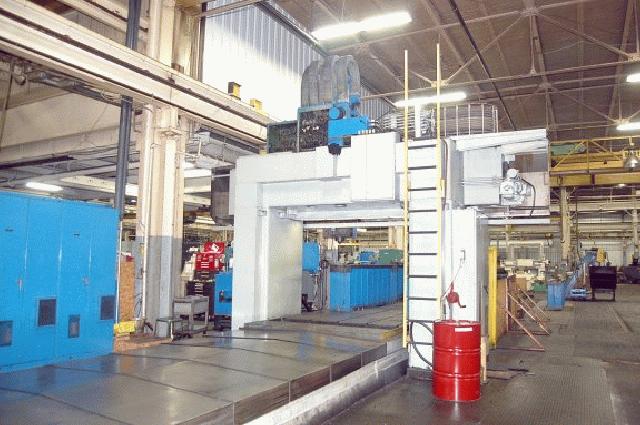

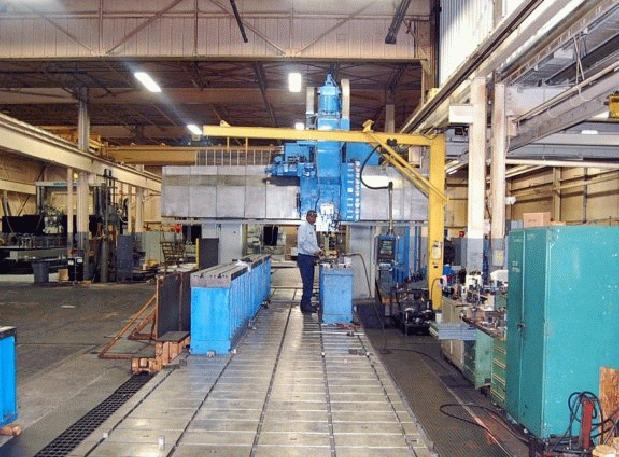

Waldrich Siegen CNC 5-Face Planer Mill
Age: 1982 CNC Retrofit In 1998
Model: V/H-37 Double Housing

Allen Bradley System 9 CNC Control (New 1998)

TRAVELS:
X-Axis Table Travel ................... 539.37"
Y-Axis Head Travel .................... 147.83"
Z-Axis Ram Vertical Travel ............ 39.37"
W-Axis Quill Travel ................... 19.68"
Combined Travel Ram & Quill ........... 59.05"

SPECIFICATIONS:
Distance Spindle To Table Top ......... 62.99"
Distance Between Columns .............. 98.125"
Ram Cross Section ..................... 19.68" x 19.68"
Table Size, Joined .................... 88.6" x 539.4"
Table Size, Front ..................... 88.6" x 393.7"
Table Size, Rear ...................... 88.6" x 118.1"
Spindle Speeds ........................ 10-1787 RPM
Spindle Drive Motor ................... 50 HP
Spindle Taper ......................... #50 CAT
Auto-Indexing of Right Angle Heads .... 4 x 90 Degrees
Reach of Right Angle Heads ............ 19.68"

EQUIPPED WITH:
Allen Bradley System 9 CNC (New 1998)
Heidenhain Scales (New 1998)

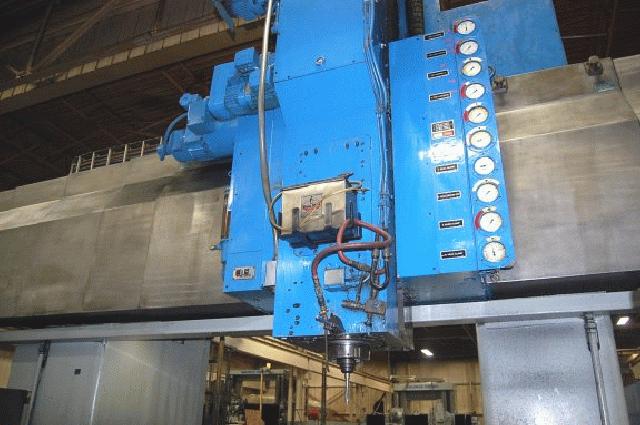

(3) Right Angle Heads with Auto Indexing
5-Face CNC Programming

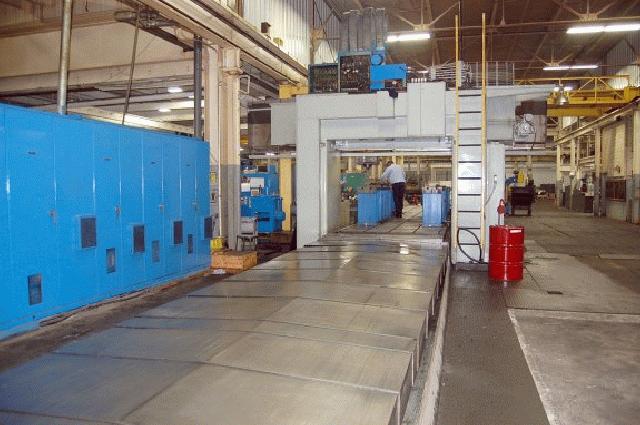

Way Covers

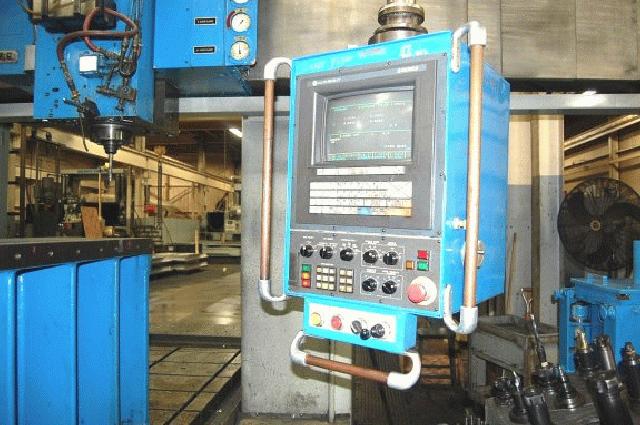

Pendant Controls
Hydrostatic Ways on Bed
Coolant
Full Length Chip Conveyor


Inspect Under Power In Plant!
