40" X 393" Waldrich WSIII40, Crowning, 30" Wheel, Work Rests, Filtration, 1966, #16420

Manufacturer

WALDRICH

Category

Grinding Machines

Type

GRINDERS, ROLL

Stock

16420

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #16420

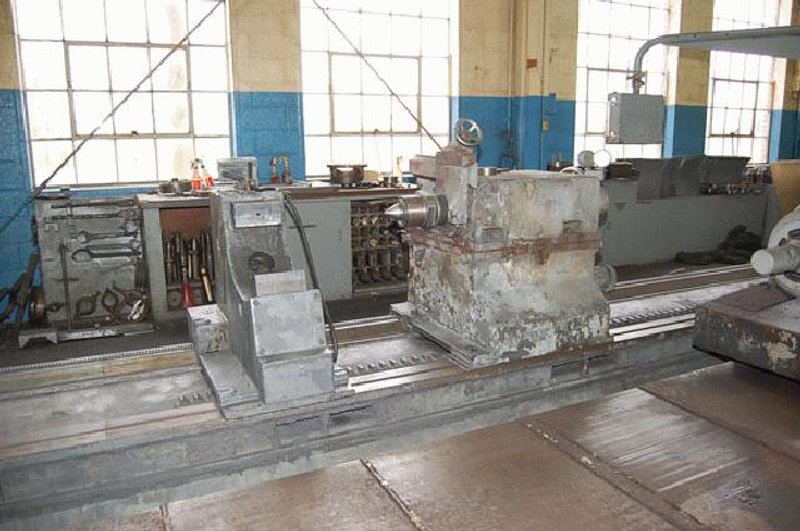

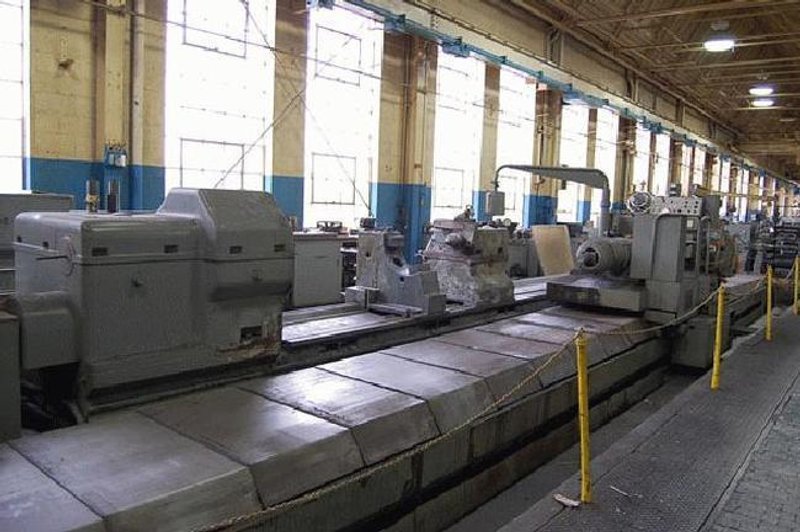

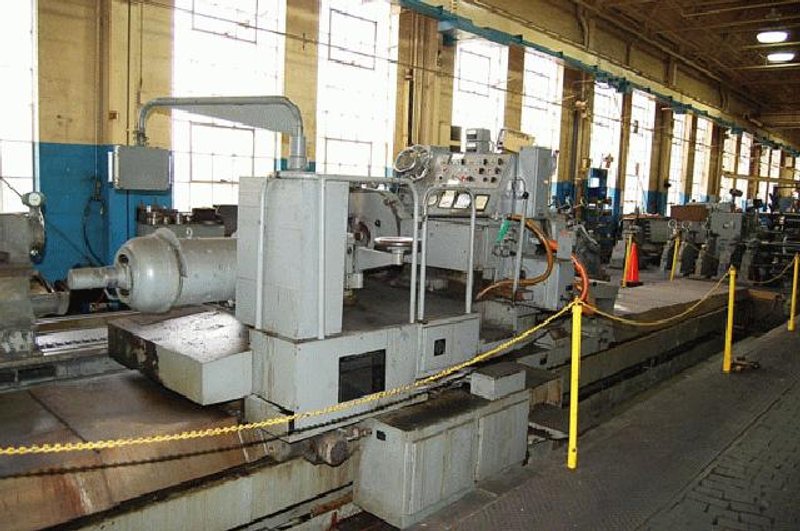

40" x 393" Waldrich Roll Grinder
Model: WSIII40
Age 1966

Maximum Work Diameter ................. 40"
Minimum Work Diameter ................. .75"
Distance Between Centers .............. 393"
Wheel Size (Diameter x Width) ......... 30" x 4"
Wheel Hole Diameter ................... 12"
Workhead Drive Motor .................. 29.48 HP
Headstock Speed Range ................. 10 to 100 RPM
Weight Between Centers ................ 10 Tons
Normal Infeed ......................... 0.0004 - 0.028
Carriage Feed ......................... 2.375 - 118 IPM

EQUIPPED WITH:
Crowning Capability

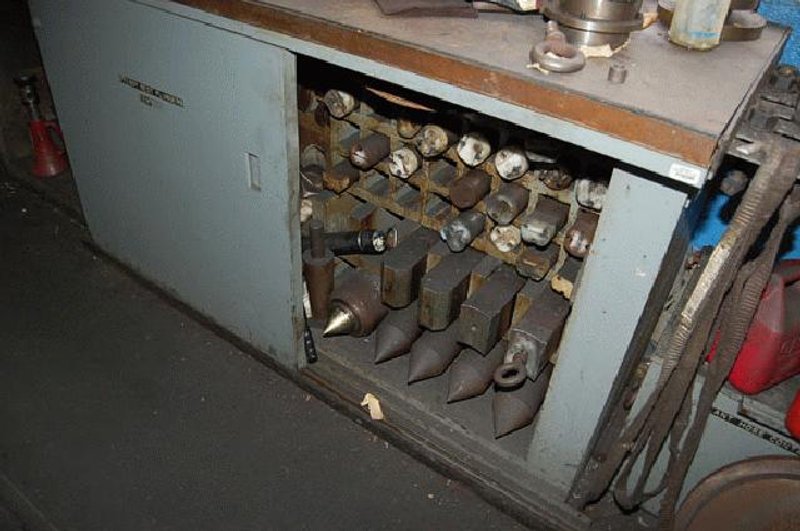

(9) Small Work Rests
(2) Large Work Rests
29" Face Plate
21" 4-Jaw Chuck
Sliding Steel Way Covers on Bed
Barnes Coolant and Filtration System
Magnetic Chip Separator
