5.9" Scharmann Heavycut, X118", Y118", ATC,AAC,60"X90"Pllts,87HP,Smns CNC,'95 #17496

Manufacturer

SCHARMANN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

17496

Model

HEAVYCUT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #17496

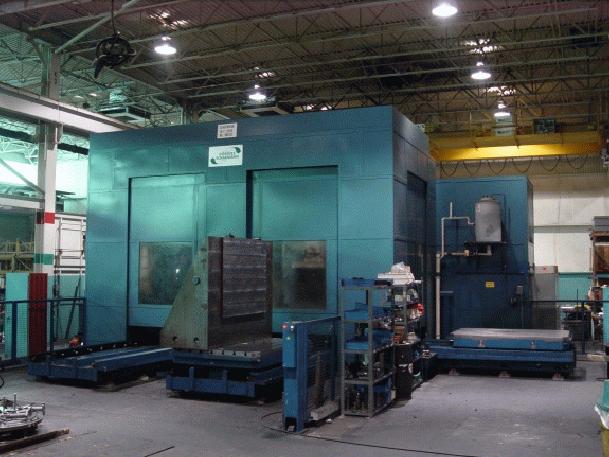

5.9" Scharmann CNC Table Type Horizontal Boring Mill
Age 1995
Model: Heavycut 1Z/TDV3

165-Station Automatic Tool Changer
3-Station Automatic Head Changer
3-Pallet "B-Axis" Shuttle System
Siemens 880M CNC Control

Spindle Diameter .................... 5.9"
Taper In Spindle .................... #50
Vertical Head Travel, Y ............. 118.11"
Table Cross Travel, X ............... 118.11"
Column Infeed Travel, W ............. 78.74"
Ram Travel, Z........................ 31.49"
Spindle Travel, Z-1 ................. 27.55"

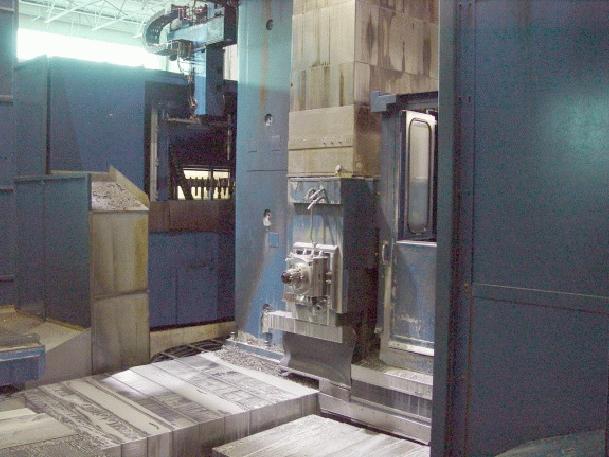

Ram Cross Section ................... 12.79" x 12.79"
Facing Head Travel, U ............... 5.9"
Right Angle Heads ................... 5 Degrees
Rapids .............................. 393 IPM
Pallet Size (3) ..................... 63" x 90.55"
Spindle Speeds ...................... 12-2000 RPM
Pallet Capacity ..................... 26,400 lbs.

EQUIPPED WITH:

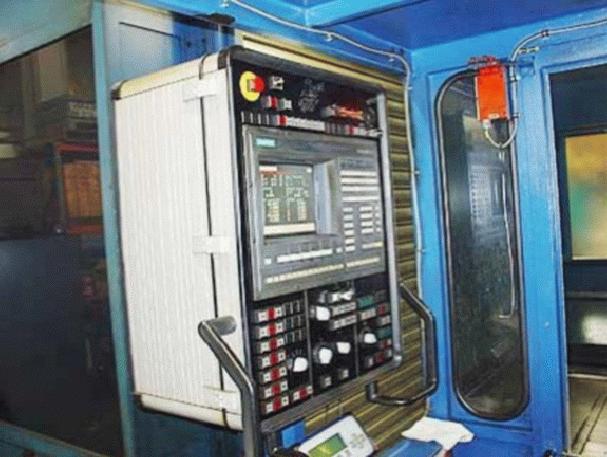

Siemens 880M CNC Control
(3) 63" x 90.55" Pallets "B Axis" Shuttle System
165-Station Automatic Tool Changer

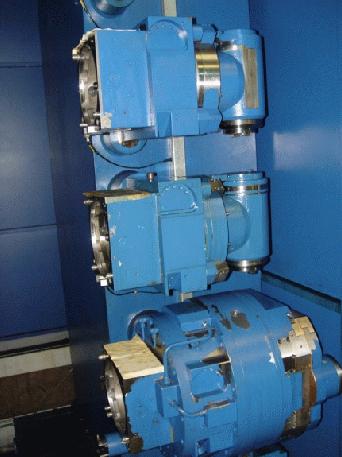

3-Station Automatic Head Changer
2-Right Angle Heads
1-Facing Head w/ 2 #50 Taper Offset Pockets
Thru Spindle Coolant, 435 PSI
Ball Screws With Independant Drives
Full Enclosure, Chip Conveyor & Coolant System
87 HP DC Spindle Drive
